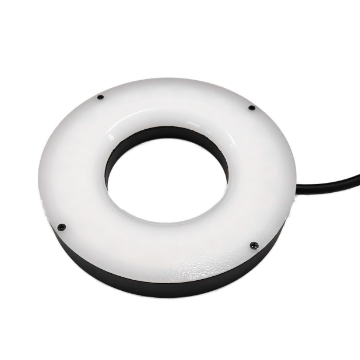

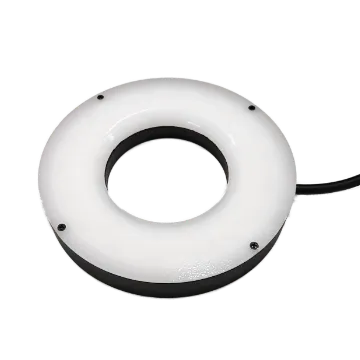

Ring Light MV-LRDS-H-180-60-B2
Adopts high-density LED array design.
Highlights
- Built around a high-density LED array.
- Available in a range of sizes and beam angles.
- Compact housing with efficient heat dissipation.
- Includes a diffuser plate for more uniform lighting.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Ring Light MV-LRDS-H-180-60-B2 is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LRDS-H-180-60-B2. Key data: color Blue, power 33.5 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Available in a range of sizes and beam angles. Compact housing with efficient heat dissipation. Includes a diffuser plate for more uniform lighting.
Ring Light MV-LRDS-H-180-60-B2 (MV-LRDS-H-180-60-B2) at a glance: Blue light, 460 nm wavelength, 33.5 W power, Φ180 mm × 18 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 570 g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Built around a high-density LED array. — Available in a range of sizes and beam angles. — Compact housing with efficient heat dissipation. — Includes a diffuser plate for more uniform lighting.
Specifications
| Product Model | MV-LRDS-H-180-60-B2 |
|---|---|
| Type | MV-LRDS-H-180-60-B2 |
| Color | Blue |
| Center Illuminance | ≥3500 Lux@WD=100 mm |
| Best Working Distance | 70 ~ 90 mm |
| Wavelength | 460 nm |
| Color Temperature | / |
| Power | 33.5 W |
| Connector Type | SMR-03V-B |
| Dimension | Φ180 mm × 18 mm |
| Bore Dimension | Φ100 mm |
| Emitting Area Length | Φ167 mm |
| LED Rows | 2 |
| Weight | 570 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
| Irradiation Angle | 60° |
| Outer Dimension | Φ180 mm |
