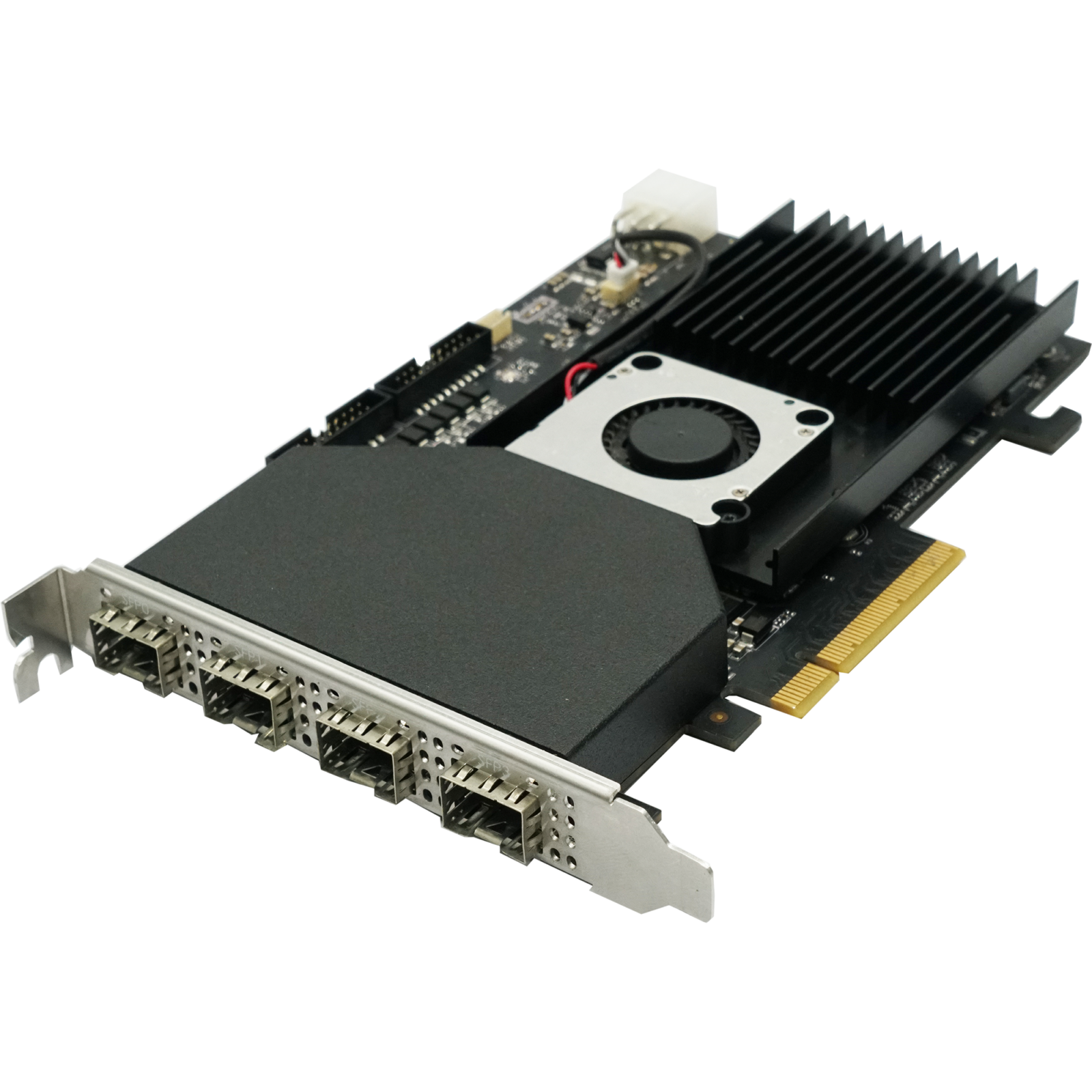

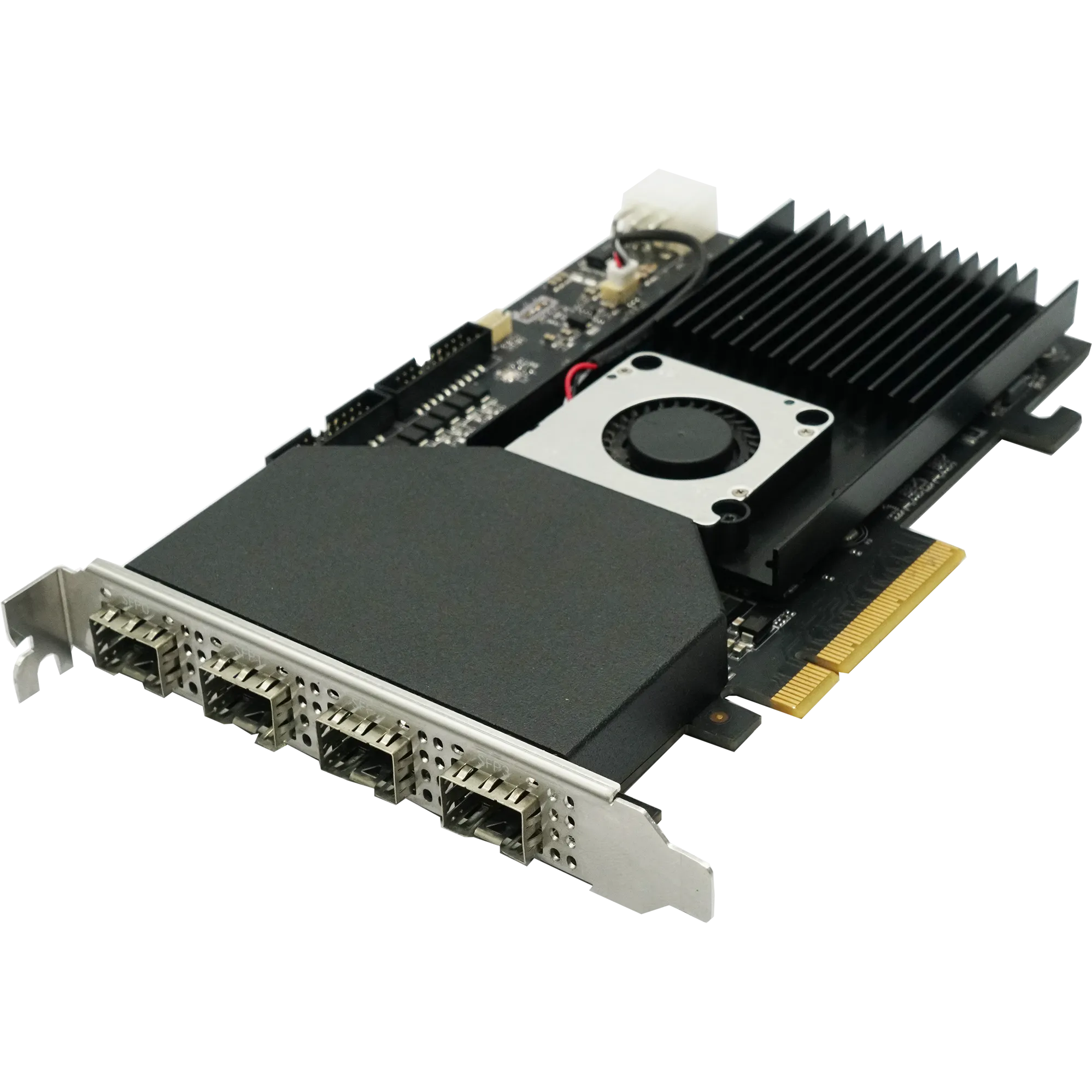

Quad 10Gbps SFP Frame Grabber
Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
- Supports GigE Vision V2.0 protocol with each channel at up to 10 Gbps.
- Indicators show frame-grabber status in real time.
- Multiple I/O connectors handle input and output.
- Includes an SDK for custom development.
- Complies with the GenICam standard.
Camera Solutions
Quad 10Gbps SFP Frame Grabber is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-GS1004. Key data: certification CE, KC. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Indicators show frame-grabber status in real time. Multiple I/O connectors handle input and output. Includes an SDK for custom development. Complies with the GenICam standard.
Product Highlights
Supports GigE Vision V2.0 protocol with each channel at up to 10 Gbps. — Indicators show frame-grabber status in real time. — Multiple I/O connectors handle input and output. — Includes an SDK for custom development. — Complies with the GenICam standard.
Specifications
| Product Model | MV-GS1004 |
|---|---|
| Type | Quad 10Gbps SFP Frame Grabber |
| Certification | CE, KC |
| Interface | SFP × 4 |
| On Board Memory | 2 GB DDR3-RAM |
| Interconnect | PCI-E gen2 × 8 |
| Delivery Bandwidth | 3900 MB/s (max. transmission bandwidth) 3350 MB/s (sustained transmission bandwidth) |
| Indicator | 1 |
| Standard | GigE Vision V2.0 |
| Camera Type Supported | 10 GigE industrial camera |
| Camera Quantity Supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera Connection Speed | 10 Gbps |
| Stream | 4 |
| Stream Indicator | 4 pairs |
| Pixel Format | Mono 8/10/10p/12/12p Bayer 8/10/10p/12/12p YUV422Packed, YUV422_YUYV_Packed |
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | Female header |
| Power Consumption | Typ. 20 W |
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F) Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
| Humidity | 10% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
