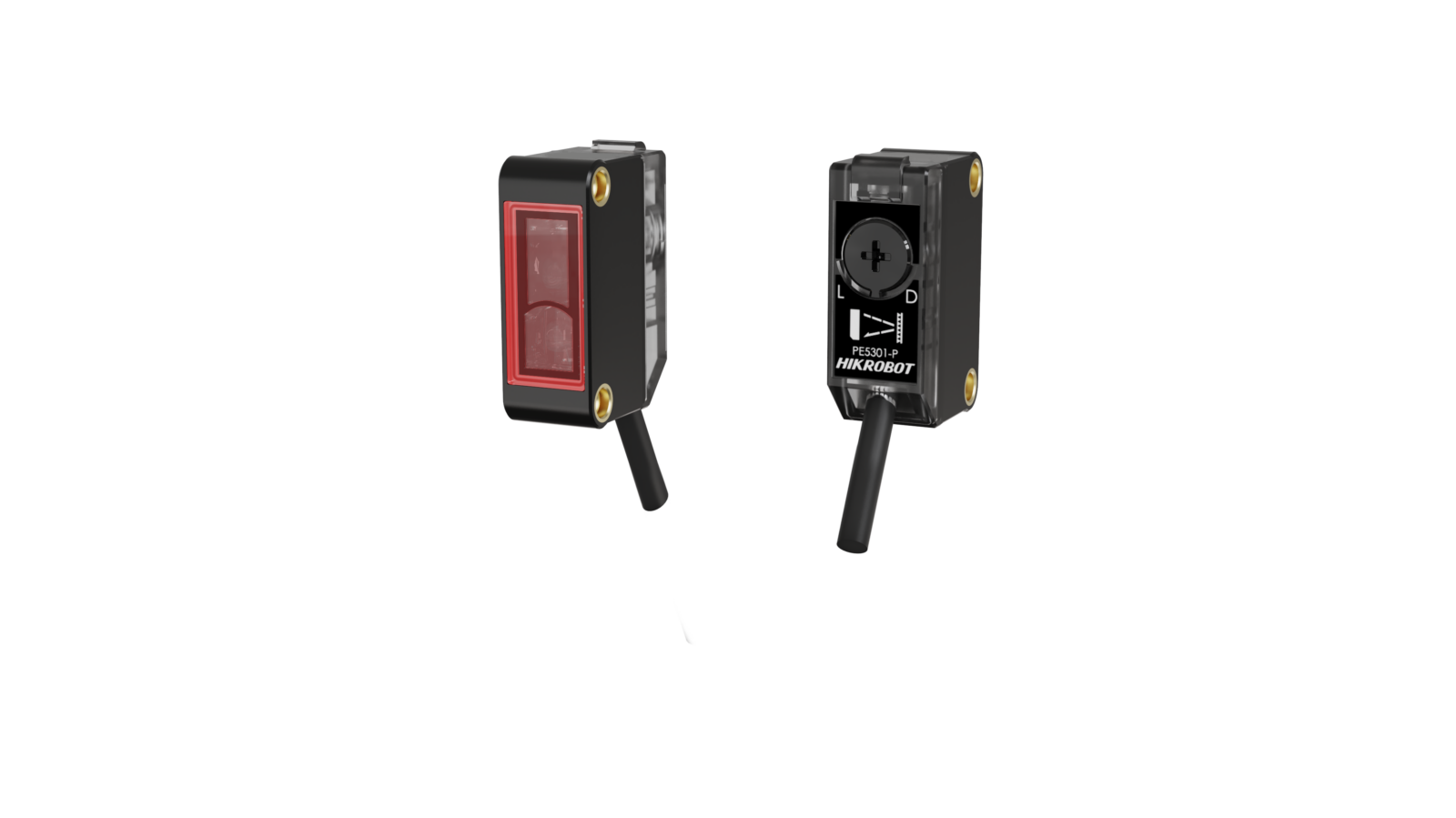

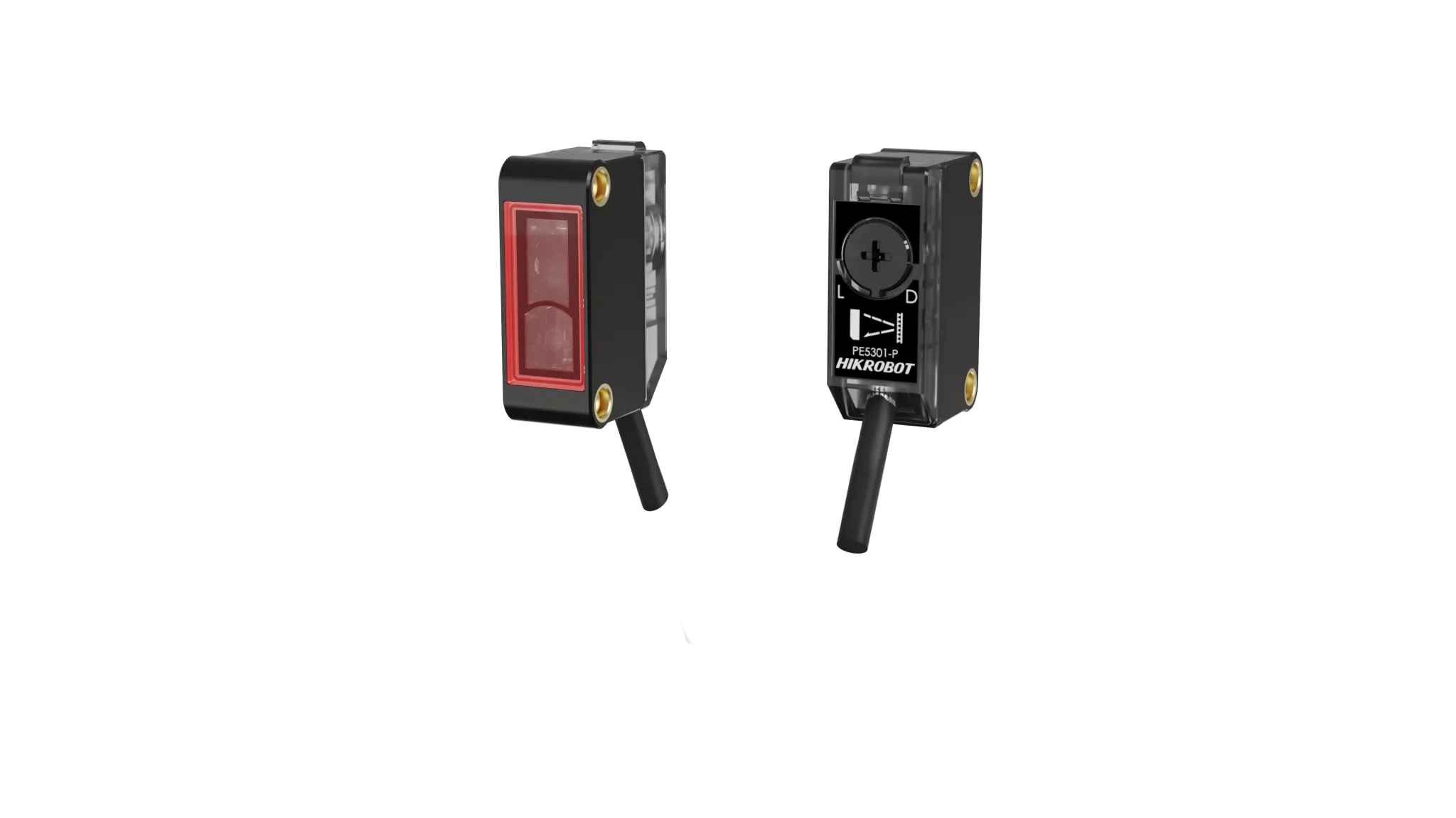

Retro-reflective sensor(4m,Red LED,Polarizing filter,NPN)
Provides a clear red spot, and contains polarizing filters.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Anti-interference design copes with complex lighting. Immune to interference from highly reflective objects.
Product Highlights
Clear red-spot aimer with polarising filter. — Anti-interference design copes with complex lighting. — Immune to interference from highly reflective objects.
Specifications
| Product Model | MV-PE5301 |
|---|---|
| Type | Retro-reflective sensor(4m,Red LED,Polarizing filter,NPN) |
| Certification | CE, RoHS |
| Indicator | Operation indicator: orange Stability indicator: green |
| Dimension | 20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2") |
| Temperature | Working temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 35% RH to 85% RH |
| Weight | Approx. 45 g (0.1 lb.) (including cable) |
| Detecting Distance | 0.1 m to 4 m |
| Sensing Target | Opaque object, semi-transparent object, and mirror above Φ50 mm |
| Output | NPN (supports light-on/dark-on switch) |
| Light Source | Red LED 650 nm |
| Response Time | ≤ 500 μs |
| Repeatability Perpendicular To Sensing Axis | ≤ 0.5 mm |
| Supply Voltage | 12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less |
| Residual Voltage | ≤ 2 VDC |
| Operating Current | ≤ 20 mA |
| Max Sink Source Current | ≤ 100 mA |
| Circuit Protection | Reverse polarity protection, overcurrent protection, and overvoltage protection |
| Insulation Resistance | 20 MΩ or more (between the terminal block for power supply and the housing) |
| Withstand Voltage | 1000 VAC, 1 min (between the terminal block for power supply and the housing) |
| Ambient Illumination | Sunlight: < 10000 lux Incandescent lamp: < 3000 lux |
| Ingress Protection | IP67 |
| Material | Housing: polycarbonate Lens: acrylic |
| Connecting Method | Cable lead-out (standard length: 2 m, 78.7") |
| Vibration Resistance | 10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions |
| Shock Resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions |
