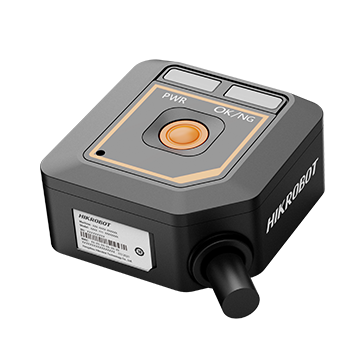

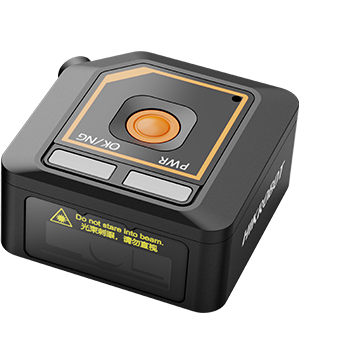

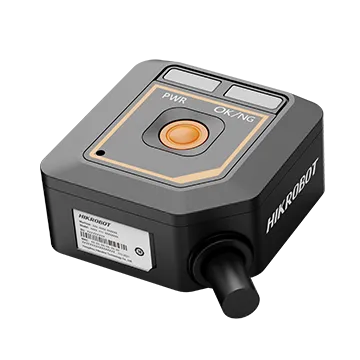

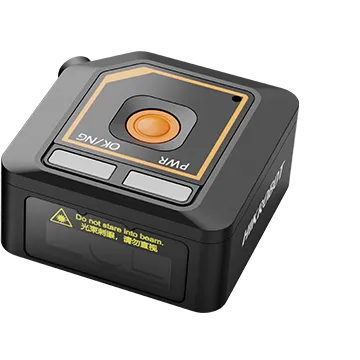

SC1000 series Vision Sensor，0.3MP，Color，3mm focal length，focus 120mm
Adopts small-size design for all types of machines and compact workstations.
Camera Solutions
Beschreibung
An embedded hardware platform drives high-speed image processing. Built-in positioning and measurement algorithms detect object presence, count, and location. Integrated LED aimer for clear field-of-view alignment. Several indicators display device status. Speaks multiple protocols: Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial.
Product Highlights
Small-format design suits all machine types and compact workstations. — An embedded hardware platform drives high-speed image processing. — Built-in positioning and measurement algorithms detect object presence, count, and location. — Integrated LED aimer for clear field-of-view alignment. — Several indicators display device status. — Speaks multiple protocols: Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial.
Specifications
| Product Model | MV-SC1003C-03S-WBN-NR |
|---|---|
| Type | SC1000 series Vision Sensor，0.3MP，Color，3mm focal length，focus 120mm |
| Vision Tool | Measurement: P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, line angle, color measurement, and color size Existence: Anomaly judge, spot existence, edge existence, contour existence, circle existence, and line existence Count: Spot count, edge count, contour count, and color count Recognition: Category recognition, classification registration, and color contrast Logic: Calculator, logic judge, condition judge, combination judge, and format output Location: Fixture |
| Solution Capacity | Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored. |
| Communication Protocol | Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.74 μm × 3.74 μm |
| Sensor Size | 1/6" |
| Resolution | 640 × 480 |
| Max Frame Rate | 15 fps |
| Gain | 1 dB to 23 dB |
| Exposure Time | 60 μs to 7000 μs |
| Pixel Format | Mono 8, RGB 8 |
| Mono Color | Color |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | Green terminal provides power, digital I/O, and serial port, including input signal × 1 (Line 0), output signal × 1 (Line 1), and RS-232 × 1. Supports triggering device via pressing top trigger button. |
| Power Supply | 12 VDC to 24 VDC |
| Power Consumption | Avg. 1.5 W @ 12 VDC Max. 3 W @ 12 VDC |
| Lens Mount | M5.8-mount |
| Focal Length | 3.1 mm |
| Working Distance | 120 mm |
| Lens Cap | Transparent lens cap |
| Light Source | White LED |
| Aiming System | 1 LED |
| Indicator | Power indicator (PWR), result indicator (OK/NG) |
| Dimension | 38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7") |
| Weight | Approx. 40 g (0.1 lb.) without cable |
| Ingress Protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client Software | SCMVS |
| Certification | CE, KC |
