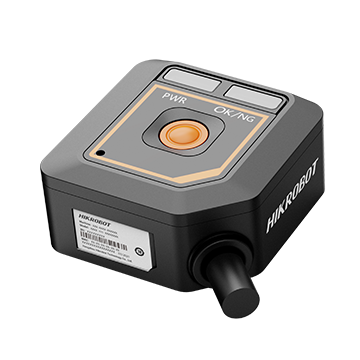

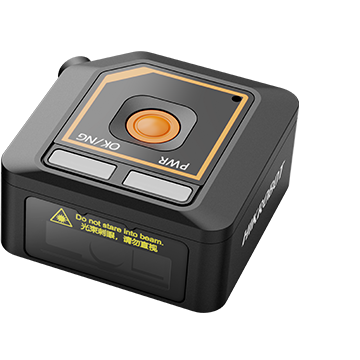

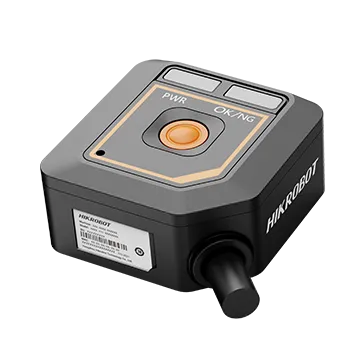

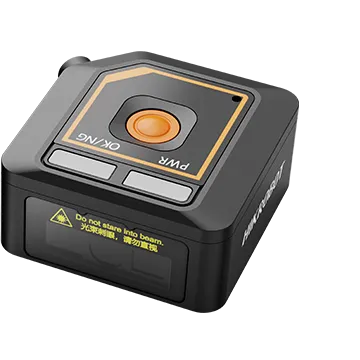

SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 240mm

Name: SC1000 series Vision Sensor, 0.3MP, Mono, 3mm focal length, focus 240mm
Brand: HIKROBOT
SKU: MV-SC1003M-03S-WBN-SR

Adopts small-size design for all types of machines and compact workstations.

Send inquiry

Download datasheet (PDF)

Highlights

Small-format design suits all machine types and compact workstations.
An embedded hardware platform drives high-speed image processing.
Built-in positioning and measurement algorithms detect object presence, count, and location.
Integrated LED aimer for clear field-of-view alignment.
Several indicators display device status.
Speaks multiple protocols: Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-SC1003M-03S-WBN-SR Category: Smart Camera

SC1000 series Vision Sensor, 0.3MP, Mono, 3mm focal length, focus 240mm is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC1003M-03S-WBN-SR. Key data: resolution 640 × 480, max frame rate 15 fps, data interface Fast Ethernet (100 Mbit/s). Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

SC1000 series Vision Sensor, 0.3MP, Mono, 3mm focal length, focus 120mm (MV-SC1003M-03S-WBN-NR)

Description

Description

An embedded hardware platform drives high-speed image processing. Built-in positioning and measurement algorithms detect object presence, count, and location. Integrated LED aimer for clear field-of-view alignment. Several indicators display device status. Speaks multiple protocols: Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial.

SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 240mm (MV-SC1003M-03S-WBN-SR) at a glance: 640 × 480 resolution, CMOS, global shutter sensor, 1/6" sensor format, up to 15 fps, Mono output, Fast Ethernet (100 Mbit/s) interface, Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client protocols and 38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Small-format design suits all machine types and compact workstations. — An embedded hardware platform drives high-speed image processing. — Built-in positioning and measurement algorithms detect object presence, count, and location. — Integrated LED aimer for clear field-of-view alignment. — Several indicators display device status. — Speaks multiple protocols: Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and Serial.

Specifications

Product Model	MV-SC1003M-03S-WBN-SR
Type	SC1000 series Vision Sensor，0.3MP，Mono，3mm focal length，focus 240mm
Vision Tool	Measurement: P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, circle existence, and line existence Count: Spot count, edge count, and contour count Recognition: Category recognition, and classification registration Logic: Calculator, logic judge, condition judge, combination judge, and format output Location: Fixture
Solution Capacity	Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored.
Communication Protocol	Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV
Sensor Type	CMOS, global shutter
Pixel Size	3.74 μm × 3.74 μm
Sensor Size	1/6"
Resolution	640 × 480
Max Frame Rate	15 fps
Gain	1 dB to 23 dB
Exposure Time	60 μs to 7000 μs
Pixel Format	Mono 8
Mono Color	Mono
Data Interface	Fast Ethernet (100 Mbit/s)
Digital I/O	Green terminal provides power, digital I/O, and serial port, including input signal × 1 (Line 0), output signal × 1 (Line 1), and RS-232 × 1. Supports triggering device via pressing top trigger button.
Power Supply	12 VDC to 24 VDC
Power Consumption	Avg. 1.5 W @ 12 VDC Max. 3 W @ 12 VDC
Lens Mount	M5.8-mount
Focal Length	3.1 mm
Working Distance	240 mm
Lens Cap	Transparent lens cap
Light Source	White LED
Aiming System	1 LED
Indicator	Power indicator (PWR), result indicator (OK/NG)
Dimension	38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7")
Weight	Approx. 40 g (0.09 lb.) without cable
Ingress Protection	IP54
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration Resistance	Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock Resistance	Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Client Software	SCMVS
Certification	CE, KC
