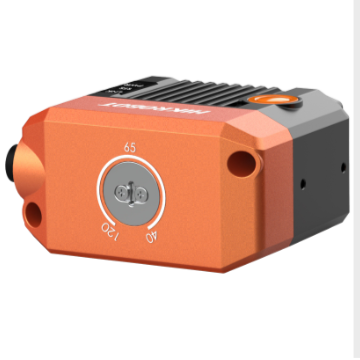

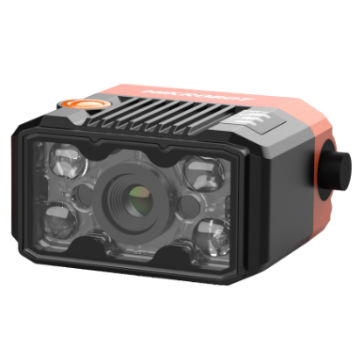

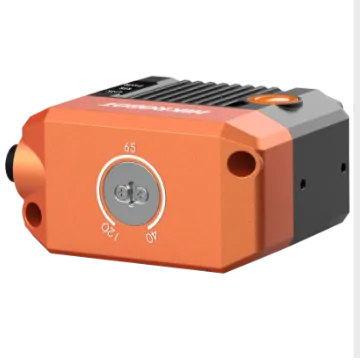

SC2000E series mini vision sensor，1.6MP，Mono，6mm focal length
Adopts embedded hardware platform for high-speed image processing.
Camera Solutions
Beschreibung
Built-in positioning and measurement algorithms handle counting, presence, and measurement. Several IO interfaces carry input and output signals. Multiple indicators show device status. An integrated light source keeps brightness uniform across the field. Speaks RS-232, TCP, UDP, FTP, Modbus, PROFINET, and EtherNet/IP.
Product Highlights
An embedded hardware platform drives high-speed image processing. — Built-in positioning and measurement algorithms handle counting, presence, and measurement. — Several IO interfaces carry input and output signals. — Multiple indicators show device status. — An integrated light source keeps brightness uniform across the field. — Speaks RS-232, TCP, UDP, FTP, Modbus, PROFINET, and EtherNet/IP.
Specifications
| Product Model | MV-SC2016EM-06S-WBN-Mini |
|---|---|
| Type | SC2000E series mini vision sensor，1.6MP，Mono，6mm focal length |
| Vision Tool | Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence Count: Spot count, edge count, contour count, and pattern count Recognition: Category recognition, classification registration, and OCR Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison Location: Fixture |
| Solution Capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication Protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max Frame Rate | 60 fps |
| Gain | 0 dB to 15 dB |
| Exposure Time | 16 μs to 1 sec |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Data Interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | Ethernet female connector supports Ethernet communication. 8-pin green terminal provides power, digital I/O, and serial port, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON) Output signals support NPN only. |
| Power Supply | 12 VDC to 24 VDC |
| Power Consumption | Avg. 4 W @ 24 VDC Max. 11 W @ 24 VDC |
| Lens Mount | M10-mount, adjusting focus manually supported |
| Focal Length | 6.72 mm |
| Lens Cap | Transparent lens cap |
| Light Source | White LED lamp × 4 |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client Software | SCMVS |
| Certification | CE, KC |
