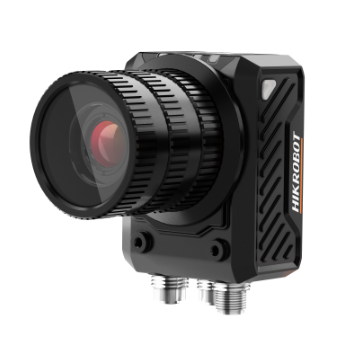

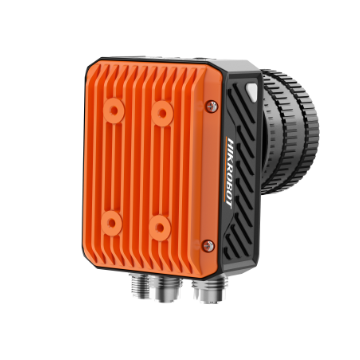

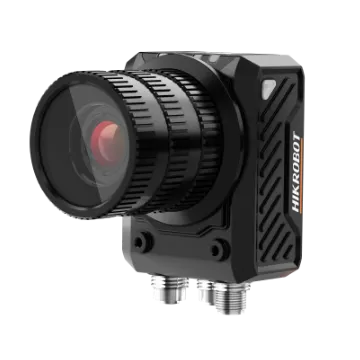

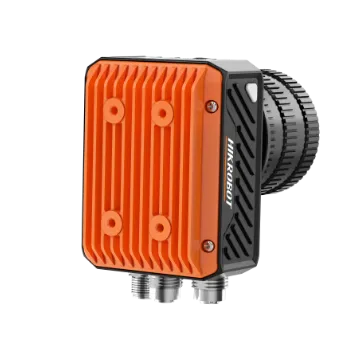

SC6000 series Smart Camera，25MP，Color，C-Mount
Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- AI deep learning handles OCR, object recognition, defect detection, and more.
- Integrated vision functions with more than 140 algorithms.
- Multiple interfaces with multi-channel I/O, light-source, and display support.
- A high-performance CPU delivers fast, efficient processing.
- Supports a range of communication protocols.
- Status indicators simplify debugging and maintenance.
- Rated IP67 against dust and water.
Camera Solutions
SC6000 series Smart Camera, 25MP, Color, C-Mount is a smart camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-SC6250C-00C-NNN. Key data: resolution 4608 × 5120, max frame rate 16 fps, data interface Gigabit Ethernet (1000 Mbit/s), memory 16 GB. Typical use is stand-alone inspection and identification directly at the line. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Integrated vision functions with more than 140 algorithms. Multiple interfaces with multi-channel I/O, light-source, and display support. A high-performance CPU delivers fast, efficient processing. Supports a range of communication protocols. Status indicators simplify debugging and maintenance. Rated IP67 against dust and water.
Product Highlights
AI deep learning handles OCR, object recognition, defect detection, and more. — Integrated vision functions with more than 140 algorithms. — Multiple interfaces with multi-channel I/O, light-source, and display support. — A high-performance CPU delivers fast, efficient processing. — Supports a range of communication protocols. — Status indicators simplify debugging and maintenance. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-SC6250C-00C-NNN |
|---|---|
| Type | SC6000 series Smart Camera，25MP，Color，C-Mount |
| Communication Protocol | TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 4608 × 5120 |
| Max Frame Rate | 16 fps |
| Gain | 10 dB to 25 dB |
| Exposure Time | 16 μs to 1 sec |
| Pixel Format | Mono 8, RGB 8 |
| Mono Color | Color |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1 |
| Power Supply | 24 VDC |
| Power Consumption | Avg. 15 W @ 24 VDC (without external light source) Avg. 45 W @ 24 VDC (with external light source) Max. 20 W @ 24 VDC (without external light source) Max. 50 W @ 24 VDC (with external light source) |
| Lens Mount | C-mount |
| Lens Cap | Transparent lens cap |
| Light Source | Not included |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) |
| Dimension | 116.3 mm × 68.6 mm × 101.8 mm (4.6" × 2.7" × 4.0") |
| Weight | Approx. 530 g (1.2 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration Resistance | Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)* |
| Shock Resistance | Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)* |
| Certification | CE, KC |
| Function Module | Vision Master Platform (include deep learning module) |
| Memory | 16 GB |
| Storage | 64 GB |
| Extended Interface | 17-pin M12 connector provides VGA × 1 and USB host × 1 |
