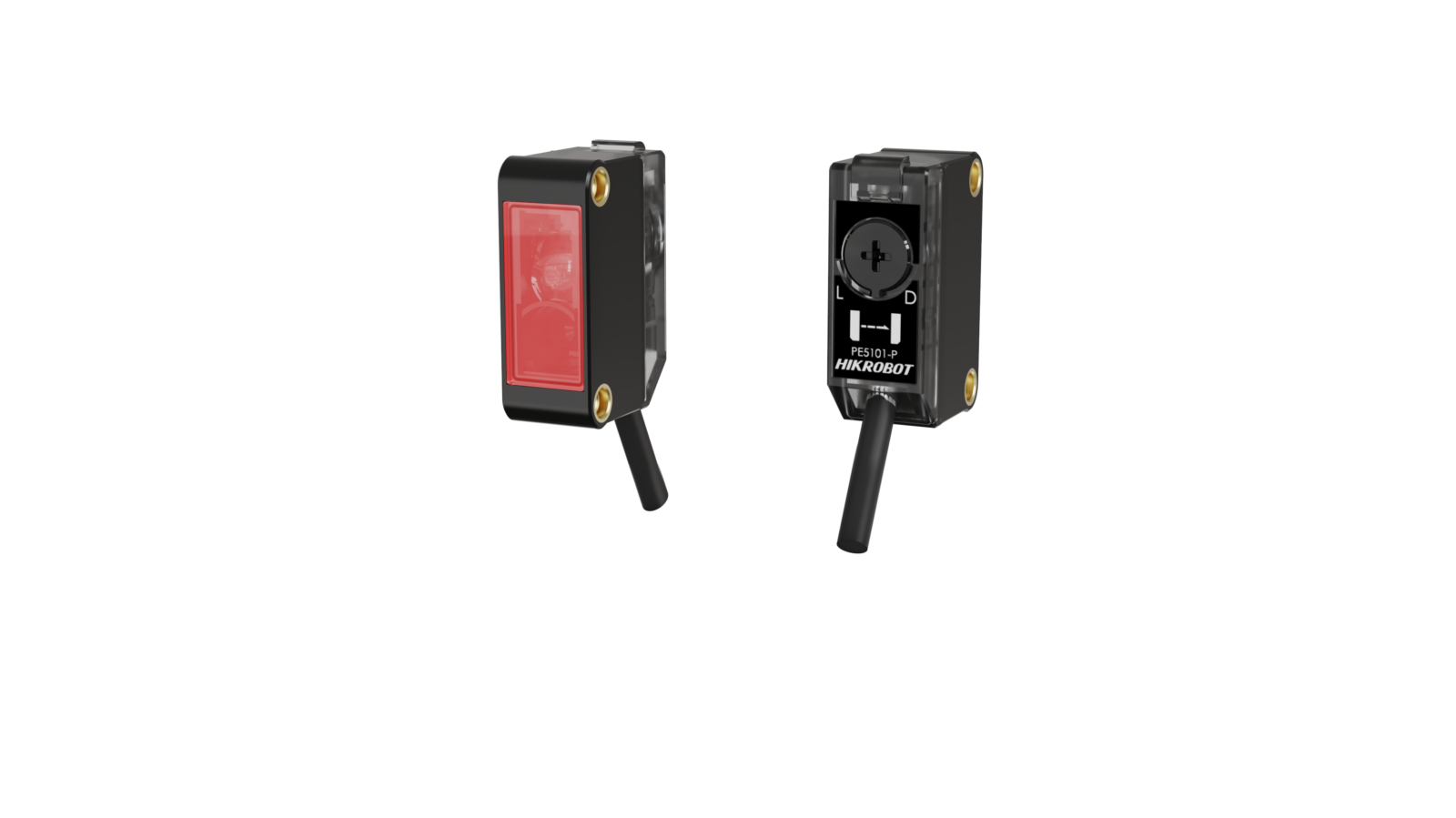

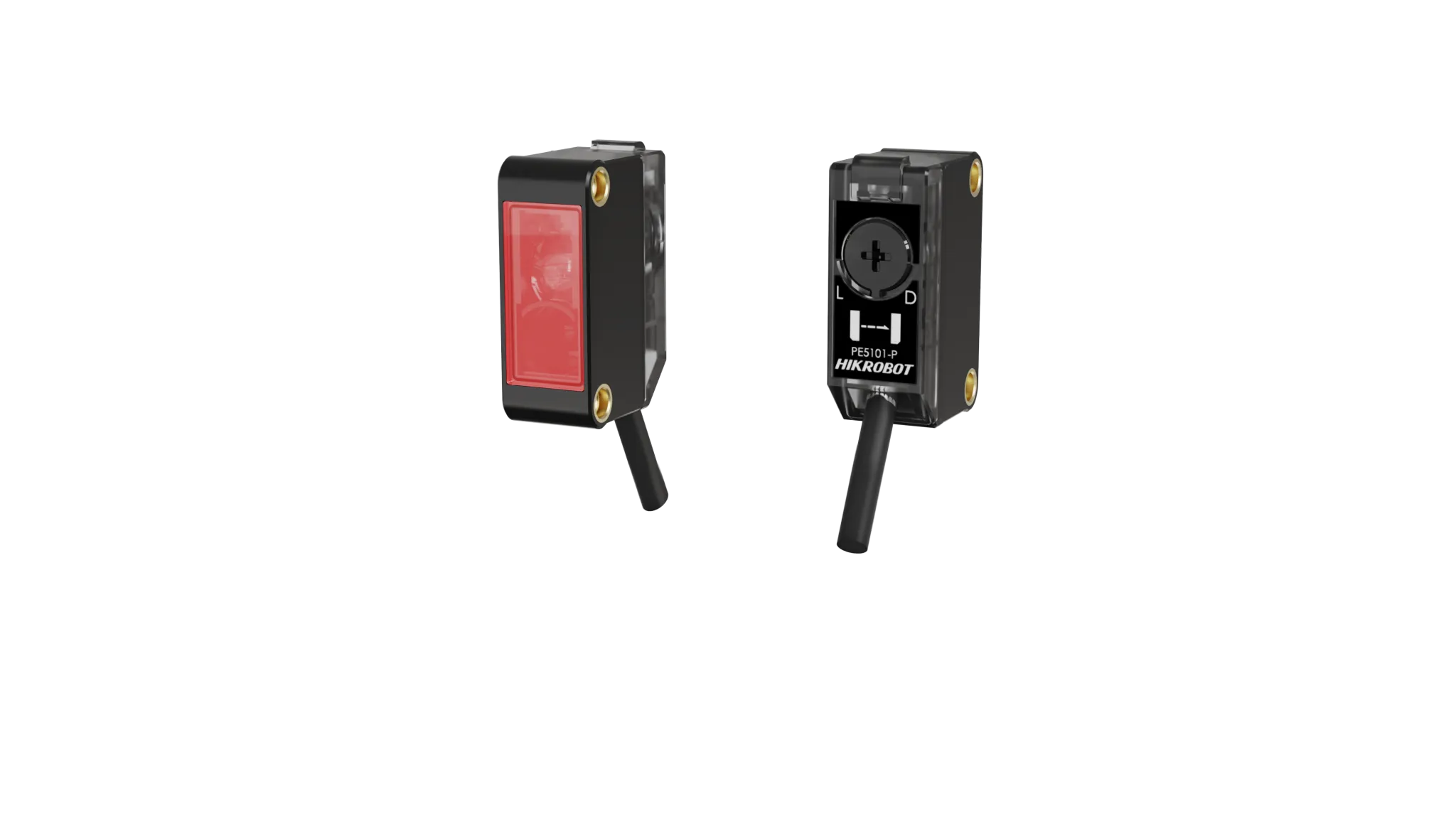

Through-beam sensor(15m,Red LED,NPN)
Provides a large red spot for ease of alignment.
Highlights
- Large red-spot aimer for easy alignment.
- Unaffected by direct sunlight with strong anti-interference capability.
- Ready to use with no adjustment required.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Through-beam sensor(15m,Red LED,NPN) is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-PE5101. Key data: certification CE, RoHS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Unaffected by direct sunlight with strong anti-interference capability. Ready to use with no adjustment required.
Product Highlights
Large red-spot aimer for easy alignment. — Unaffected by direct sunlight with strong anti-interference capability. — Ready to use with no adjustment required.
Specifications
| Product Model | MV-PE5101 |
|---|---|
| Type | Through-beam sensor(15m,Red LED,NPN) |
| Certification | CE, RoHS |
| Indicator | Operation indicator: orange (receiver) Stability indicator: green (receiver) Power indicator: orange (transmitter) |
| Dimension | 20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2") |
| Temperature | Working temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 35% RH to 85% RH |
| Weight | Transmitter: approx. 45 g (0.1 lb.) (including cable) Receiver: approx. 45 g (0.1 lb.) (including cable) |
| Detecting Distance | 15 m |
| Sensing Target | Opaque object above Φ15 mm |
| Output | NPN-NO/NC (supports light-on/dark-on switch) |
| Light Source | Red LED 660 nm |
| Response Time | ≤ 500 μs |
| Repeatability Perpendicular To Sensing Axis | ≤ 0.5 mm |
| Supply Voltage | 12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less |
| Residual Voltage | ≤ 2 VDC |
| Operating Current | ≤ 20 mA |
| Max Sink Source Current | ≤ 100 mA |
| Circuit Protection | Reverse polarity protection, overcurrent protection, and overvoltage protection |
| Insulation Resistance | 20 MΩ or more (between the terminal block for power supply and the housing) |
| Withstand Voltage | 1000 VAC, 1 min (between the terminal block for power supply and the housing) |
| Ambient Illumination | Sunlight: < 10000 lux Incandescent lamp: < 3000 lux |
| Ingress Protection | IP67 |
| Material | Housing: polycarbonate Lens: acrylic |
| Connecting Method | Cable lead-out (standard length: 2 m, 78.7") |
| Vibration Resistance | 10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions |
| Shock Resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions |
