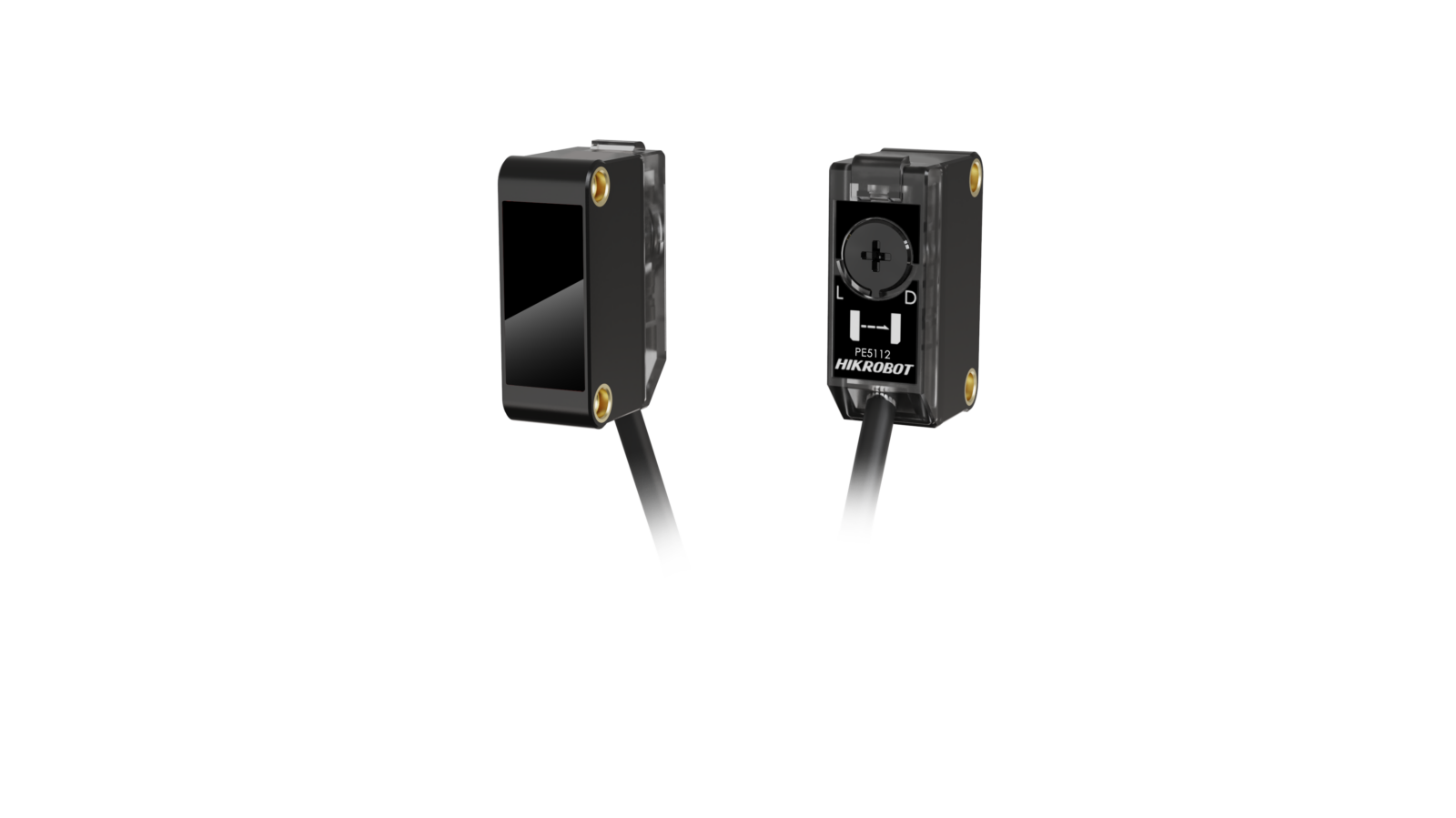

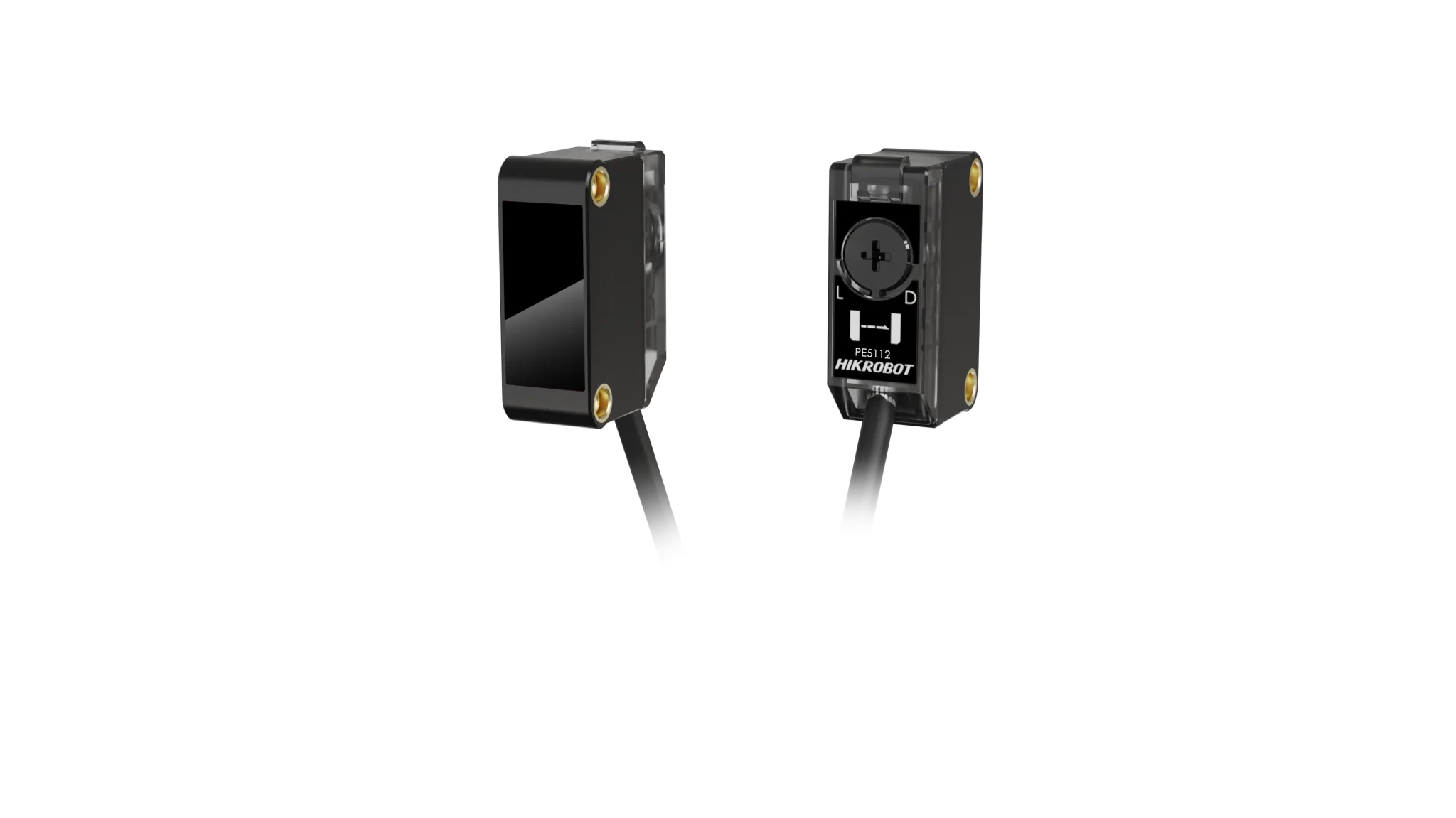

Through-beam sensor(30m,Infrared LED，PNP)

Name: Through-beam sensor(30m,Infrared LED, PNP)
Brand: HIKROBOT
SKU: MV-PE5112-P

Provides a large infrared spot for ease of alignment.

Send inquiry

Download datasheet (PDF)

Highlights

Large infrared-spot aimer for easy alignment.
Unaffected by direct sunlight with strong anti-interference capability.
Sensitivity is user-adjustable.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-PE5112-P Category: Vision Components

Through-beam sensor(30m,Infrared LED, PNP) is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-PE5112-P. Key data: certification CE, RoHS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Through-beam sensor(30m,Infrared LED, NPN) (MV-PE5112)

Description

Description

Unaffected by direct sunlight with strong anti-interference capability. Sensitivity is user-adjustable.

Product Highlights

Large infrared-spot aimer for easy alignment. — Unaffected by direct sunlight with strong anti-interference capability. — Sensitivity is user-adjustable.

Specifications

Product Model	MV-PE5112-P
Type	Through-beam sensor(30m,Infrared LED，PNP)
Certification	CE, RoHS
Indicator	Operation indicator: orange (receiver) Stability indicator: green (receiver) Power indicator: orange (transmitter)
Dimension	20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2")
Temperature	Working temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	35% RH to 85% RH
Weight	Transmitter: approx. 45 g (0.1 lb.) (including cable) Receiver: approx. 45 g (0.1 lb.) (including cable)
Detecting Distance	30 m
Sensing Target	Opaque object above Φ15 mm
Output	PNP-NO/NC (supports light-on/dark-on switch)
Light Source	Infrared LED 850 nm
Response Time	≤ 500 μs
Repeatability Perpendicular To Sensing Axis	≤ 0.5 mm
Supply Voltage	12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less
Residual Voltage	≤ 2 VDC
Operating Current	≤ 20 mA
Max Sink Source Current	≤ 100 mA
Circuit Protection	Reverse polarity protection, overcurrent protection, and overvoltage protection
Insulation Resistance	20 MΩ or more (between the terminal block for power supply and the housing)
Withstand Voltage	1000 VAC, 1 min (between the terminal block for power supply and the housing)
Ambient Illumination	Sunlight: < 10000 lux Incandescent lamp: < 3000 lux
Ingress Protection	IP67
Material	Housing: polycarbonate Lens: acrylic
Connecting Method	Cable lead-out (standard length: 2 m, 78.7")
Vibration Resistance	10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions
Shock Resistance	500 m/s2, 3 times in each of the X, Y, and Z directions
Sensitivity Adjustment	Trimmer (200°)
