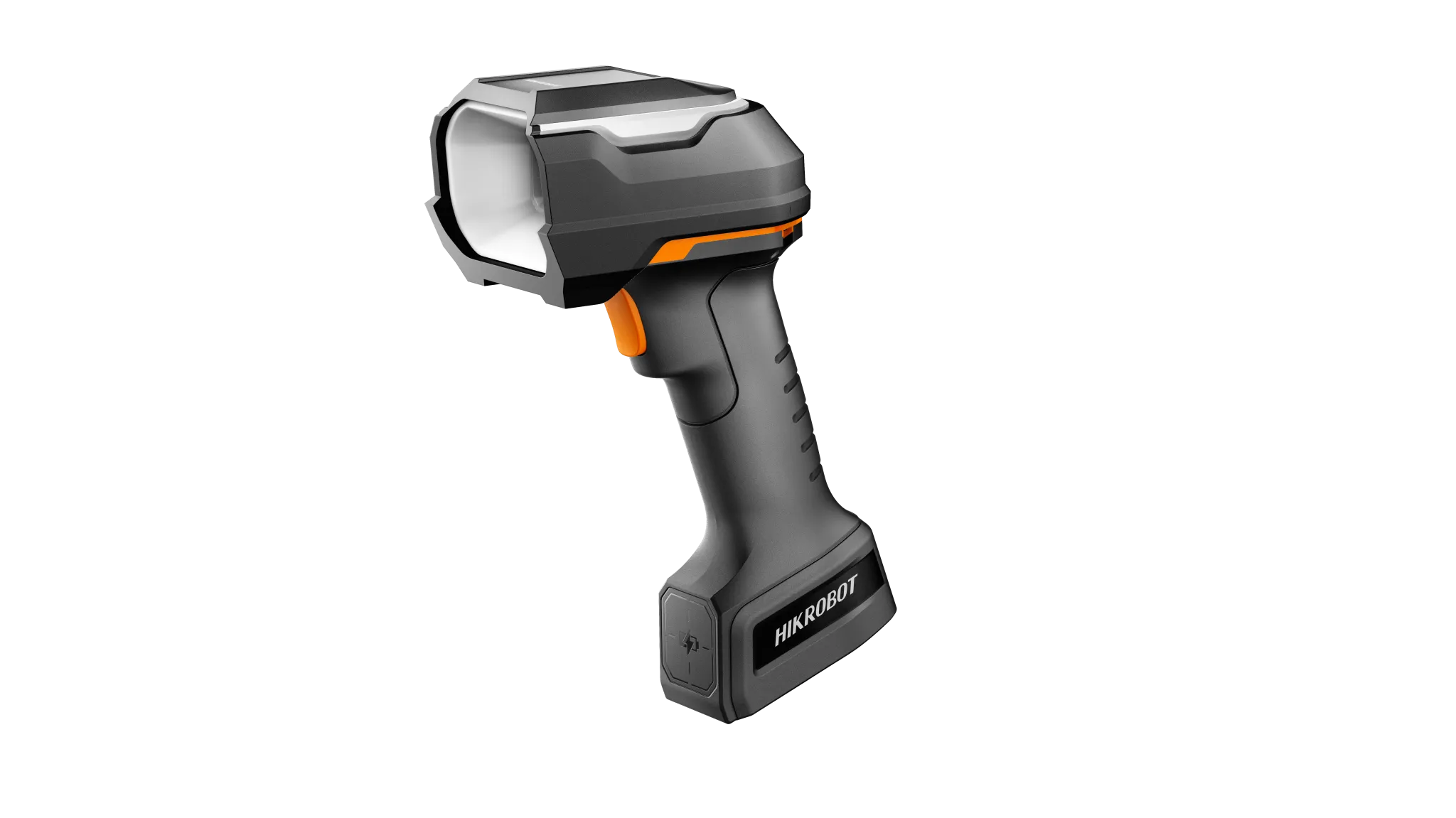

Ultra-ragged Wireless Handheld Code Reader

Name: Ultra-ragged Wireless Handheld Code Reader
Brand: HIKROBOT
SKU: MV-IDH9000B/13HHD/16RP

Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio.

Send inquiry

Download datasheet (PDF)

Highlights

Built-in code-reading algorithm and illumination handle codes with spots, defects, and low contrast.
Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading.
Equipped with a 3D sensor for height-map acquisition.
Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation.
A 4650 mAh battery gives long standby time.
Wireless charging eliminates electrode wear and metal-swarf interference.
Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH9000B/13HHD/16RP Category: Handheld Code Reader

Ultra-ragged Wireless Handheld Code Reader is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH9000B/13HHD/16RP. Key data: min accuracy 1.57 mil, communication mode Bluetooth BT 5.0, BLE, ingress protection IP65, battery 4650 mAh. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Ultra-ragged Wireless Handheld Code Reader Package (MV-IDH9000B/13HHD/16RP/US)

Description

Description

Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading. Equipped with a 3D sensor for height-map acquisition. Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation. A 4650 mAh battery gives long standby time. Wireless charging eliminates electrode wear and metal-swarf interference. Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional.

Ultra-ragged Wireless Handheld Code Reader (MV-IDH9000B/13HHD/16RP) at a glance: 1280 × 1024 resolution, IP65 protection and weighs 380 g (0.8 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Built-in code-reading algorithm and illumination handle codes with spots, defects, and low contrast. — Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading. — Equipped with a 3D sensor for height-map acquisition. — Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation. — A 4650 mAh battery gives long standby time. — Wireless charging eliminates electrode wear and metal-swarf interference. — Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional.

Specifications

Product Model	MV-IDH9000B/13HHD/16RP
Type	Ultra-ragged Wireless Handheld Code Reader
Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec Stacked barcode: PDF417
Min Accuracy	1.57 mil
Sensor Type	CMOS
Resolution	1280 × 1024
Depth Of Field	Code128 (3 mil): 0 mm to 100 mm Code 128 (10 mil): 0 mm to 250 mm Code 128 (20 mil): 0 mm to 350 mm Code 39 (5 mil): 0 mm to 150 mm Data Matrix (5 mil): 5 mm to 79 mm QR Code (20 mil): 0 mm to 250 mm
Field Of View	Wide-angle lens: horizontal 43.6°, vertical 35.5° Telephoto lens: horizontal 10.4°, vertical 8.3°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	--
Data Interface	--
Power Supply	--
Current Consumption	--
Ambient Illumination	0 lux to 100000 lux
Light Source	Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene.
Aiming System	650 nm laser (red light) + LED (green light)
Prompt	LED indicator, buzzer, vibrator
Dimension	257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7")
Weight	Approx. 380 g (0.8 lb.)
Ingress Protection	IP65
Temperature	5% RH to 95% RH (no condensation)
Humidity	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Laser Safety Class	Laser 1
Wavelength	650 nm
Pulse Width	6.6 ms
Maximum Power	0.39 mW
Client Software	IDMVS
Certification	CE, KC
Communication Mode	Bluetooth BT 5.0, BLE
Wireless Range	100 m (open area)
Battery	4650 mAh
Charging Time	6 h
Endurance	14 h (interval scanning, once in 20 seconds)
Drop Height	Dropping: 2.5 m, 50 times Rolling: 0.5 m, 20000 times
Static Electricity Resistant	± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge)
Display	0.96" OLED display
Chemically Resistant	ISO 16750
Max Current	1.5 A
