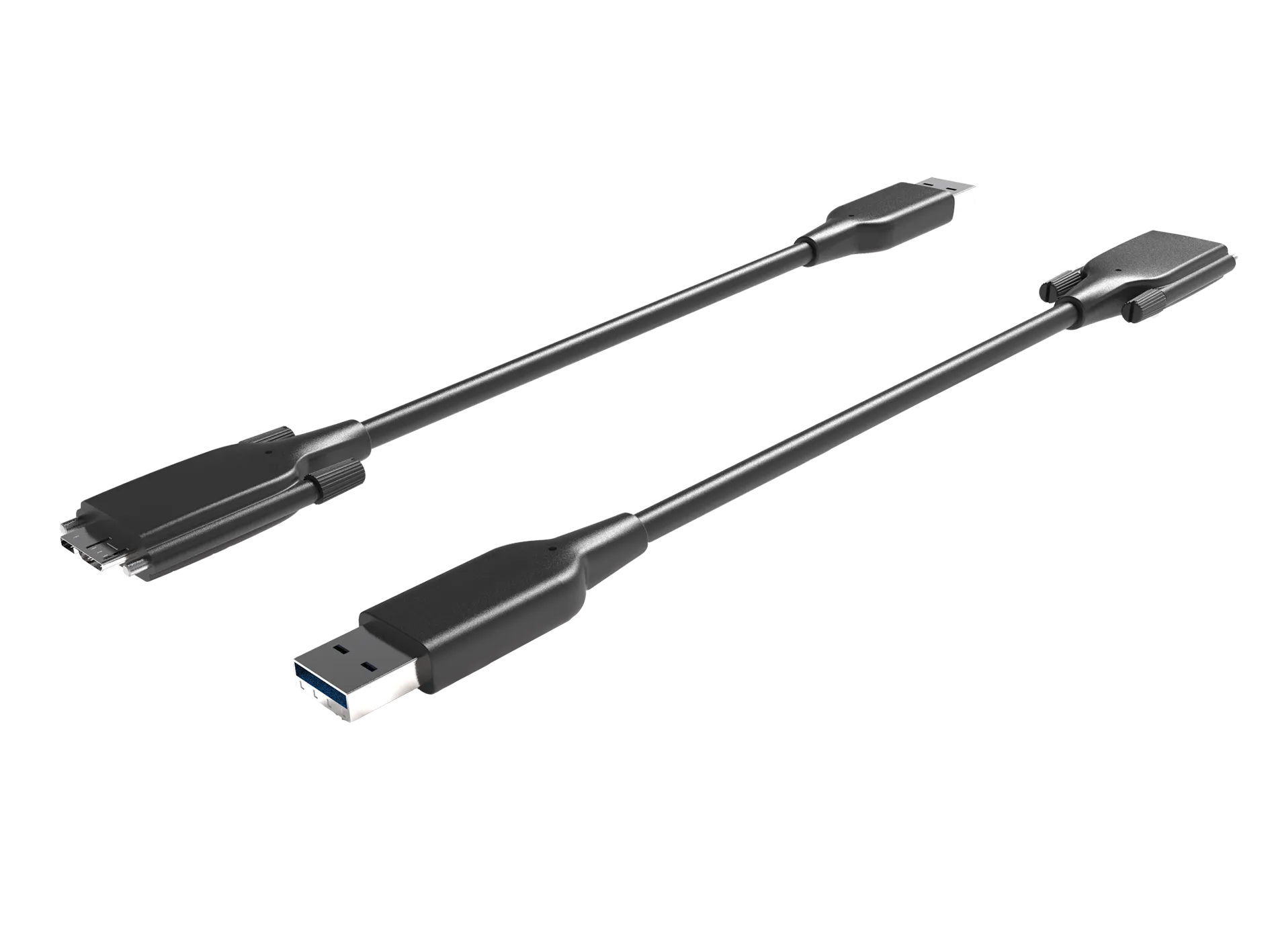

USB3.0 AOC fiber cable
The USB3.0 Super Flex Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
USB 3.0 Super Flex Data Cables carry data and supply power for USB 3.0 cameras; available in multiple lengths.
Specifications
| Product Model | MV-ACU3-MBMs-AM-SF-20m |
|---|---|
| Type | USB3.0 AOC fiber cable |
| End A Connector | Micro-B male (with screw) |
| End B Connector | A male |
| Cable Diameter | 4.8 mm |
| Length | 20 m |
| Cable Mechanical | (1P*26#+ADBMP)2C+1P*26#+1P*24#+FPB |
| Jacket | Nitrile PVC |
| Cable Color | Black |
| Connector Durability | 5,000 cycles |
| Min Bending Radius | 57.6 mm |
| Applicable Scenario | Static scenes/tank chain |
| Max Voltage | 5 VDC |
| Working Temperature | -20°C~ 80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Max U Type Bending Cycles | 10 million times |
| Max 90 Bending Cycles | 5 million times |
