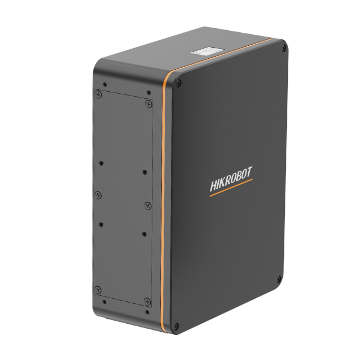

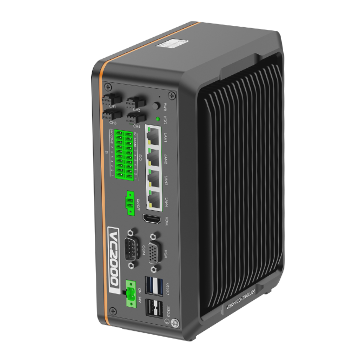

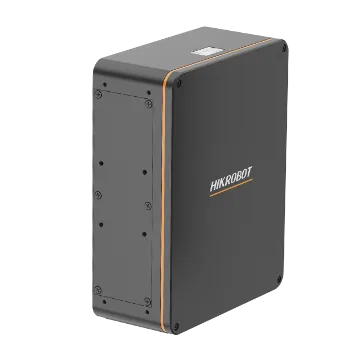

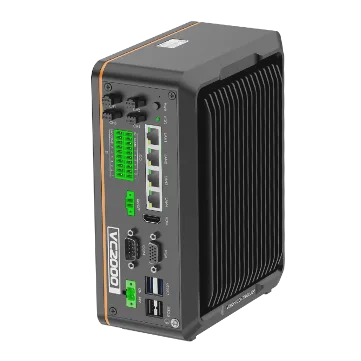

VC2100 Vision Controller，N97，8GB+128G SSD，Supported POE；
Adopts Intel® Alder Lake-N processor to provide calculation.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
GPIO function supported. 4-channel light-source control. GigE interface for stable data transfer. Optional built-in USB interface or dongle.
Product Highlights
Powered by an Intel® Alder Lake-N processor. — GPIO function supported. — 4-channel light-source control. — GigE interface for stable data transfer. — Optional built-in USB interface or dongle.
Specifications
| Product Model | MV-VC2143-128G40-NN |
|---|---|
| Type | VC2100 Vision Controller，N97，8GB+128G SSD，Supported POE； |
| CPU | Intel® Processor N97 |
| Memory | 8 GB |
| Storage | 128 GB SSD |
| GPU | Intel® UHD Graphics |
| Operating System | Unactivated 64-bit Windows 10 LTSC 21H2 |
| Encryption Method | Not support |
| Video Output | HDMI interface × 1, VGA interface × 1 Supports independent display outputs at the same time Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8 Opto-isolated output × 8 |
| Light Interface | Light interface with 24 VDC constant voltage × 4 (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control) |
| Network Interface | GigE interface × 4, supports PoE (The total loading is 20 W) |
| USB Interface | USB 2.0 × 2 USB 3.0 × 2 |
| Serial Port | RS-232 × 1, supports switching to RS-485 or RS-422 |
| Power Supply | 24 VDC |
| Power Consumption | Typ. 71 W (without light source) |
| Dimension | 166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4") |
| Weight | Approx. 2 kg (4.4 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
