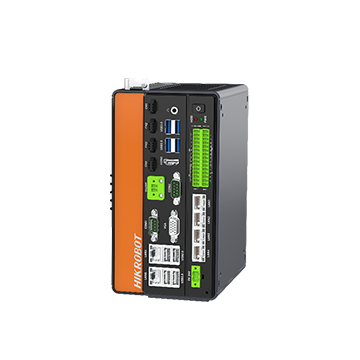

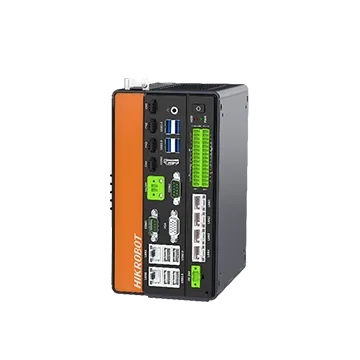

VC3000H Vision Controller, G5400，8GB+128GSSD，Unsupported POE， PCI-E
Adopts 8th generation Intel® CPU to offer strong performance.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
An expansion slot connects to image frame grabbers. Provides 24-channel GPIO with NPN/PNP output switching. GigE interface for stable data transfer. Provides a PCIe 3.0 ×16 interface. Optional built-in USB interface for on-site maintenance.
Product Highlights
Powered by an 8th-gen Intel® CPU for strong performance. — An expansion slot connects to image frame grabbers. — Provides 24-channel GPIO with NPN/PNP output switching. — GigE interface for stable data transfer. — Provides a PCIe 3.0 ×16 interface. — Optional built-in USB interface for on-site maintenance.
Specifications
| Product Model | MV-VC3201H-128G60 |
|---|---|
| Type | VC3000H Vision Controller, G5400，8GB+128GSSD，Unsupported POE， PCI-E |
| CPU | Intel® PentiumTM G5400 |
| Memory | 8 GB |
| Storage | 128 GB SSD |
| GPU | Intel® HD Graphics 610 |
| Operating System | Unactivated 64-bit Windows 10 |
| Video Output | HDMI interface × 1, VGA interface × 1 Supports independent display outputs at the same time Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8 Opto-isolated output × 16 (supports NPN/PNP switching) |
| Light Interface | 24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.) |
| Network Interface | GigE interface × 6 |
| USB Interface | USB 2.0 × 4 USB 3.0 × 4 Built-in USB 2.0 × 1 |
| Serial Port | RS-232 × 2, supports switching to RS-485 and RS-422 |
| Power Supply | 24 VDC |
| Power Consumption | Typ. 95 W |
| Dimension | 161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2") |
| Weight | Approx. 2.1 kg (4.6 lb.) |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Extended Interface | PCIe 3.0 ×16 ( × 1) |
