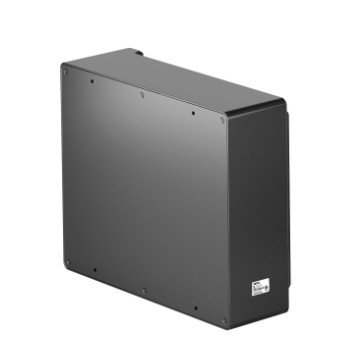

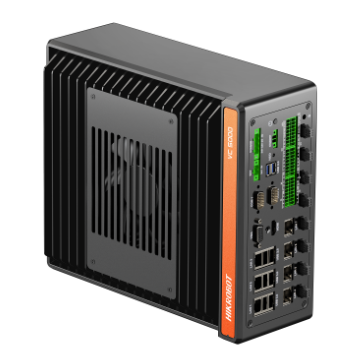

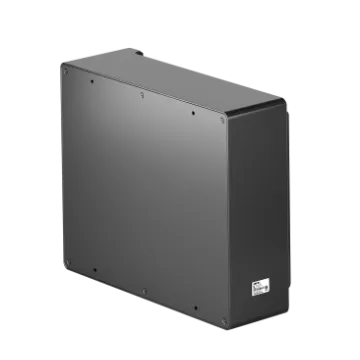

VC5000 Vision Controller，12th-I7，32GB+256G SSD，Unsupported PCIE
Adopts 12th generation Intel® CPU to offer strong performance.
- Powered by a 12th-gen Intel® CPU for strong performance.
- Provides 32-channel GPIO, with NPN/PNP output switching on select models.
- GigE interface for stable data transfer.
- Controls multiple light-source channels in sync.
Camera Solutions
VC5000 Vision Controller, 12th-I7, 32GB+256G SSD, Unsupported PCIE is a vision controller from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-VC5715-256G70-NN. Key data: certification CE, KC. Typical use is running image processing directly in the control cabinet. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Provides 32-channel GPIO, with NPN/PNP output switching on select models. GigE interface for stable data transfer. Controls multiple light-source channels in sync.
Product Highlights
Powered by a 12th-gen Intel® CPU for strong performance. — Provides 32-channel GPIO, with NPN/PNP output switching on select models. — GigE interface for stable data transfer. — Controls multiple light-source channels in sync.
Specifications
| Product Model | MV-VC5715-256G70-NN |
|---|---|
| Type | VC5000 Vision Controller，12th-I7，32GB+256G SSD，Unsupported PCIE |
| CPU | Intel® CoreTM i7-12700 |
| Memory | 8 GB 16 GB 32 GB |
| Storage | 256 GB SSD and 2T HDD 256 GB SSD |
| GPU | Intel® UHD Graphics 770 |
| Operating System | Unactivated Windows 10 |
| Video Output | HDMI interface × 1, VGA interface × 1 Supports independent display output at the same time Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8 Opto-isolated output × 12 ( supports NPN/PNP switching) Digital-isolated low-side driver output × 8 Non-isolated bi-directional differential I/O × 4 |
| Light Interface | 24 VDC constant voltage × 8 (Max. power consumption of single channel is 72 W, total max. power consumption 190 W) |
| Network Interface | GigE interface × 7, including interface for PoE × 4 |
| Power Supply | 24 VDC (4-pin interface for system power supply) |
| Power Consumption | Typ. 264 W (4-pin interface for system power supply) |
| Dimension | 302.3 mm × 248 mm × 105.2 mm (11.9" × 9.8" × 4.1") |
| Weight | Approx. 6 kg (13.2 lb.) |
| Temperature | 0 °C to 45 °C (32 °F to 113 °F) 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Extended Interface | SATA 3.0 interface × 2 |
| Chip | H610 |
| USB Interface 2 | USB 2.0 × 4 USB 3.0 × 4 Built-in USB 2.0 × 1 |
| Serial Port 2 | RS-232 × 2 by default, supports switching to RS-485 and RS-422 |
