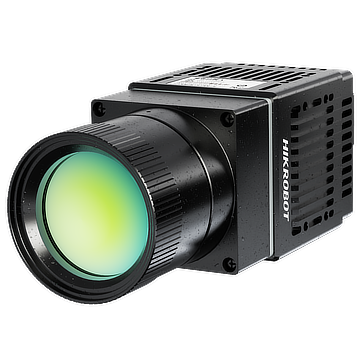

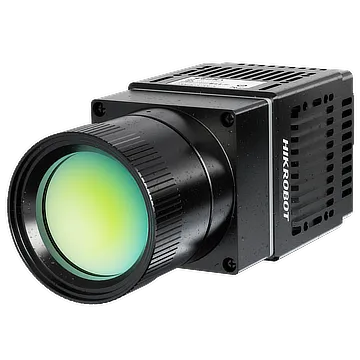

LWIR Camera, 0.3MP, GigE, 6mm, Temperature measurement type
Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.
Camera Solutions
Beschreibung
Supports point, polygon, line, and circle temperature measurement rules. Single-region and multi-region temperature alarm settings. Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
High-sensitivity vanadium oxide uncooled detector, 0.3 MP. — Supports point, polygon, line, and circle temperature measurement rules. — Single-region and multi-region temperature alarm settings. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CI003-GL-T6 |
|---|---|
| Type | LWIR Camera, 0.3MP, GigE, 6mm, Temperature measurement type |
| Sensor Type | Vanadium oxide uncooled detector |
| Pixel Size | 17 μm |
| Resolution | 640 × 512 |
| Max Frame Rate | 50 fps @ 640 × 512 |
| Pixel Format | Mono 16, Float 32, YUV422(YUYV)Packed, YUV 422 Packed |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |

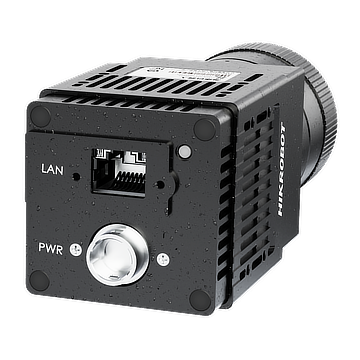

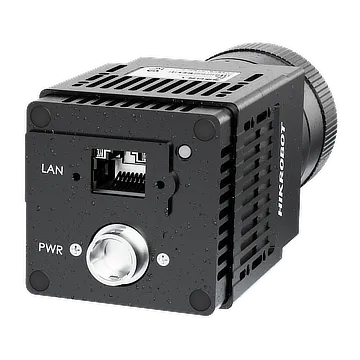

| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC |
| Dimension | 48 mm × 48 mm × 117.9 mm (1.9" × 1.9" × 4.6") |
| Weight | Approx. 370 g (0.8 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 60 °C (–4 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux. |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.8 W @ 12 VDC |
| Netd | < 50 mk (F1.0, 30 °C) |
| Color Palettes | White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot |
| Image Process | Supports brightness, contrast, Gamma correction |
| Focal Length | 6.3 mm |
| Field Of View | 88.5° × 73.2° |
| Space Resolution | 2.7 |
| Aperture | 1.0 |
| Thermal Object Distance | 0.6 m |
| Temperature Measurement Range | –20 °C to 150 °C or 0 °C to 550 °C (–4 °F to 302 °F or 32 °F to 1022 °F) |
| Temperature Measurement Accuracy | ± 2 °C (35.6 °F) or ± 2% of the readings |
| Max Temperature Measurement Distance | 5 m (@ target size 01 × 0.1 m2) |
| Installation Method | Supports installation from 4 sides |
