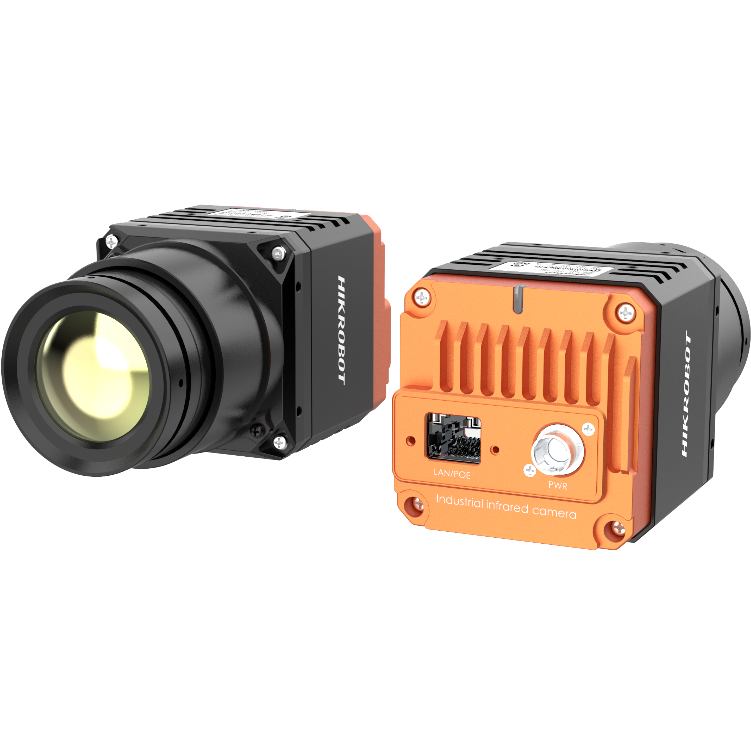

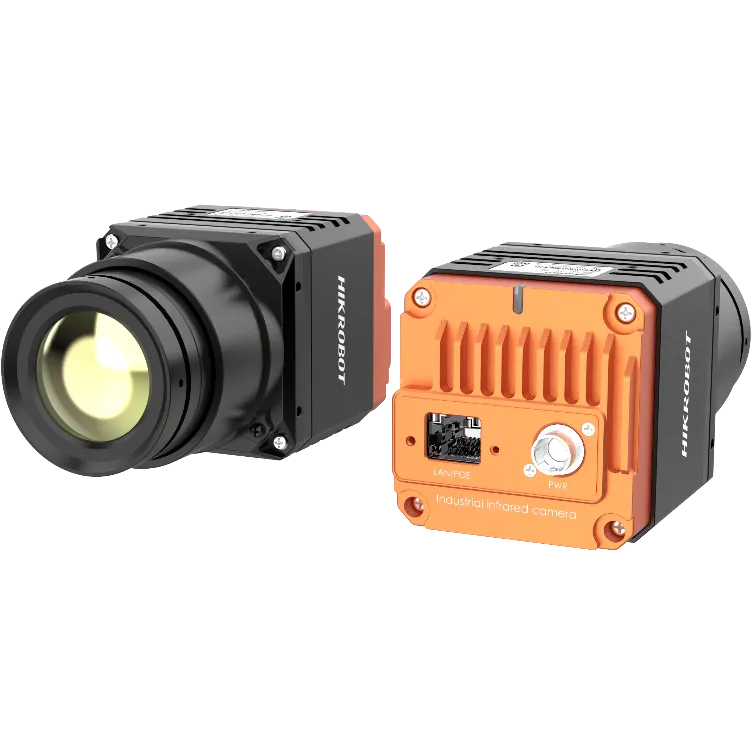

LWIR Camera, 0.3MP, GigE, EFL 25mm
Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Multiple palette modes with grayscale detection and image adjustment. Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol and the GenICam standard.
Product Highlights
High-sensitivity vanadium oxide uncooled detector, 0.3 MP. — Multiple palette modes with grayscale detection and image adjustment. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol and the GenICam standard.
Specifications
| Product Model | MV-CI003-GL-N25 |
|---|---|
| Type | LWIR Camera, 0.3MP, GigE, EFL 25mm |
| Sensor Type | Vanadium oxide uncooled detector |
| Pixel Size | 17 μm |
| Resolution | 640 × 512 |
| Max Frame Rate | 50 fps @ 640 × 512 |
| Pixel Format | Mono 8/12/14, YUV422_YUYV_Packed |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | M34*0.75 |
| Dimension | 58 mm × 58 mm × 96.9 mm (2.3" × 2.3" × 3.8") |
| Weight | Approx. 275 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux. |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.5 W @ 12 VDC |
| Netd | < 35 mk (F1.0, 25 °C) |
| Response Time | < 10 ms |
| Color Palettes | White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue |
| Image Process | Supports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal) |
| Focal Length | 25 mm |
| Field Of View | 24.6° × 18.5° |
| Min Operation Distance | 0.25 m |
