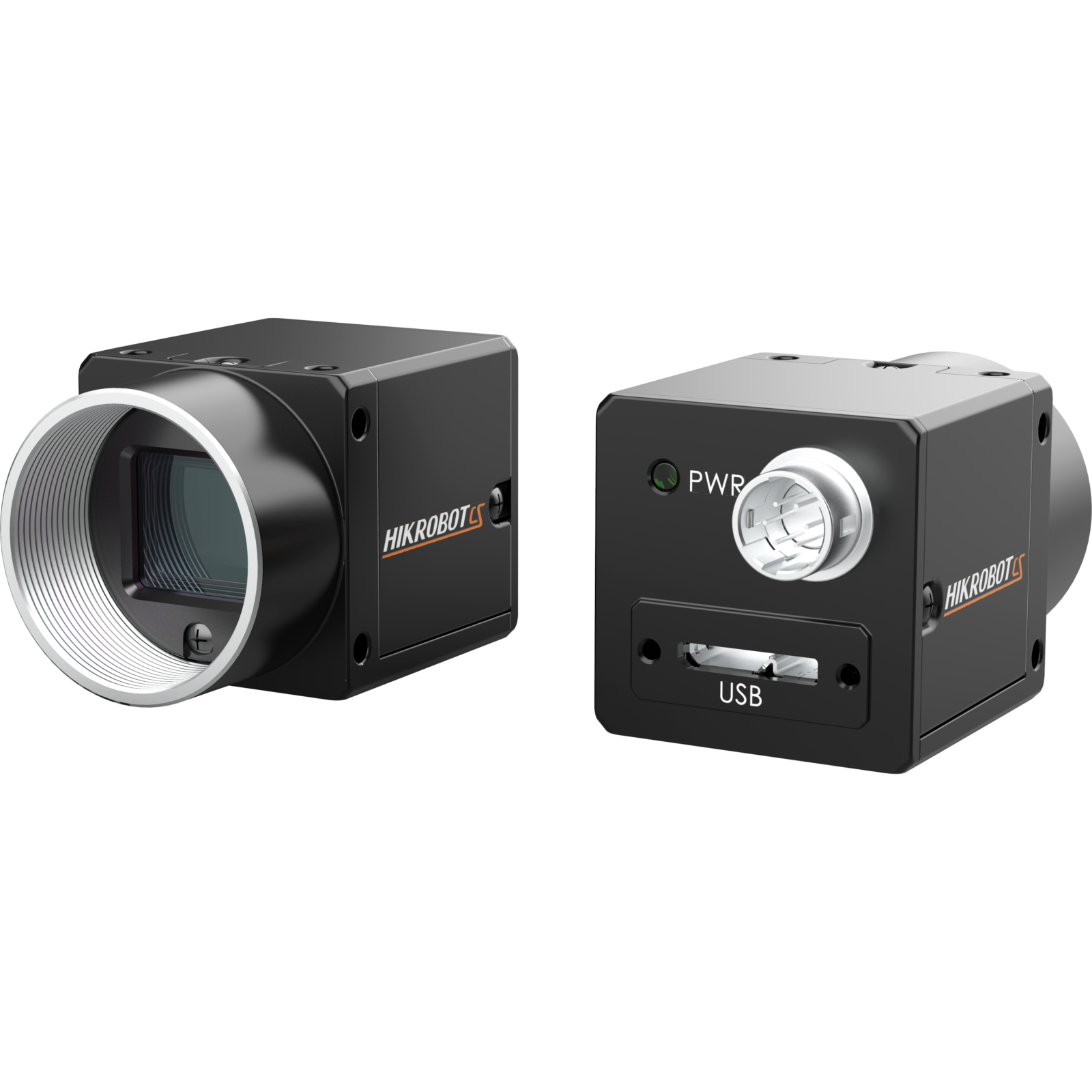

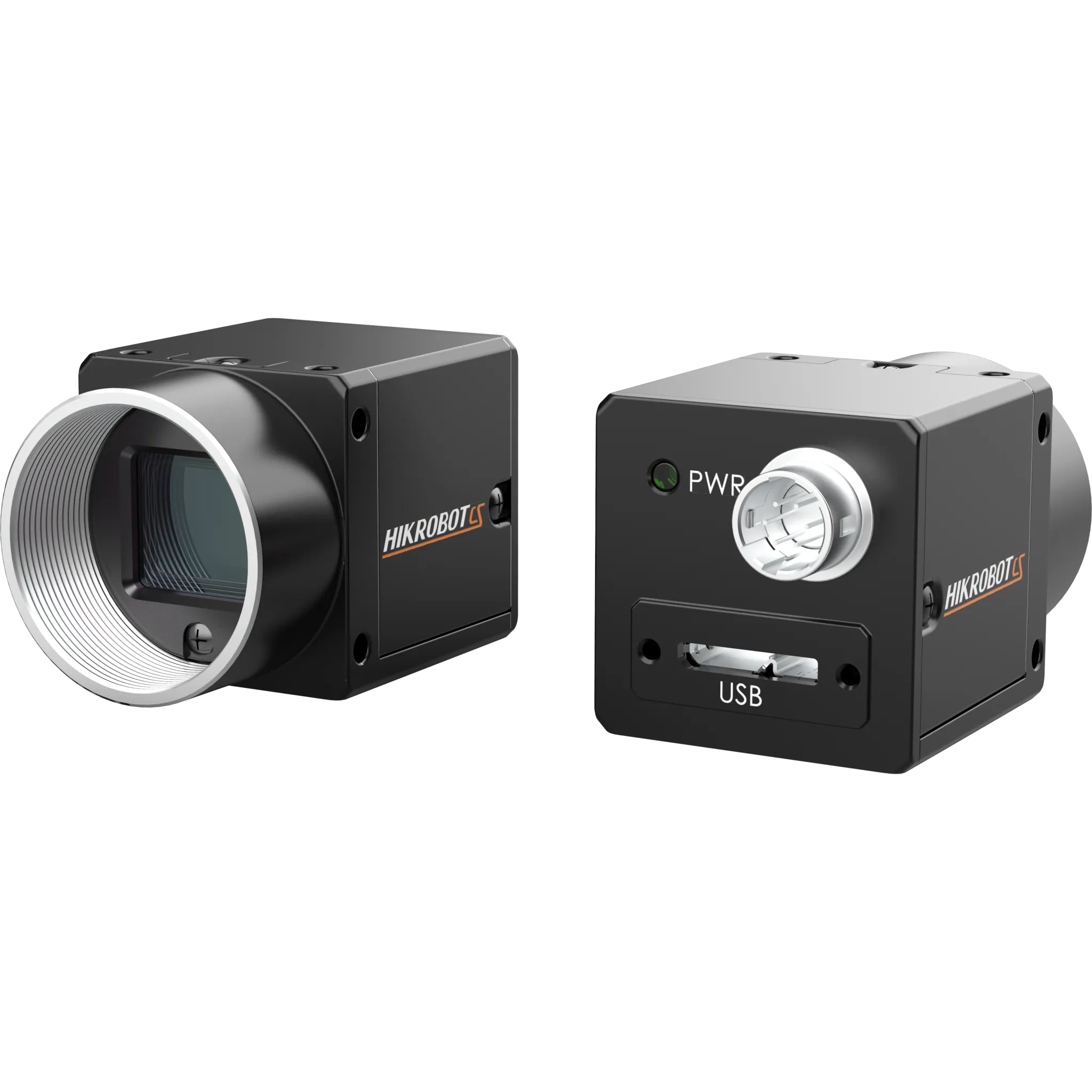

Area Scan Camera, 0.4MP, USB3.0, IMX287, 2nd Gen., V5, Mono
Adopts brand new design to reduce power consumption.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports Sequencer, contrast ratio, white balance, and gamma correction. Supports hardware trigger, software trigger, and free-run modes. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Supports Sequencer, contrast ratio, white balance, and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS004-10UM V5 |
|---|---|
| Type | Area Scan Camera, 0.4MP, USB3.0, IMX287, 2nd Gen., V5, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX287 |
| Pixel Size | 6.9 μm × 6.9 μm |
| Sensor Size | 1/2.9" |
| Resolution | 720 × 540 |
| Max Frame Rate | 525.5 fps @ 720 × 540 Mono 8 |
| Dynamic Range | 73.4 dB |
| SNR | 42.7 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit win11, 32/64-bit Linux |
| Compatibility | USB3.0 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.7 W @ 5 VDC (USB3.0 provides power supply) |
| Quantum Efficiency | 60.24 % |
| Dark Noise | 3.1 e- @ 12 bit |
| Saturation Capacity | 18.8 ke- |
