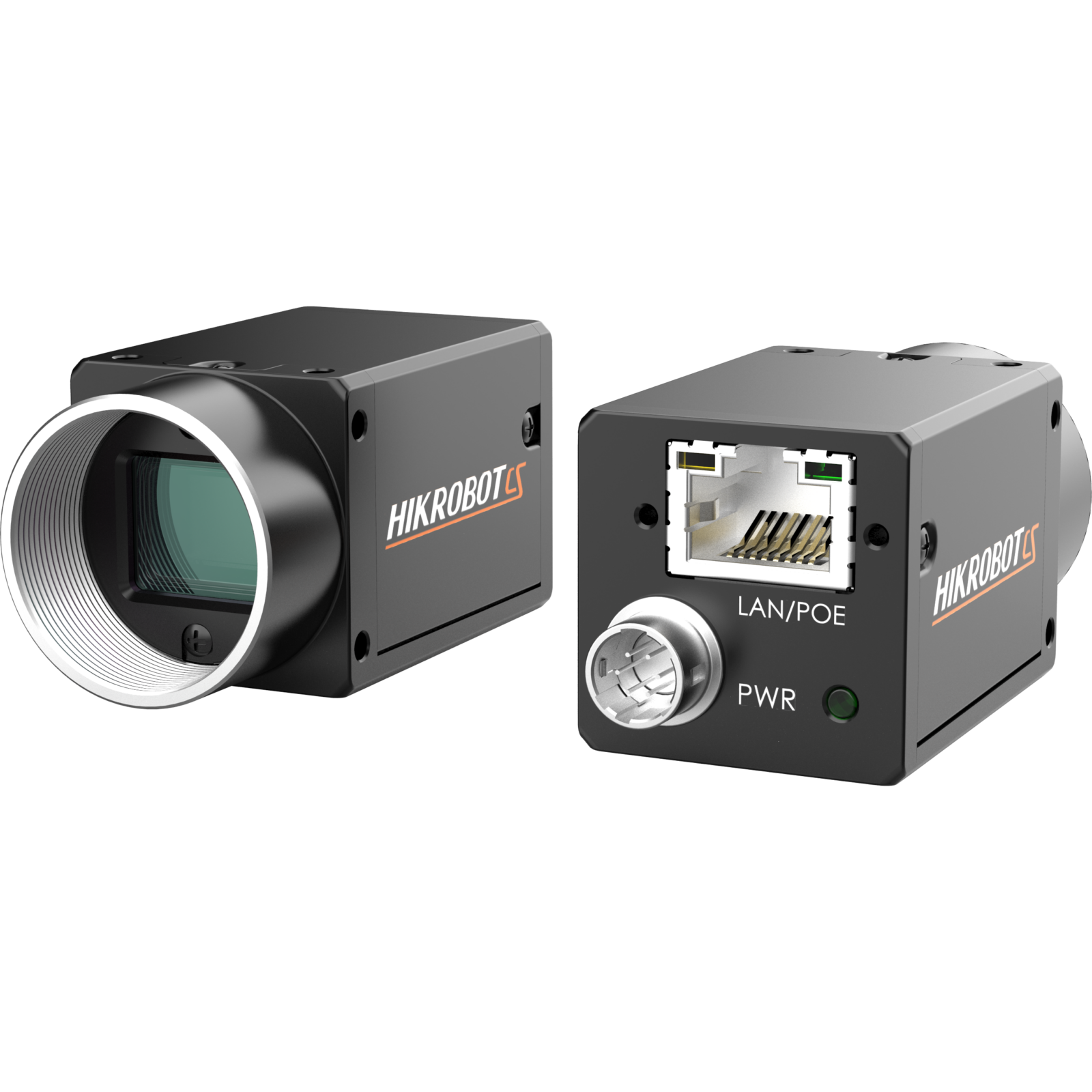

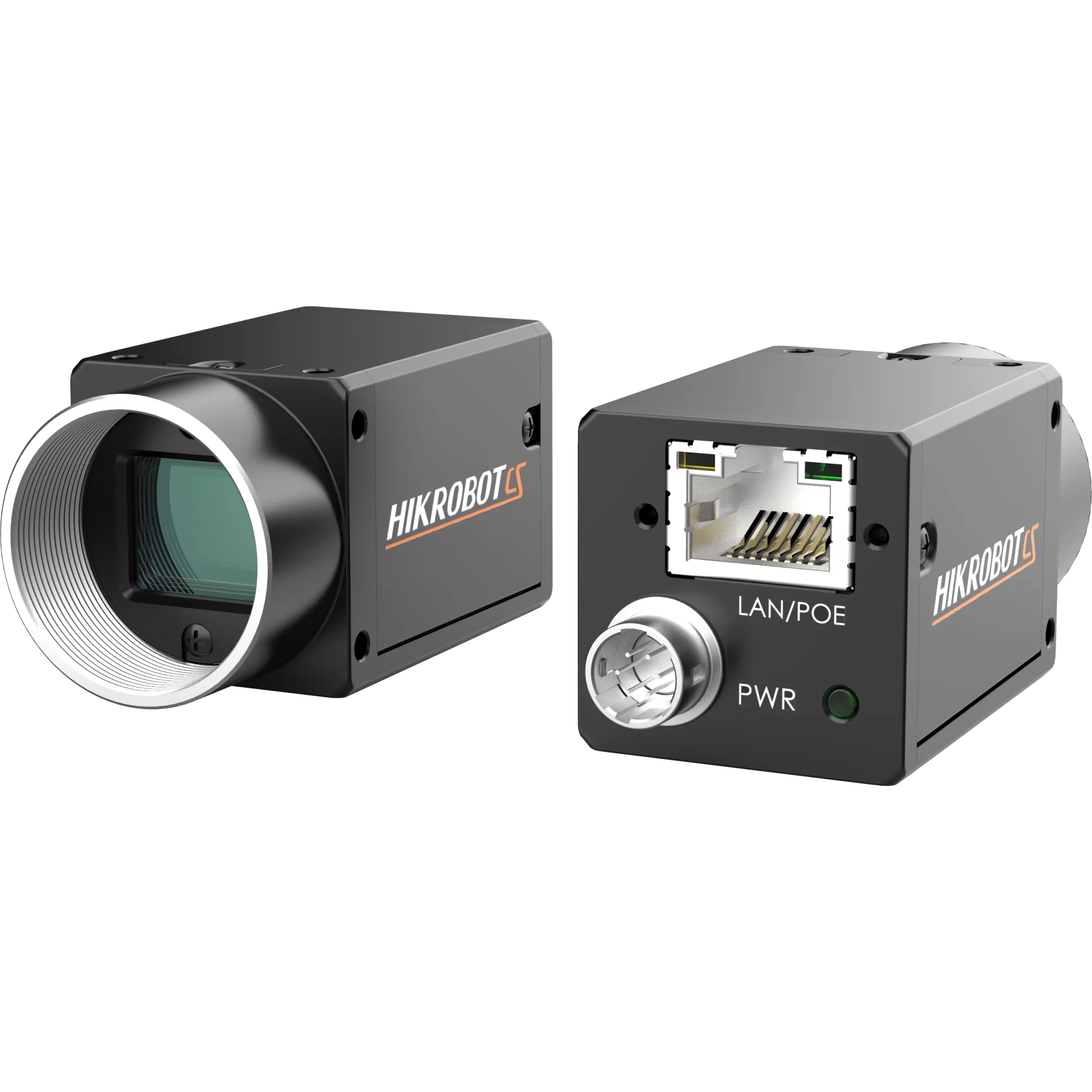

Area Scan Camera, 0.4MP, GigE, IMX287, Mono
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Compact body with panel mounting holes on four sides for flexible setup.
- Supports Sequencer, contrast ratio, gamma correction, and white balance.
- Supports hardware trigger, software trigger, and free-run modes.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 0.4MP, GigE, IMX287, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS004-11GM. Key data: resolution 720 × 540, sensor type CMOS, global shutter, max frame rate 312.9 fps @720 × 540 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 0.4MP, GigE, IMX297, Color (MV-CS004-10GC)
- Area Scan Camera, 0.4MP, GigE, IMX297, Mono (MV-CS004-10GM)
- Area Scan Camera, 0.4MP, USB3.0, IMX287, 2nd Gen., Color (MV-CS004-10UC)
- Area Scan Camera, 0.4MP, USB3.0, IMX287, 2nd Gen., V5, Color (MV-CS004-10UC V5)
- Area Scan Camera, 0.4MP, USB3.0, IMX287, 2nd Gen., Mono (MV-CS004-10UM)
- Area Scan Camera, 0.4MP, USB3.0, IMX287, 2nd Gen., V5, Mono (MV-CS004-10UM V5)
- Area Scan Camera, 0.4MP, GigE, IMX287, Color (MV-CS004-11GC)
Description
Compact body with panel mounting holes on four sides for flexible setup. Supports Sequencer, contrast ratio, gamma correction, and white balance. Supports hardware trigger, software trigger, and free-run modes. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Redesigned for lower power consumption. — Compact body with panel mounting holes on four sides for flexible setup. — Supports Sequencer, contrast ratio, gamma correction, and white balance. — Supports hardware trigger, software trigger, and free-run modes. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CS004-11GM |
|---|---|
| Type | Area Scan Camera, 0.4MP, GigE, IMX287, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX287 |
| Pixel Size | 6.9 μm × 6.9 μm |
| Sensor Size | 1/2.9" |
| Resolution | 720 × 540 |
| Max Frame Rate | 312.9 fps @720 × 540 Mono 8 |
| Dynamic Range | 73.6 dB |
| SNR | 43 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 1 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 2.2 W@12 VDC |
