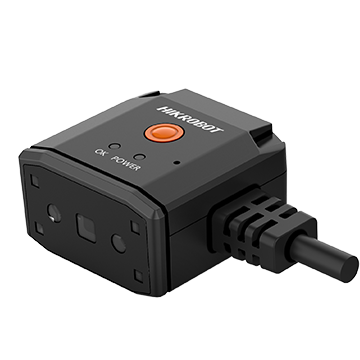

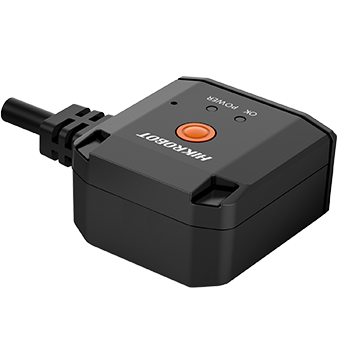

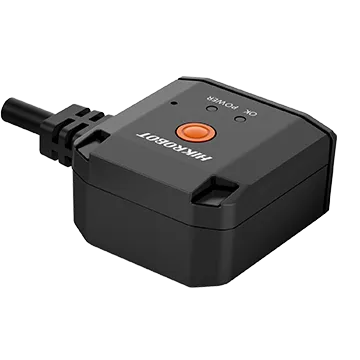

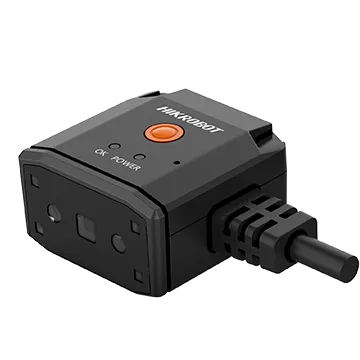

Industrial Code Reader, 1.3MP 5mm Focus Length
Built-in deep learning algorithm to read codes with good robustness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Compact and small-footprint design. Includes multiple IO interfaces and a plug-in power connector. An LED aiming light helps line up codes. A buzzer and indicator signal device status. One-click parameter setup keeps operation simple.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — Compact and small-footprint design. — Includes multiple IO interfaces and a plug-in power connector. — An LED aiming light helps line up codes. — A buzzer and indicator signal device status. — One-click parameter setup keeps operation simple.
Specifications
| Product Model | MV-ID2013EM-05-RBP-SU |
|---|---|
| Type | Industrial Code Reader, 1.3MP 5mm Focus Length |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Max Frame Rate | 50 fps |
| Max Reading Speed | 30 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 2.7 μm × 2.7 μm |
| Sensor Size | 1/4" |
| Resolution | 1280 × 1024 |
| Exposure Time | 60 μs to 0.6 sec |
| Gain | 1 dB to 28 dB |
| Mono Color | Mono |
| Communication Protocol | Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP USB interface: SmartSDK, USB (HID, CDC) |
| Depth Of Field | Code 39 (5 mil): 75 mm to 215 mm Code 128 (10 mil): 50 mm to 400 mm EAN 13 (13 mil): 60 mm to 420 mm QR Code (15 mil): 40 mm to 290 mm Data Matrix (10 mil): 50 mm to 240 mm Code 39 (3 mil): 35 mm to 65 mm Code 39 (5 mil): 30 mm to 75 mm EAN 13 (13 mil): 55 mm to 105 mm Data Matrix (5 mil): 30 mm to 65 mm Data Matrix (10 mil): 25 mm to 90 mm Code 128 (10 mil): 25 mm to 105 mm QR Code (10 mil): 25 mm to 95 mm Code 39 (3 mil): 45 mm to 90 mm Code 39 (5 mil): 35 mm to 105 mm EAN 13 (13 mil): 50 mm to 125 mm Data Matrix (5 mil): 40 mm to 80 mm Data Matrix (10 mil): 25 mm to 125 mm Code 128 (10 mil): 40 mm to 140 mm QR Code (10 mil): 30 mm to 120 mm Code 39 (5 mil): 40 mm to 120 mm Code 128 (10 mil): 15 mm to 250 mm EAN 13 (13 mil): 30 mm to 280 mm QR Code (10 mil): 35 mm to 155 mm QR Code (15 mil): 15 mm to 215 mm QR Code (20 mil): 15 mm to 270 mm |
| Data Interface | Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0 |
| Digital I/O | Network interface: DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. USB interface: DB15 connector provides data transmission. Supports device triggering via pressing button on side. |
| Power Supply | Network interface: 12 VDC to 24 VDC USB interface: 5 VDC (USB 2.0 provides power supply) |
| Max Power Consumption | Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC |
| Focal Length | 4.7 mm 2.45 mm |
| Lens Mount | M5.8-mount |
| Ambient Illumination | 0 lux to 10000 lux |
| Light Source | Red Red (polarized) White White (polarized) |
| Aiming System | Green LED |
| Indicator | Power indicator (POWER), status indicator (OK/NG) |
| Dimension | 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") |
| Weight | Approx. 68.5 g (0.2 lb.) |
| Ingress Protection | IP54 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
