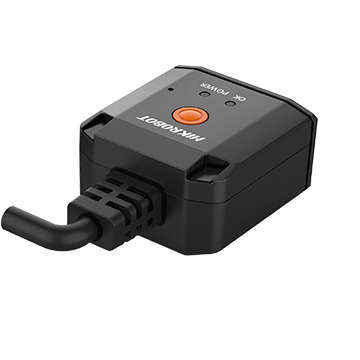

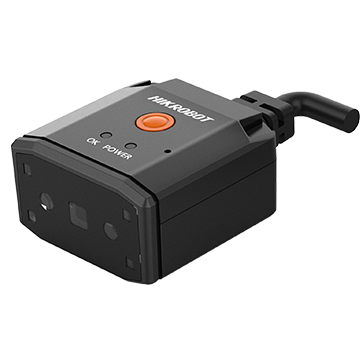

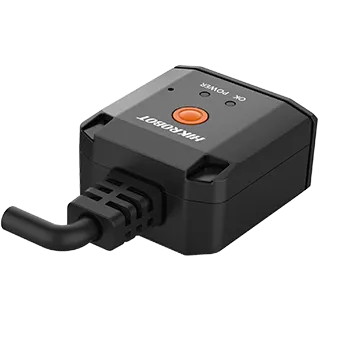

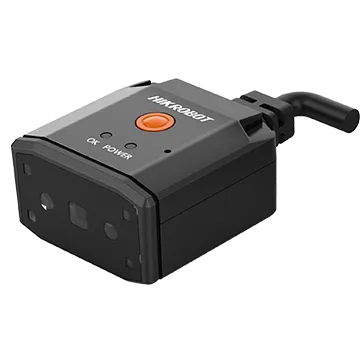

Ultra-Compact Industrial Code Reader, 5mm focal length 1.3MP

Name: Ultra-Compact Industrial Code Reader, 5mm focal length 1.3MP
Brand: HIKROBOT
SKU: MV-ID2013EM-05-RBP

Built-in deep learning algorithm to read codes with good robustness.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in deep-learning algorithm reads codes robustly.
Compact and small-footprint design.
Includes multiple IO interfaces and a plug-in power connector.
An LED aiming light helps line up codes.
A buzzer and indicator signal device status.
One-click parameter setup keeps operation simple.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID2013EM-05-RBP Category: Fixed Code Reader

Ultra-Compact Industrial Code Reader, 5mm focal length 1.3MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID2013EM-05-RBP. Key data: max reading speed 30 codes/sec, resolution 1280 × 1024, ingress protection IP54. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Compact and small-footprint design. Includes multiple IO interfaces and a plug-in power connector. An LED aiming light helps line up codes. A buzzer and indicator signal device status. One-click parameter setup keeps operation simple.

Ultra-Compact Industrial Code Reader, 5mm focal length 1.3MP (MV-ID2013EM-05-RBP) at a glance: 1280 × 1024 resolution, Mono sensor, 4.7 mm lens, Code 39 (5 mil): 75 mm to 215 mm depth of field, up to 50 fps, Network interface: Fast Ethernet (100 Mbit/s), RS-232 interface, 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0") housing and weighs 68.5 g (0.2 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in deep-learning algorithm reads codes robustly. — Compact and small-footprint design. — Includes multiple IO interfaces and a plug-in power connector. — An LED aiming light helps line up codes. — A buzzer and indicator signal device status. — One-click parameter setup keeps operation simple.

Specifications

Product Model	MV-ID2013EM-05-RBP
Type	Ultra-Compact Industrial Code Reader, 5mm focal length 1.3MP
Symbologies	1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max Frame Rate	50 fps
Max Reading Speed	30 codes/sec
Sensor Type	CMOS, global shutter
Pixel Size	2.7 μm × 2.7 μm
Sensor Size	1/4"
Resolution	1280 × 1024
Exposure Time	60 μs to 0.6 sec
Gain	1 dB to 28 dB
Mono Color	Mono
Communication Protocol	Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP USB interface: SmartSDK, USB (HID, CDC)
Depth Of Field	Code 39 (5 mil): 75 mm to 215 mm Code 128 (10 mil): 50 mm to 400 mm EAN 13 (13 mil): 60 mm to 420 mm QR Code (15 mil): 40 mm to 290 mm Data Matrix (10 mil): 50 mm to 240 mm
Data Interface	Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0
Digital I/O	Network interface: DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. USB interface: DB15 connector provides data transmission. Supports device triggering via pressing button on side.
Power Supply	Network interface: 12 VDC to 24 VDC USB interface: 5 VDC (USB 2.0 provides power supply)
Max Power Consumption	Network interface: 2.5 W @ 12 VDC USB interface: 2.5 W @ 5 VDC
Focal Length	4.7 mm
Lens Mount	M5.8-mount
Ambient Illumination	0 lux to 10000 lux
Light Source	Red (polarized)
Aiming System	Green LED
Indicator	Power indicator (POWER), status indicator (OK/NG)
Dimension	45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
Weight	Approx. 68.5 g (0.2 lb.)
Ingress Protection	IP54
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	IDMVS
Certification	CE, RoHS, KC
