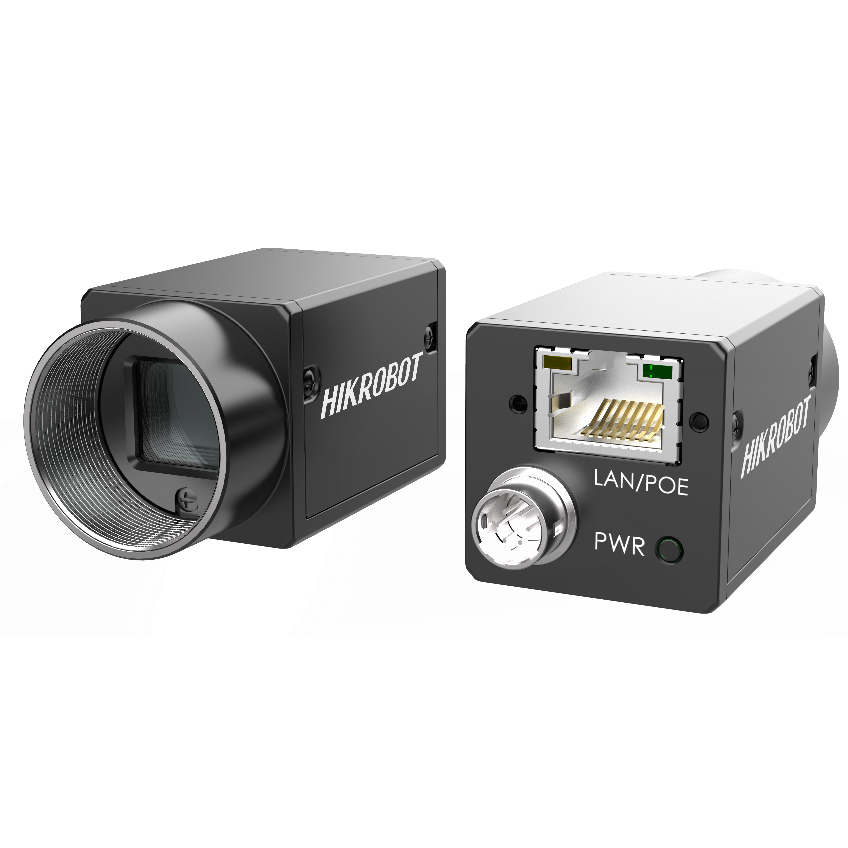

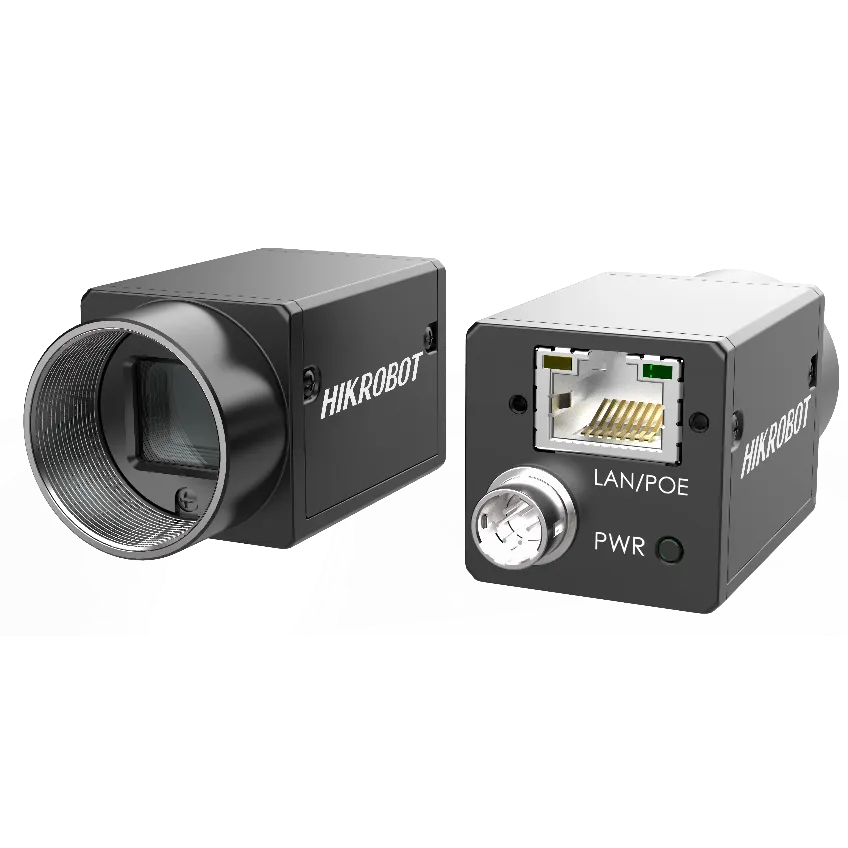

Area Scan Camera, 1.3MP, GigE, Color
Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports hardware trigger, software trigger, and free-run modes.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 1.3MP, GigE, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CA013-A0GC. Key data: resolution 1280 × 1024, sensor type CMOS, global shutter, max frame rate 92.8 fps @ 1280 × 1024. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 1.3MP, GigE, PYTHON1300, Color (MV-CA013-20GC)
- Area Scan Camera, 1.3MP, GigE, PYTHON1300, Mono (MV-CA013-20GM)
- Area Scan Camera, 1.3MP, USB3, PYTHON1300, Mono (MV-CA013-21UM)
- Area Scan Camera, 1.3MP, GigE, Mono (MV-CA013-A0GM)
- Area Scan Camera, 1.3MP, USB3, Color (MV-CA013-A0UC)
- Area Scan Camera, 1.3MP, USB3, Mono (MV-CA013-A0UM)
Description
Supports hardware trigger, software trigger, and free-run modes. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CA013-A0GC |
|---|---|
| Type | Area Scan Camera, 1.3MP, GigE, Color |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4.8 μm |
| Sensor Size | 1/2" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 92.8 fps @ 1280 × 1024 |
| Dynamic Range | 54 dB |
| SNR | 40.6 dB |
| Gain | 0 dB to 16 dB |
| Exposure Time | 9 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 (YUYV) Packed, YUV 422 Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress Protection | IP30 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 2.7 W@12 VDC |
