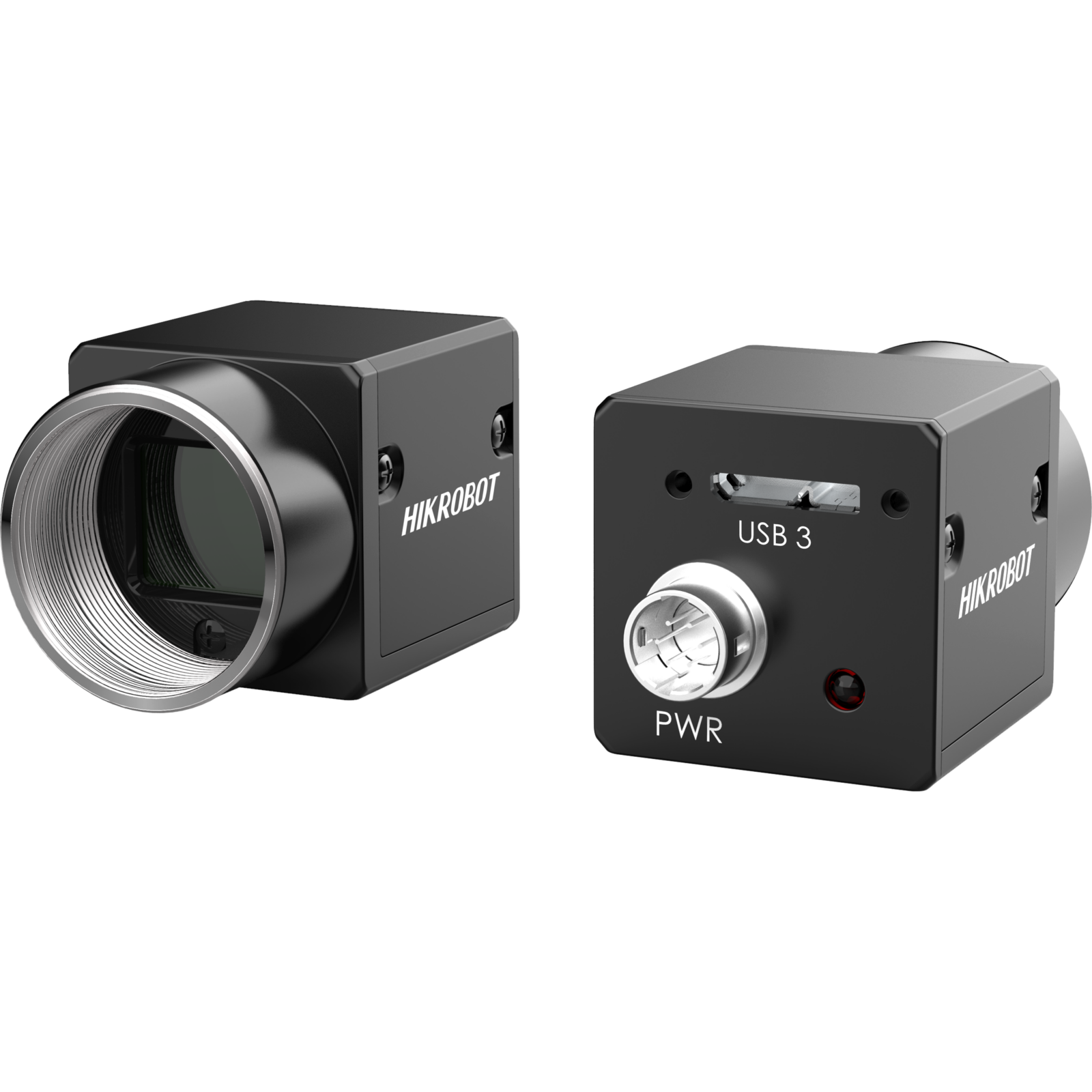

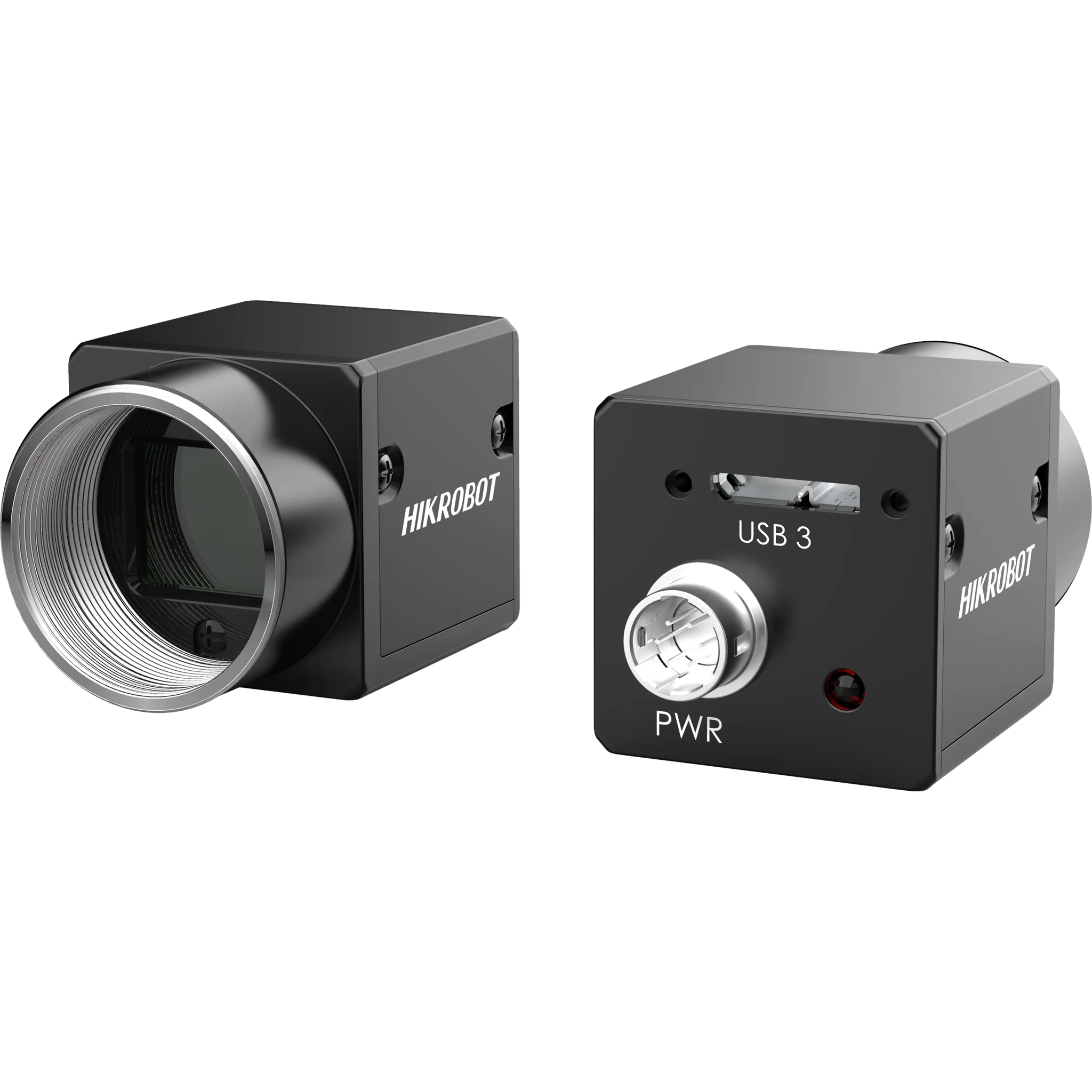

Area Scan Camera, 1.3MP, USB3, PYTHON1300, Mono

Name: Area Scan Camera, 1.3MP, USB3, PYTHON1300, Mono
Brand: HIKROBOT
SKU: MV-CA013-21UM

Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.

Send inquiry

Download datasheet (PDF)

Highlights

Offers auto and manual control of gain, exposure, LUT, and gamma correction.
Supports hardware triggering, software triggering, and free-run mode.
M2 screw holes lock down the USB3.0 cable.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CA013-21UM Category: Area & Line Scan Cameras

Area Scan Camera, 1.3MP, USB3, PYTHON1300, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CA013-21UM. Key data: resolution 1280 × 1024, sensor type CMOS, global shutter, max frame rate 210 fps @ 1280 × 1024, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Supports hardware triggering, software triggering, and free-run mode. M2 screw holes lock down the USB3.0 cable. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 1.3MP, USB3, PYTHON1300, Mono (MV-CA013-21UM) at a glance: 1280 × 1024 resolution, PYTHON1300 sensor, 1/2" sensor format, 4.8 μm × 4.8 μm pixel size, up to 210 fps, USB3.0, compatible with USB2.0 interface, C-mount lens mount and 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Offers auto and manual control of gain, exposure, LUT, and gamma correction. — Supports hardware triggering, software triggering, and free-run mode. — M2 screw holes lock down the USB3.0 cable. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CA013-21UM
Type	Area Scan Camera, 1.3MP, USB3, PYTHON1300, Mono
Sensor Type	CMOS, global shutter
Sensor Model	PYTHON1300
Pixel Size	4.8 μm × 4.8 μm
Sensor Size	1/2"
Resolution	1280 × 1024
Max Frame Rate	210 fps @ 1280 × 1024
Dynamic Range	59.6 dB
SNR	39.8 dB
Gain	0 dB to 15 dB
Exposure Time	40 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/10p/12/12p
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB3.0, compatible with USB2.0
Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power Supply	12 VDC, supports USB 3.0 power supply
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 56 g (0.12 lb.)
Ingress Protection	IP30 (under correct lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client Software	MVS or third-party software compatible with USB3 Vision Protocol
Operating System	32/64-bit Windows 7/10, 32/64-bit Linux
Compatibility	USB 3.0 Vision, GenlCam
Certification	CE, RoHS, KC
Mono	Mono
Power Consumption 2	Typ. 3 W @ 5 VDC (USB3.0 provides power supply)
Image Buffer	128 MB
