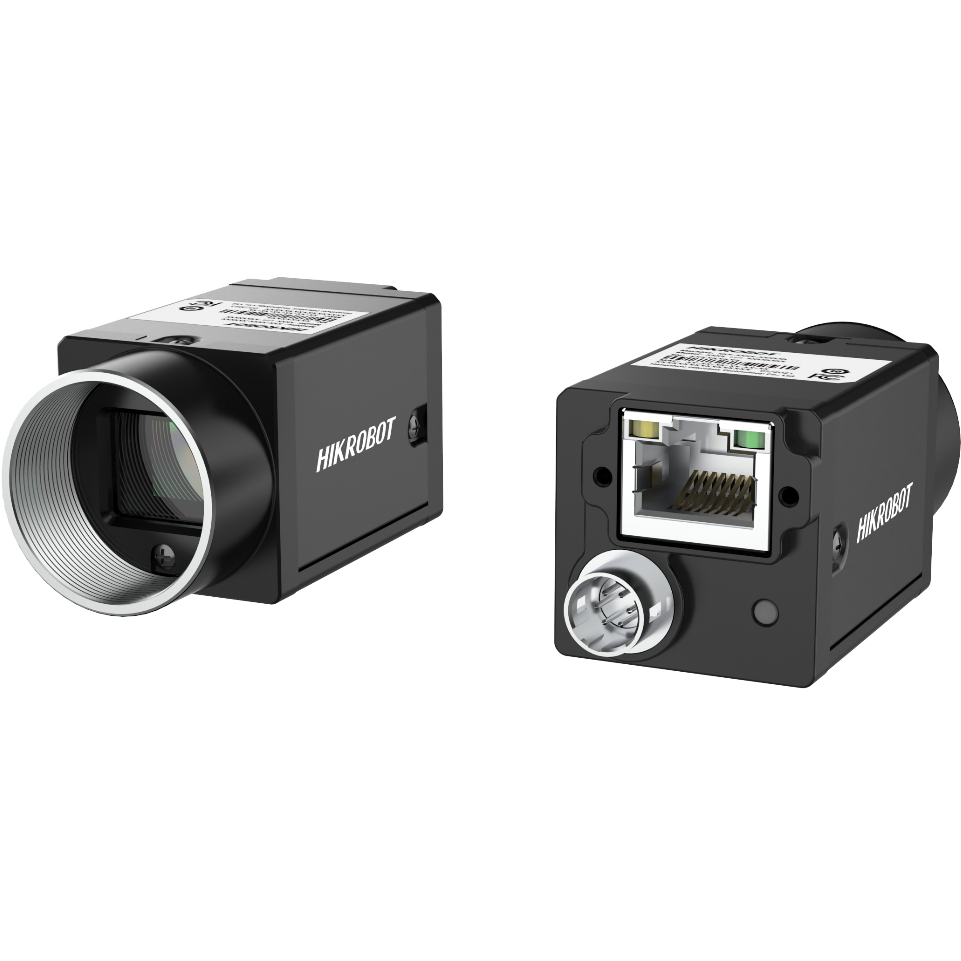

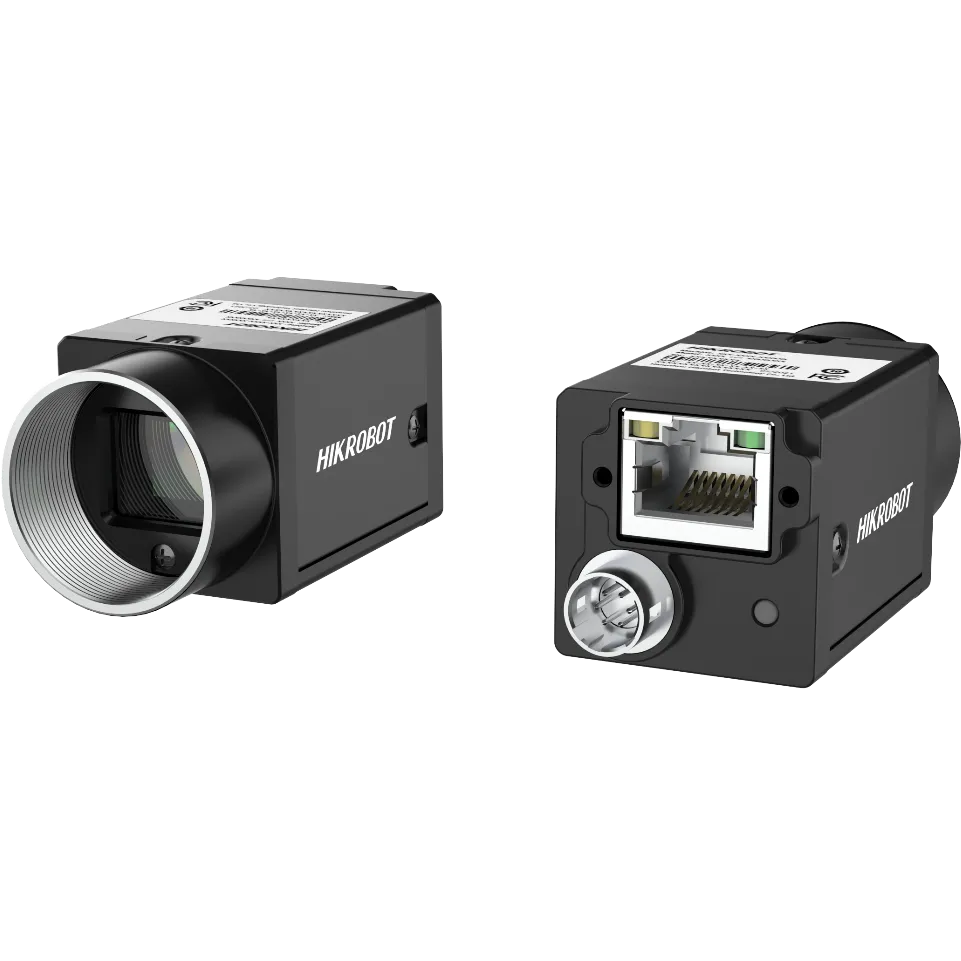

Area Scan Camera, 1.3MP, GigE, Mono, with PoE
Adopts low power consumption design with stable performance.
Camera Solutions
Beschreibung
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. Supports hardware trigger, software trigger, and free-run modes. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Low-power design with stable performance. — Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU013-A0GM |
|---|---|
| Type | Area Scan Camera, 1.3MP, GigE, Mono, with PoE |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4.8 μm × 4.8 μm |
| Sensor Size | 1/2" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 91.3 fps@1280 × 1024 Mono 8 |
| Dynamic Range | 54 dB |
| SNR | 40.6 dB |
| Gain | 0 dB to 16 dB |
| Exposure Time | 10 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, PoE is optional |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.8 W@12 VDC |
