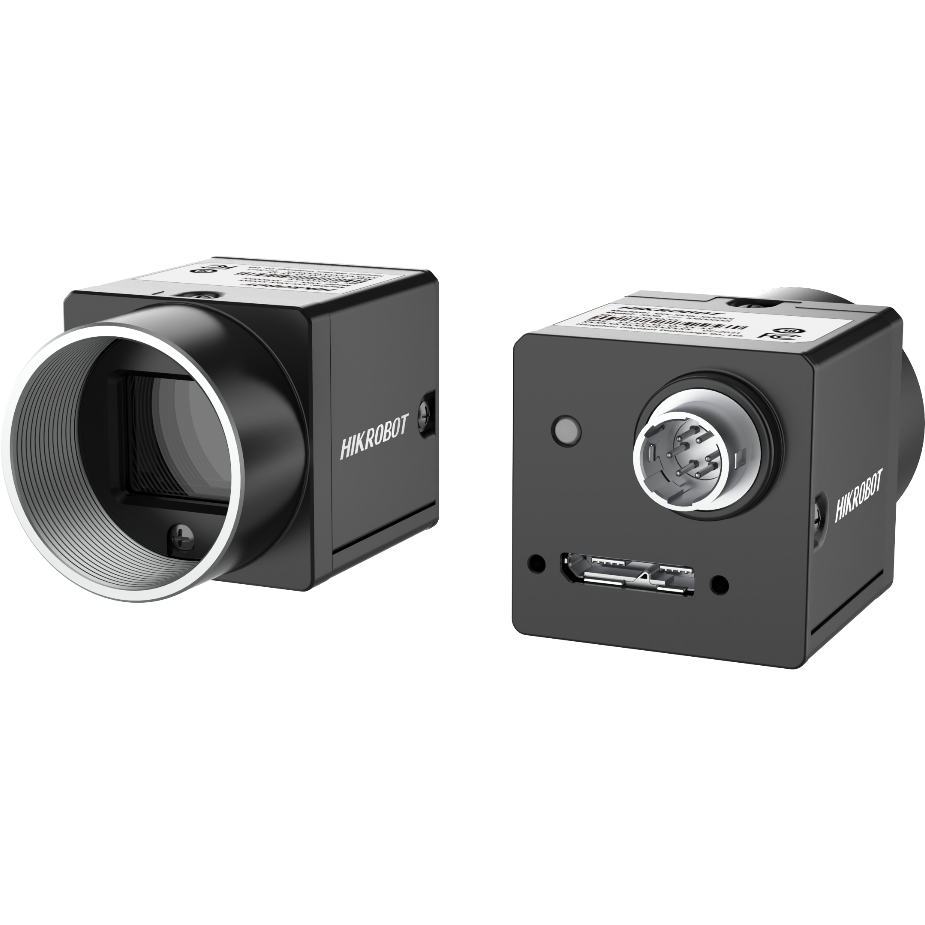

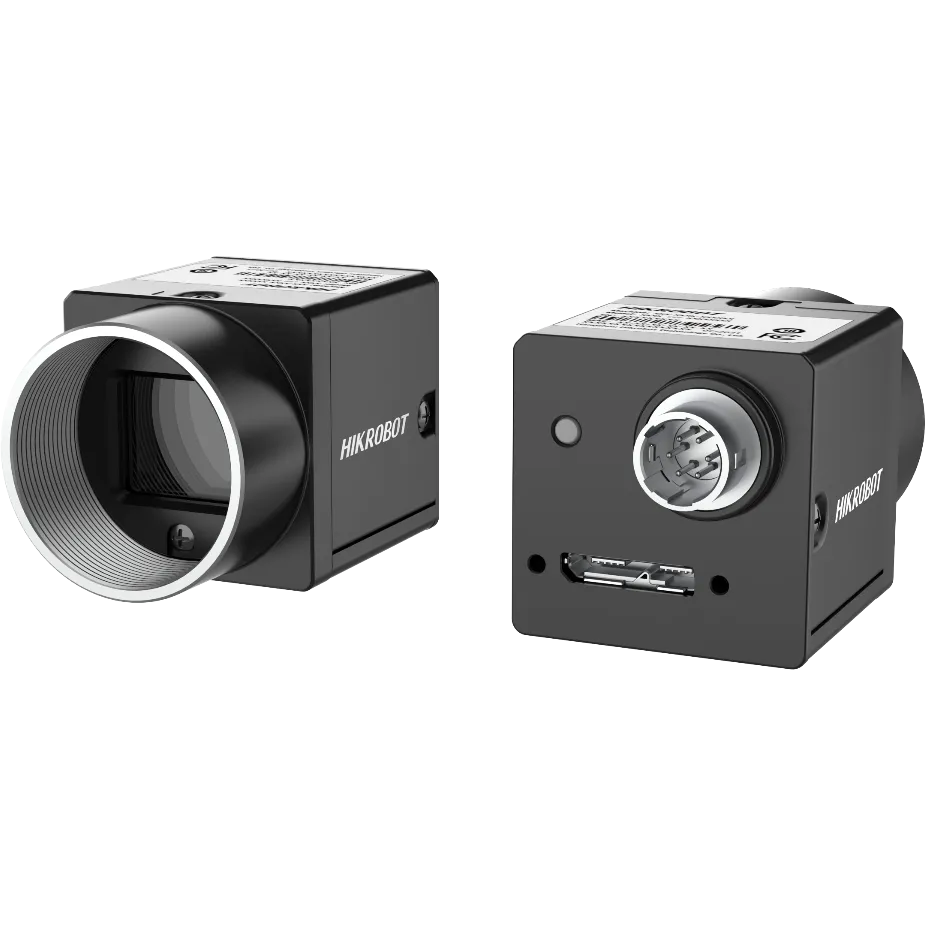

Area Scan Camera, 1.3MP, USB3, Color
Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports custom ROI and horizontal/vertical image flipping.
- Compact design for flexible installation.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 1.3MP, USB3, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU013-A0UC. Key data: resolution 1280 × 1024, sensor type CMOS, global shutter, max frame rate 201.4 fps@1280 × 1024 Bayer GB 8, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 1.3MP, USB3, SS, Mono (MV-CU013-80UM)
- Area Scan Camera, 1.3MP, GigE, Color, with PoE (MV-CU013-A0GC)
- Area Scan Camera, 1.3MP, GigE, V2, Color (MV-CU013-A0GC V2)
- Area Scan Camera, 1.3MP, GigE, Mono, with PoE (MV-CU013-A0GM)
- Area Scan Camera, 1.3MP, GigE, V2, Mono (MV-CU013-A0GM V2)
- Area Scan Camera, 1.3MP, USB3, Mono (MV-CU013-A0UM)
- Area Scan Camera, 1.3MP, GigE (MV-CU013-A1GC)
- Area Scan Camera, 1.3MP, USB3 (MV-CU013-A1UC)
Description
Supports custom ROI and horizontal/vertical image flipping. Compact design for flexible installation. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports custom ROI and horizontal/vertical image flipping. — Compact design for flexible installation. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CU013-A0UC |
|---|---|
| Type | Area Scan Camera, 1.3MP, USB3, Color |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4.8 μm × 4.8 μm |
| Sensor Size | 1/2" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 201.4 fps@1280 × 1024 Bayer GB 8 |
| Dynamic Range | 53 dB |
| SNR | 40 dB |
| Gain | 0 dB to 16 dB |
| Exposure Time | 5 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer GB 8/10/10Packed/12/12Packed |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 76 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.81 W@5 VDC (USB3.0 provides power supply) |
