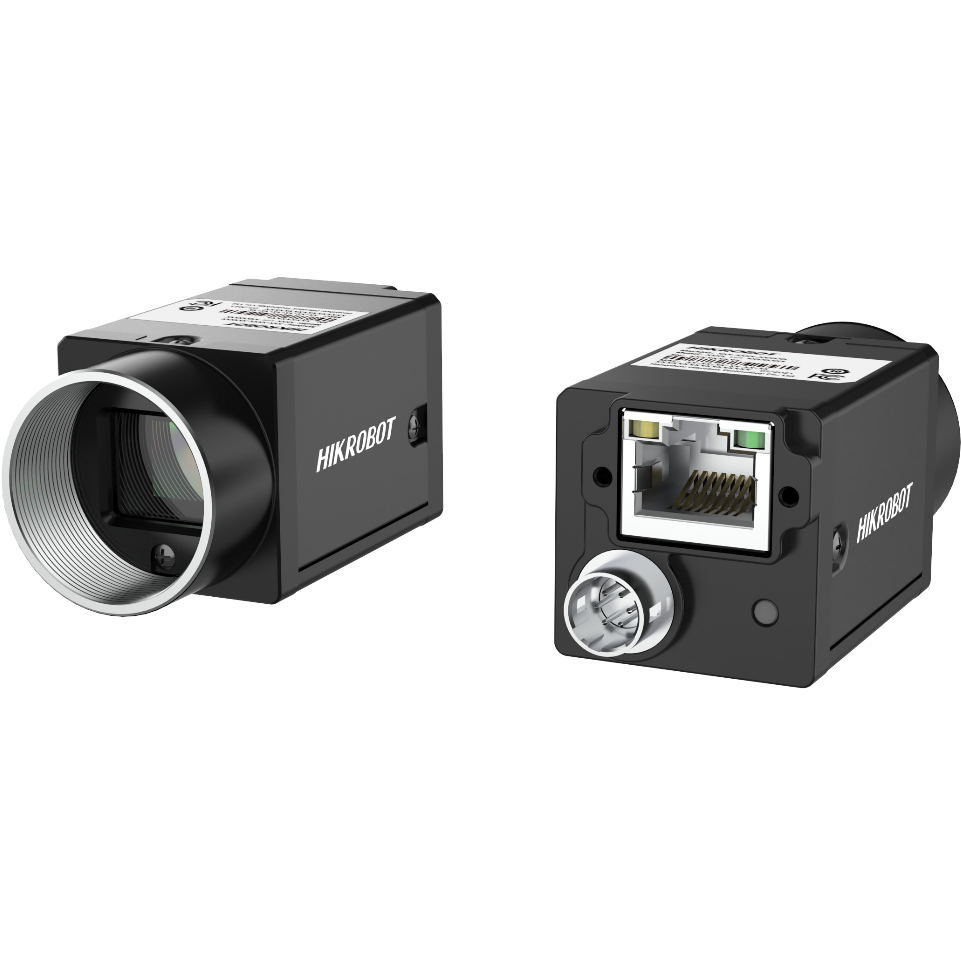

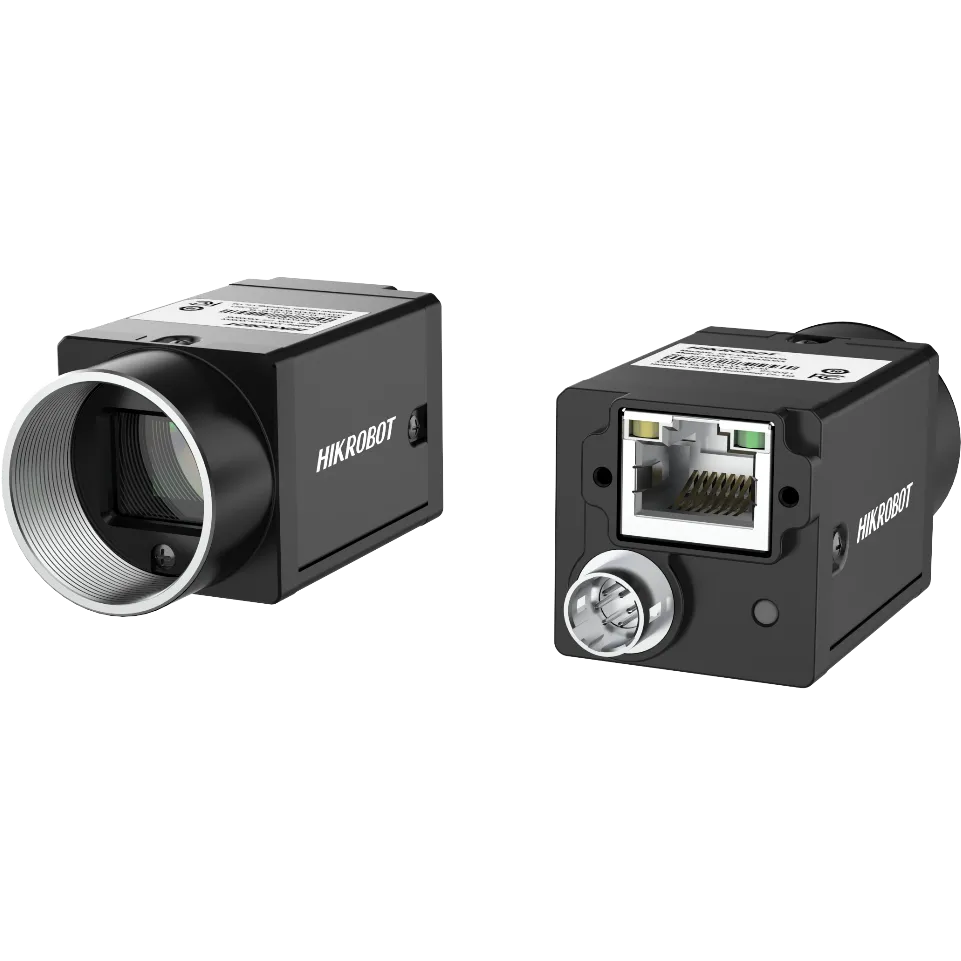

Area Scan Camera, 1.3MP, GigE, SS, Color
Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Offers auto or manual gain and exposure, plus manual LUT and gamma correction.
- Supports hardware trigger, software trigger, and free-run modes.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 1.3MP, GigE, SS, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CU013-80GC. Key data: resolution 1280 × 1024, sensor type CMOS, global shutter, max frame rate 89.9 fps @1280 × 1024 Bayer BG 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 1.3MP, GigE, SS, V2, Color (MV-CU013-80GC V2)
- Area Scan Camera, 1.3MP, GigE, SS, Mono (MV-CU013-80GM)
- Area Scan Camera, 1.3MP, GigE, SS, V2, Mono (MV-CU013-80GM V2)
- Area Scan Camera, 1.3MP, USB3, SS, Color (MV-CU013-80UC)
- Area Scan Camera, 1.3MP, USB3, SS, Mono (MV-CU013-80UM)
- Area Scan Camera, 1.3MP, GigE, Color, with PoE (MV-CU013-A0GC)
- Area Scan Camera, 1.3MP, GigE, V2, Color (MV-CU013-A0GC V2)
- Area Scan Camera, 1.3MP, GigE, Mono, with PoE (MV-CU013-A0GM)
Description
Supports hardware trigger, software trigger, and free-run modes. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CU013-80GC |
|---|---|
| Type | Area Scan Camera, 1.3MP, GigE, SS, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | SS |
| Pixel Size | 4.0 μm × 4.0 μm |
| Sensor Size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 89.9 fps @1280 × 1024 Bayer BG 8 |
| Dynamic Range | 54.5 dB |
| SNR | 39.2 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | 31 μs to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Bayer BG 8/10/10Packed/12/12Packed |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, PoE is optional |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.2 W@12 VDC |
