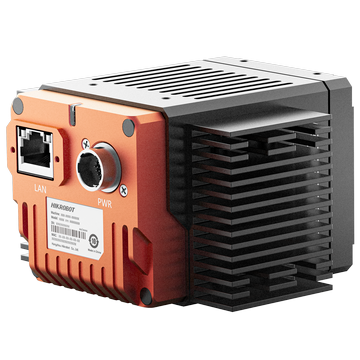

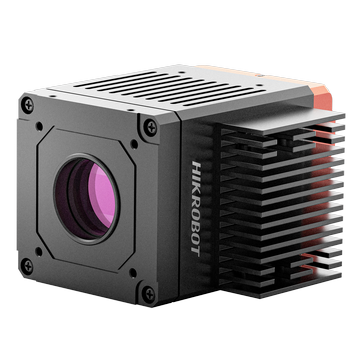

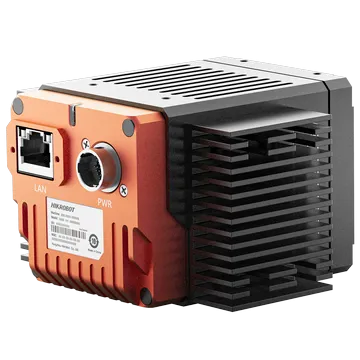

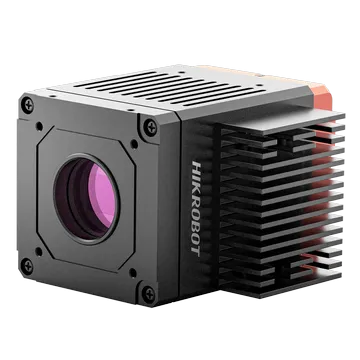

SWIR Camera, 1.3MP, IMX990, GigE, with TEC and heatsink, fanless
Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
TEC cooling for stable thermal performance. ISP functions including digital noise reduction and contrast adjustment. Compact structure meets tight spatial requirements. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
InGaAs sensor supports spectral imaging from 0.4 µm to 1.7 µm. — TEC cooling for stable thermal performance. — ISP functions including digital noise reduction and contrast adjustment. — Compact structure meets tight spatial requirements. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CI013-GS-TH |
|---|---|
| Type | SWIR Camera, 1.3MP, IMX990, GigE, with TEC and heatsink, fanless |
| Sensor Type | InGaAs |
| Sensor Model | Sony® IMX990 |
| Pixel Size | 5 μm × 5 μm |
| Sensor Size | 1/2" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 91 fps @ 1280 × 1024 Mono 8 |
| Dynamic Range | 56 dB |
| SNR | 52.2 dB |
| Gain | 0 dB to 18 dB |
| Exposure Time | UltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 58 mm × 94 mm × 82 mm (2.3" × 3.7" × 3.2") |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 50 °C (–22 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS |
| Power Consumption 2 | Typ. 11.7 W @ 12 VDC (TEC enabled) |
