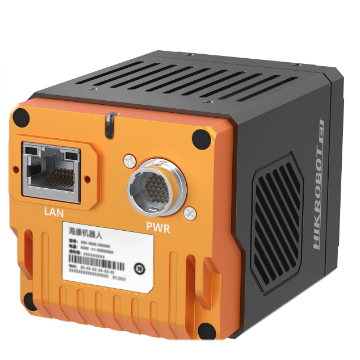

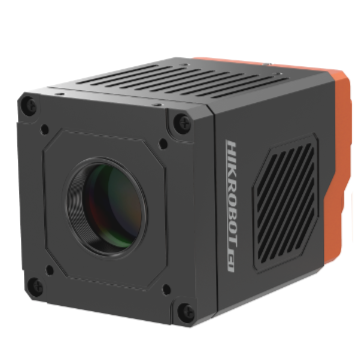

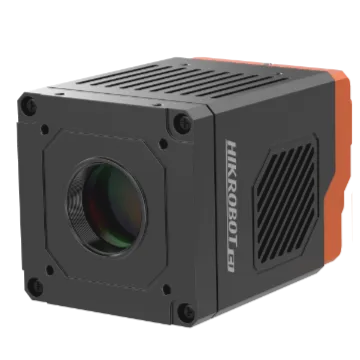

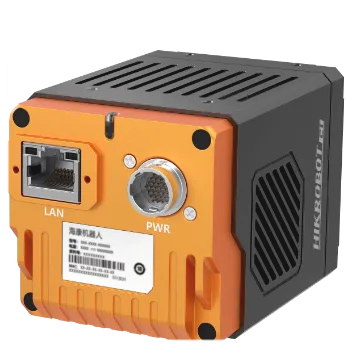

SWIR Camera, 1.3MP, IMX990, GigE, with TEC and fan
Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- InGaAs sensor supports spectral imaging from 0.4 µm to 1.7 µm.
- TEC cooling for stable thermal performance.
- ISP functions including digital noise reduction and contrast adjustment.
- Compact structure meets tight spatial requirements.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
SWIR Camera, 1.3MP, IMX990, GigE, with TEC and fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CI013-GS-TF. Key data: resolution 1280 × 1024, sensor type InGaAs, max frame rate 91 fps @ 1280 × 1024. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
TEC cooling for stable thermal performance. ISP functions including digital noise reduction and contrast adjustment. Compact structure meets tight spatial requirements. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
InGaAs sensor supports spectral imaging from 0.4 µm to 1.7 µm. — TEC cooling for stable thermal performance. — ISP functions including digital noise reduction and contrast adjustment. — Compact structure meets tight spatial requirements. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CI013-GS-TF |
|---|---|
| Type | SWIR Camera, 1.3MP, IMX990, GigE, with TEC and fan |
| Sensor Type | InGaAs |
| Sensor Model | Sony® IMX990 |
| Pixel Size | 5 μm × 5 μm |
| Sensor Size | 1/2" |
| Resolution | 1280 × 1024 |
| Max Frame Rate | 91 fps @ 1280 × 1024 |
| Dynamic Range | 56 dB |
| SNR | 52.2 dB |
| Gain | 0 dB to 18 dB |
| Exposure Time | UltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | C-mount |
| Dimension | 58 mm × 58 mm × 82 mm (2.3" × 2.3" × 3.2") |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 50 °C (–22 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 11.7 W @ 12 VDC (TEC enabled) |
| Installation Method | Installation via three-side screw holes |
