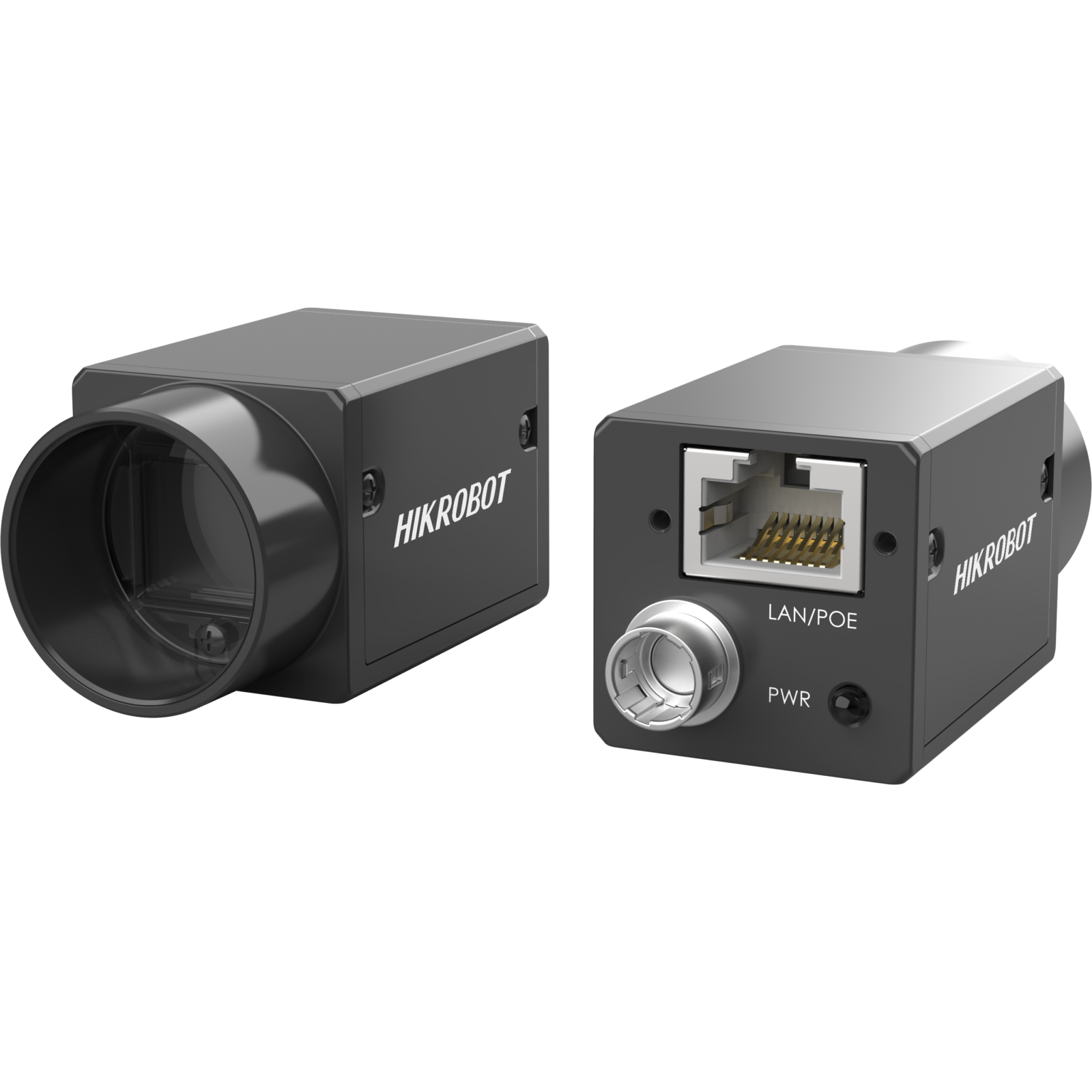

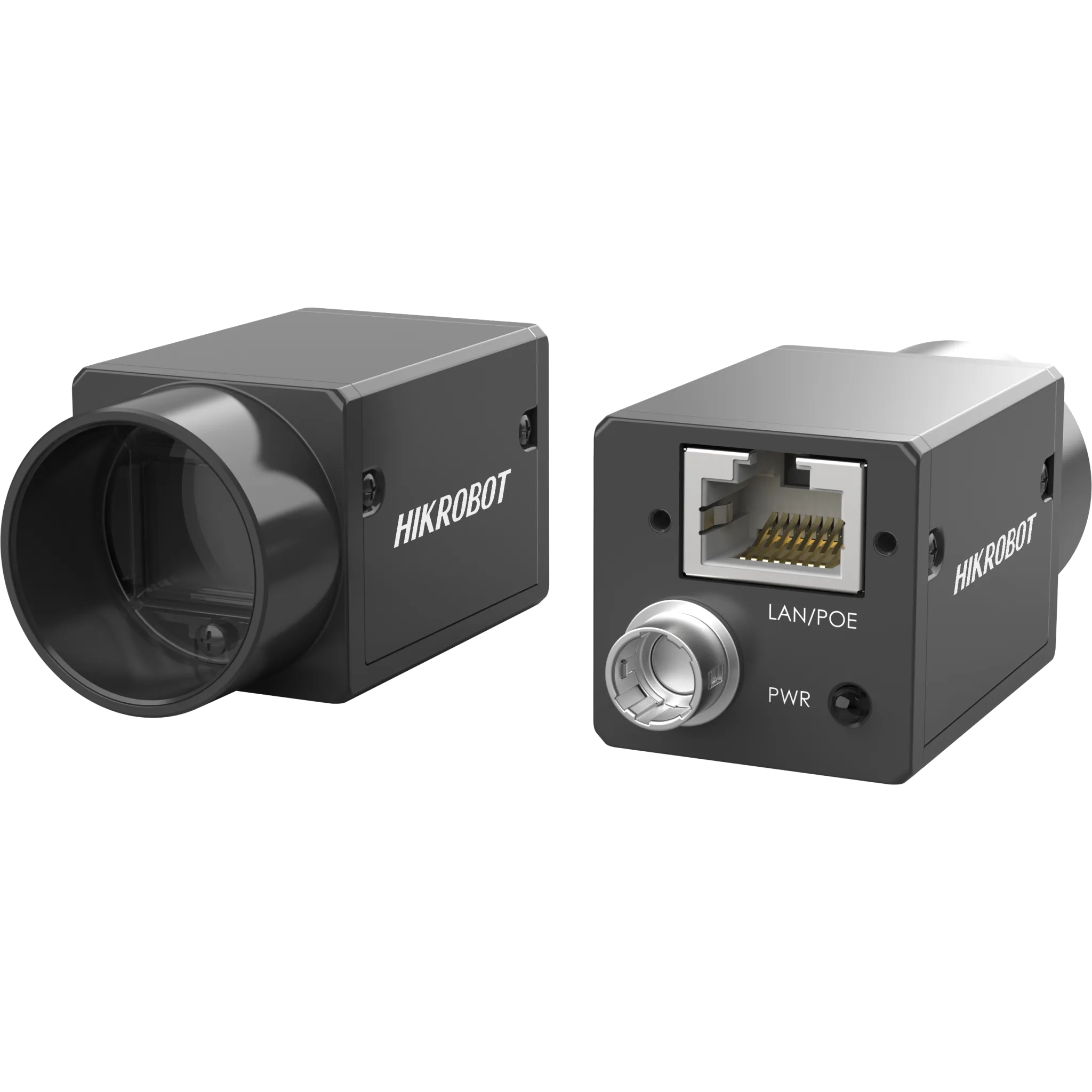

Area Scan Camera, 10MP, GigE, IMT9J003, Color
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Camera Solutions
Beschreibung
Up to 128 MB of onboard memory supports burst transmission and retransmission. Offers auto exposure control, LUT, and gamma correction. Supports hardware and software triggering, among other modes. Works with the GigE Vision V1.2 protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Connects via GigE, with cable runs up to 100 m and no repeater required. — Up to 128 MB of onboard memory supports burst transmission and retransmission. — Offers auto exposure control, LUT, and gamma correction. — Supports hardware and software triggering, among other modes. — Works with the GigE Vision V1.2 protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CE100-30GC |
|---|---|
| Type | Area Scan Camera, 10MP, GigE, IMT9J003, Color |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | MT9J003 |
| Pixel Size | 1.67 μm × 1.67 μm |
| Sensor Size | 1/2.3" |
| Resolution | 3840 × 2748 |
| Max Frame Rate | 7 fps @ 3840 × 2748 |
| Dynamic Range | 65 dB |
| SNR | 34 dB |
| Gain | 0 dB to 15.3 dB |
| Exposure Time | 50 μs to 2 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer GR 8/10/10p/12/12p YUV422Packed,YUV422_YUYV_Packed, RGB 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not support |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 12 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V1.2, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 2.6 W @ 12 VDC |
| Image Buffer | 128 MB |
