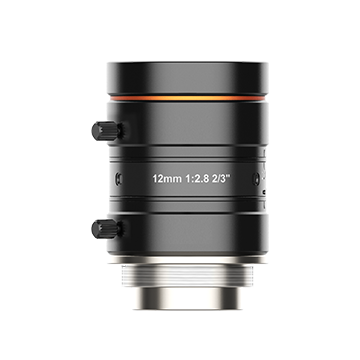

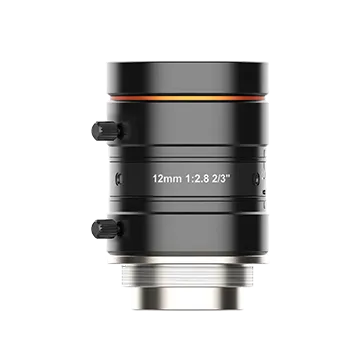

C-Mount Lens, 12mm, F2.8, 2/3″, 8MP
Ultra-high resolution and consistency of image clarity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Ultra-low distortion and higher relative illumination. Achromatic optical design improves imaging on colour cameras. Good optical performance at ultra-short working distances. Compact design with excellent vibration resistance and stable performance at high and low temperatures.
Product Highlights
Ultra-high resolution with consistent image clarity. — Ultra-low distortion and higher relative illumination. — Achromatic optical design improves imaging on colour cameras. — Good optical performance at ultra-short working distances. — Compact design with excellent vibration resistance and stable performance at high and low temperatures.
Specifications
| Product Model | MVL-MF1228M-8MP |
|---|---|
| Type | C-Mount Lens, 12mm, F2.8, 2/3″, 8MP |
| Focal Length | 12 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø11 mm (2/3") |
| Distortion | 0.28% |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (11.1 mm): 48.57° H (8.45 mm): 37.88° V (7.07 mm): 32.04° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M30.5 × 0.5 |
| Mount | C-Mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø32 mm × 39.4 mm (Ø1.3" × 1.6") |
| Weight | 75.1 g (0.2 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
