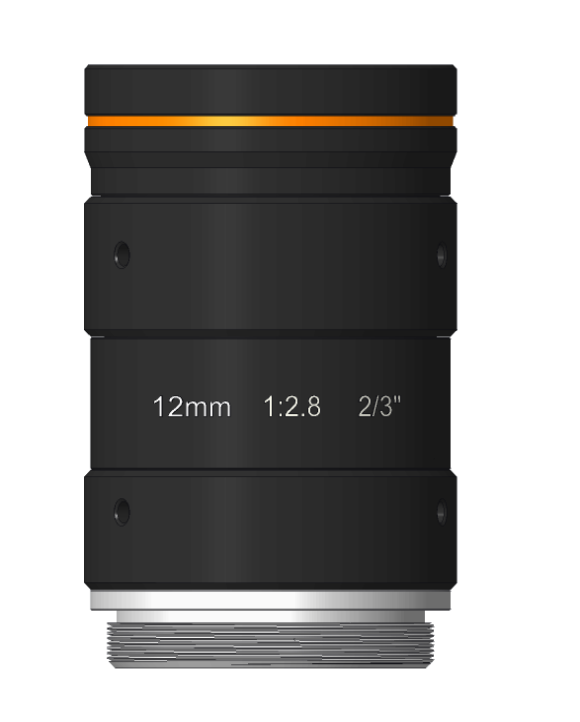

C-Mount Lens, 12mm, F2.8, 2/3″, 10MP
High resolution and consistency of image clarity
- High resolution with consistent image clarity.
- Lower distortion and higher relative illumination.
- Excellent performance at both high and low temperatures.
- Good optical performance at short working distances.
Camera Solutions
C-Mount Lens, 12mm, F2.8, 2/3″, 10MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-MF1228M-10MPE. Key data: focal length 12 mm, f number F2.8 to F16, mount C-mount, image size Ø11.2 mm (2/3"). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Lower distortion and higher relative illumination. Excellent performance at both high and low temperatures. Good optical performance at short working distances.
Product Highlights
High resolution with consistent image clarity. — Lower distortion and higher relative illumination. — Excellent performance at both high and low temperatures. — Good optical performance at short working distances.
Specifications
| Product Model | MVL-MF1228M-10MPE |
|---|---|
| Type | C-Mount Lens, 12mm, F2.8, 2/3″, 10MP |
| Focal Length | 12 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø11.2 mm (2/3") |
| Distortion | –0.19% |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (11.01 mm): 47.66° H (8.45 mm): 37.47° V (7.07 mm): 31.67° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M25.5 × P0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø29 mm × 39.9 mm (Ø1.1" × 1.6") |
| Weight | 59 g (0.1 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
