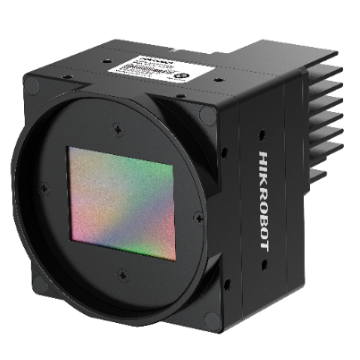

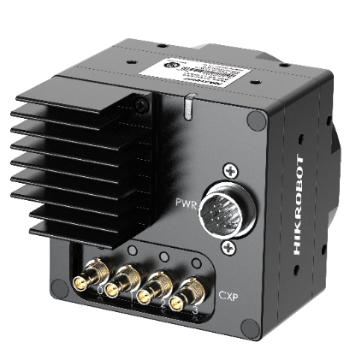

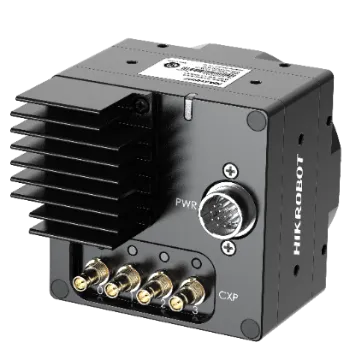

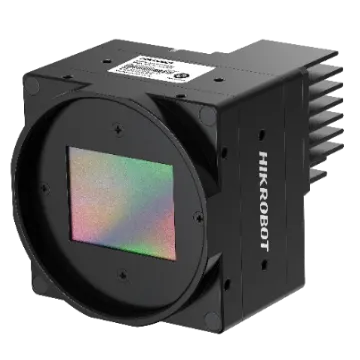

Area Scan Camera, 12MP, CMV12000, CXP-6, Mono, M58-mount, Fanless
Resolution of 4096 × 3072, pixel size of 5.5 µm × 5.5 µm.
- Resolution of 4096 × 3072 with 5.5 µm × 5.5 µm pixels.
- A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
- Supports LSC Sequencer polling.
- Transmits data over a CXP-6 interface.
- Works with the CoaXPress protocol and the GenICam standard.
Camera Solutions
Area Scan Camera, 12MP, CMV12000, CXP-6, Mono, M58-mount, Fanless is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH120-40XM-M58S-NN. Key data: resolution 4096 × 3072, sensor type CMOS, global shutter, max frame rate 188 fps @ 4096 × 3072 Mono 8, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 12MP, GigE, XGS12000, Color, V4 (MV-CH120-20GC)
- Area Scan Camera, 12MP, GigE, XGS12000, Mono, V4 (MV-CH120-20GM)
- Area Scan Camera, 12MP, USB3, XGS12000, Color, V4 (MV-CH120-20UC)
- Area Scan Camera, 12MP, USB3, XGS12000, Mono, V4 (MV-CH120-20UM)
- Area Scan Camera, 12MP, GigE, Color (MV-CH120-60GC)
- Area Scan Camera, 12MP, GigE, V5, Color (MV-CH120-60GC V5)
- Area Scan Camera, 12MP, GigE, Mono (MV-CH120-60GM)
- Area Scan Camera, 12MP, GigE, V5, Mono (MV-CH120-60GM V5)
Description
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Supports LSC Sequencer polling. Transmits data over a CXP-6 interface. Works with the CoaXPress protocol and the GenICam standard.
Product Highlights
Resolution of 4096 × 3072 with 5.5 µm × 5.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Supports LSC Sequencer polling. — Transmits data over a CXP-6 interface. — Works with the CoaXPress protocol and the GenICam standard.
Specifications
| Product Model | MV-CH120-40XM-M58S-NN |
|---|---|
| Type | Area Scan Camera, 12MP, CMV12000, CXP-6, Mono, M58-mount, Fanless |
| Sensor Type | CMOS, global shutter |
| Sensor Model | AMS CMV12000 |
| Pixel Size | 5.5 μm × 5.5 μm |
| Sensor Size | 22.5 mm × 16.9 mm |
| Resolution | 4096 × 3072 |
| Max Frame Rate | 188 fps @ 4096 × 3072 Mono 8 |
| Dynamic Range | 55.2 dB |
| SNR | 39.5 dB |
| Gain | Supports 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure Time | 20 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") |
| Weight | Approx. 269 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 30 °C (32 °F to 86 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC, UL |
| Mono | Mono |
| Power Consumption 2 | Typ. 11.6 W @ 12 VDC |
