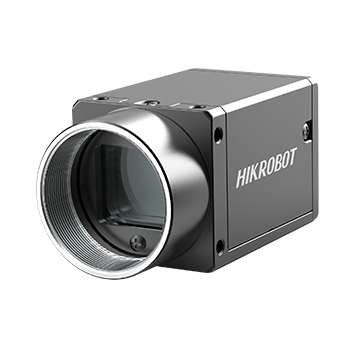

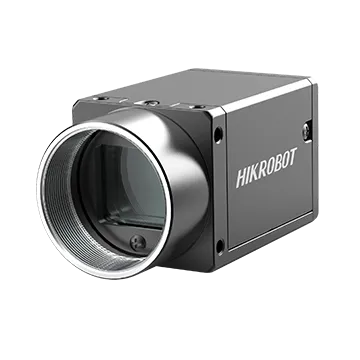

Area Scan Camera, 12MP, GigE, XGS12000, Mono, V4
Supports auto or manual adjustment for gain and exposure time, and manual adjustment for LUT and Gamma correction.
Camera Solutions
Beschreibung
Supports LSC, Sequencer, and passive transmission. Colour models support white balance, CCM, Super Palette, and Super Bayer. Connects via GigE, with cable runs up to 100 m and no repeater required. Compact body with panel mounting holes on four sides for flexible setup. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Offers auto or manual gain and exposure, plus manual LUT and gamma correction. — Supports LSC, Sequencer, and passive transmission. — Colour models support white balance, CCM, Super Palette, and Super Bayer. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH120-20GM |
|---|---|
| Type | Area Scan Camera, 12MP, GigE, XGS12000, Mono, V4 |
| Sensor Type | CMOS, global shutter |
| Sensor Model | OnSemi XGS12000 |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 1" |
| Resolution | 4096 × 3072 |
| Max Frame Rate | 9.6 fps @ 4096 × 3072 Mono 8 |
| Dynamic Range | 66.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 18 dB |
| Exposure Time | UltraShort exposure mode: 52 μs to 161 μs Standard exposure mode: 162 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

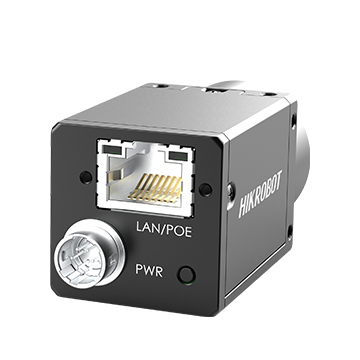

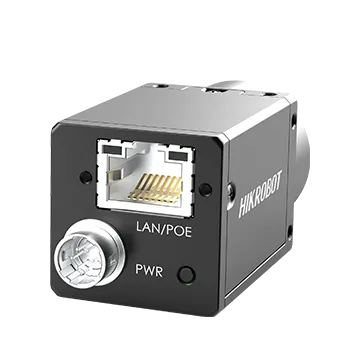

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.6 W @ 12 VDC |
