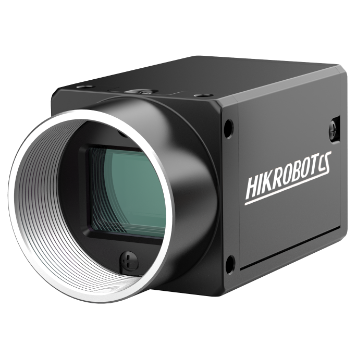

Area Scan Camera, 12MP, GigE, V5, Color
Provides optimized hardware design, stable performance, and low power consumption.
- Optimised hardware design with stable performance and low power consumption.
- Offers auto or manual gain and exposure adjustment.
- Supports hardware trigger, software trigger, and free-run mode.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 12MP, GigE, V5, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS120-10GC V5. Key data: resolution 4024 × 3036, sensor type CMOS, rolling shutter, max frame rate 10 fps @ 4024 × 3036 Bayer RG 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Offers auto or manual gain and exposure adjustment. Supports hardware trigger, software trigger, and free-run mode. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Optimised hardware design with stable performance and low power consumption. — Offers auto or manual gain and exposure adjustment. — Supports hardware trigger, software trigger, and free-run mode. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CS120-10GC V5 |
|---|---|
| Type | Area Scan Camera, 12MP, GigE, V5, Color |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX226 |
| Pixel Size | 1.85 μm × 1.85 μm |
| Sensor Size | 1/1.7” |
| Resolution | 4024 × 3036 |
| Max Frame Rate | 10 fps @ 4024 × 3036 Bayer RG 8 |
| Dynamic Range | 69.4 dB |
| SNR | 42.3 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | 33 μs to 2 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports Rolling and Global Reset mode |
| Pixel Format | Mono 8 Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

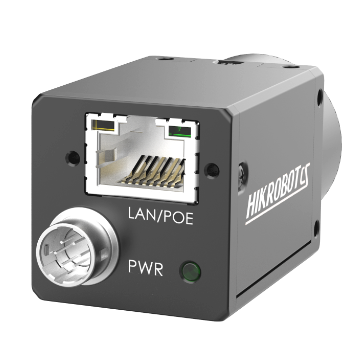

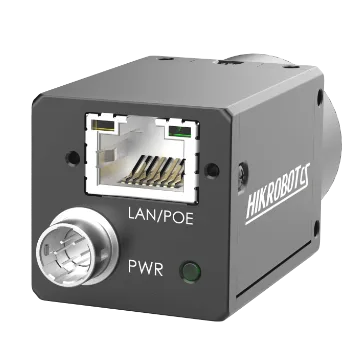

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.5 W @ 12 VDC |
