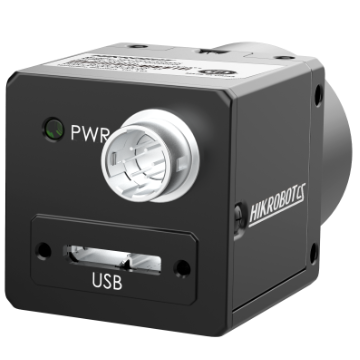

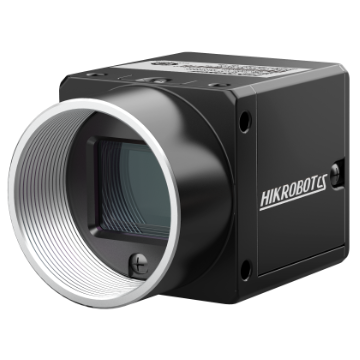

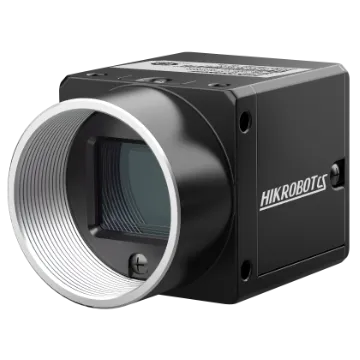

Area Scan Camera, 12MP, USB3.0, Color
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
- Compact body with panel mounting holes on four sides for flexible setup.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 12MP, USB3.0, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS120-10UC. Key data: resolution 4024 × 3036, sensor type CMOS, rolling shutter, max frame rate 29.4 fps @ 4024 × 3036 Bayer RG 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS120-10UC |
|---|---|
| Type | Area Scan Camera, 12MP, USB3.0, Color |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX226 |
| Pixel Size | 1.85 μm × 1.85 μm |
| Sensor Size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max Frame Rate | 29.4 fps @ 4024 × 3036 Bayer RG 8 |
| Dynamic Range | 70.5 dB |
| SNR | 40.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 12 μs to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset and Rolling |
| Pixel Format | Mono 8 Bayer RG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.5 W @ 5 VDC (USB 3.0 provides power supply) |
