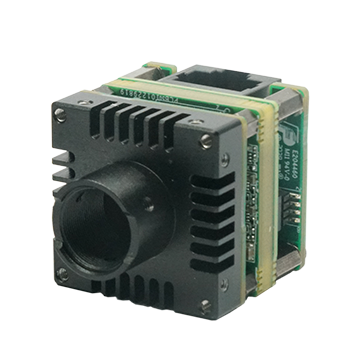

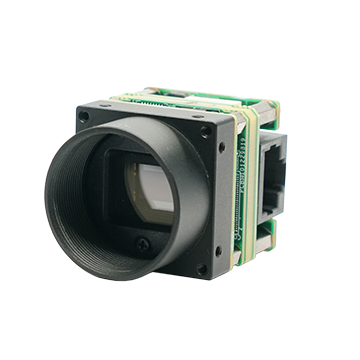

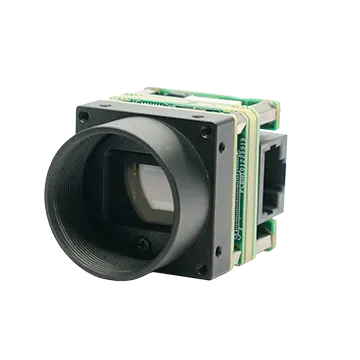

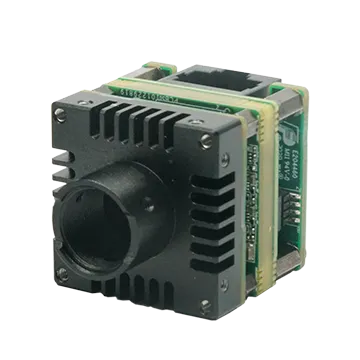

Board Level Camera, 12MP, GigE, IMX226, mono, C-mount
Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
- Offers auto or manual gain, exposure, white balance, gamma correction, LUT, and binning.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Board Level Camera, 12MP, GigE, IMX226, mono, C-mount is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CB120-10GM-C. Key data: resolution 4024 × 3036, sensor type CMOS, rolling shutter, max frame rate 9.7 fps @ 4024 × 3036 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-20GC)
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-21UC)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, BASE (MV-CT0CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, PRO (MV-CT1CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, BASE (MV-CT0MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, MAX (MV-CT2MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, PRO (MV-CT1MG0004/G/NN/NN)
Description
Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Offers auto or manual gain, exposure, white balance, gamma correction, LUT, and binning. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CB120-10GM-C |
|---|---|
| Type | Board Level Camera, 12MP, GigE, IMX226, mono, C-mount |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX226 |
| Pixel Size | 1.85 μm × 1.85 μm |
| Sensor Size | 1/1.7" |
| Resolution | 4024 × 3036 |
| Max Frame Rate | 9.7 fps @ 4024 × 3036 Mono 8 |
| Dynamic Range | 70.5 dB |
| SNR | 40.5 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | 34 μs to 2 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount or M12-mount |
| Dimension | 29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 45 g (0.1 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | RoHS |
| Power Consumption 2 | Typ. 1.9 W @ 12 VDC |
