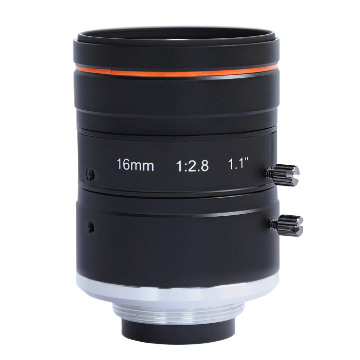

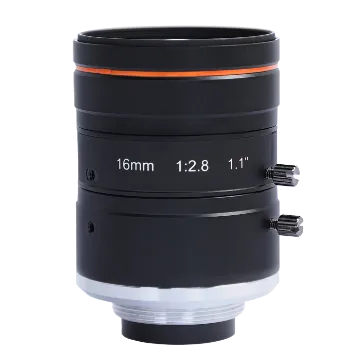

C-Mount Lens, 16mm, F2.8, 1.1″, 12MP
High resolution, high definition of the whole image
- High resolution with consistent full-image sharpness.
- Low distortion and high relative illumination.
- Maximum image circle of 1.1″.
- Ultra-short working distance with stable optical properties across object distances.
Camera Solutions
C-Mount Lens, 16mm, F2.8, 1.1″, 12MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-KF1628M-12MP. Key data: focal length 16 mm, f number F2.8 to F16, mount C-mount, image size Ø17.6 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Low distortion and high relative illumination. Maximum image circle of 1.1″. Ultra-short working distance with stable optical properties across object distances.
Product Highlights
High resolution with consistent full-image sharpness. — Low distortion and high relative illumination. — Maximum image circle of 1.1″. — Ultra-short working distance with stable optical properties across object distances.
Specifications
| Product Model | MVL-KF1628M-12MP |
|---|---|
| Type | C-Mount Lens, 16mm, F2.8, 1.1″, 12MP |
| Focal Length | 16 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø17.6 mm |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (17.52mm): 54.8° H (14.14mm): 44.9° V (10.35mm): 33.9° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M35.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø38.6 mm × 48.56 mm (Ø1.5" × 1.9") |
| Weight | 146 g (0.3 lb.) |
| Temperature | –10°C to 50°C (14°F to 122°F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –1.30% |
