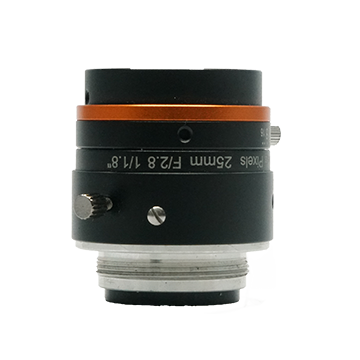

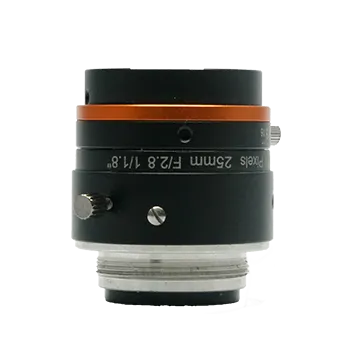

C-Mount Lens, 25mm, F2.8, 1/1.8″, 6MP
Higher image clarity and contrast ratio
- High image clarity and contrast ratio.
- Ultra-low distortion and higher relative illumination.
- Good optical performance at ultra-short working distances.
- Compact design simplifies device integration.
Camera Solutions
C-Mount Lens, 25mm, F2.8, 1/1.8″, 6MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-HF2528M-6MPE. Key data: focal length 25 mm, f number F2.8 to F16, mount C-mount, image size Ø9 mm (1/1.8''). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Ultra-low distortion and higher relative illumination. Good optical performance at ultra-short working distances. Compact design simplifies device integration.
Product Highlights
High image clarity and contrast ratio. — Ultra-low distortion and higher relative illumination. — Good optical performance at ultra-short working distances. — Compact design simplifies device integration.
Specifications
| Product Model | MVL-HF2528M-6MPE |
|---|---|
| Type | C-Mount Lens, 25mm, F2.8, 1/1.8″, 6MP |
| Focal Length | 25 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø9 mm (1/1.8'') |
| Distortion | –0.028% |
| Minimum Object Distance | 0.2 m |
| Field Of View | D (8.96 mm): 20.32° H (7.38 mm): 16.77° V (4.92 mm): 11.24° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M27 × P0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø33 mm × 30.22 mm (Ø1.3'' x 1.2'') |
| Weight | 48.1 g (0.1 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
