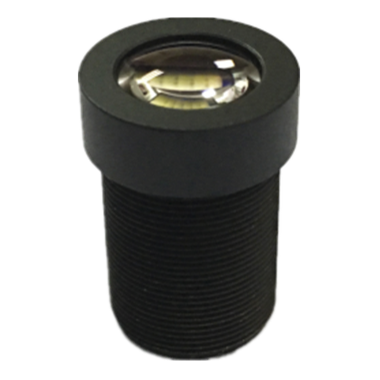

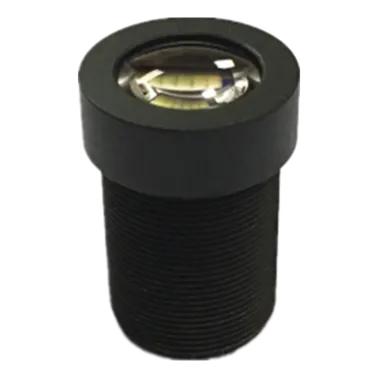

M12-Mount Lens, 16mm, F2.8, 1/1.8″, 5MP
Optimization design for machine vision
- Optimised design for machine vision.
- High resolution with consistent image clarity.
- Low distortion and high relative illumination.
- S-Mount (M12 × 0.5) for easy system integration.
Camera Solutions
M12-Mount Lens, 16mm, F2.8, 1/1.8″, 5MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-HF1628-05S. Key data: focal length 16 mm, f number F2.8, mount S-Mount, image size Φ9 mm(1/1.8''). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
High resolution with consistent image clarity. Low distortion and high relative illumination. S-Mount (M12 × 0.5) for easy system integration.
Product Highlights
Optimised design for machine vision. — High resolution with consistent image clarity. — Low distortion and high relative illumination. — S-Mount (M12 × 0.5) for easy system integration.
Specifications
| Product Model | MVL-HF1628-05S |
|---|---|
| Type | M12-Mount Lens, 16mm, F2.8, 1/1.8″, 5MP |
| Focal Length | 16 mm |
| Mount | S-Mount |
| Dimension | Φ14 mm × 13.78 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Field Of View 2 | D(8.86 mm):31° H(7.37 mm):26° V(4.91 mm):17° |
| F Number 2 | F2.8 |
| Image Size 2 | Φ9 mm(1/1.8'') |
| Working Distance Range 2 | 100 ~ 850 mm |
| Tv Distortion 2 | <0.1% |
| TTL | 19.3 ~ 22.2 mm |
