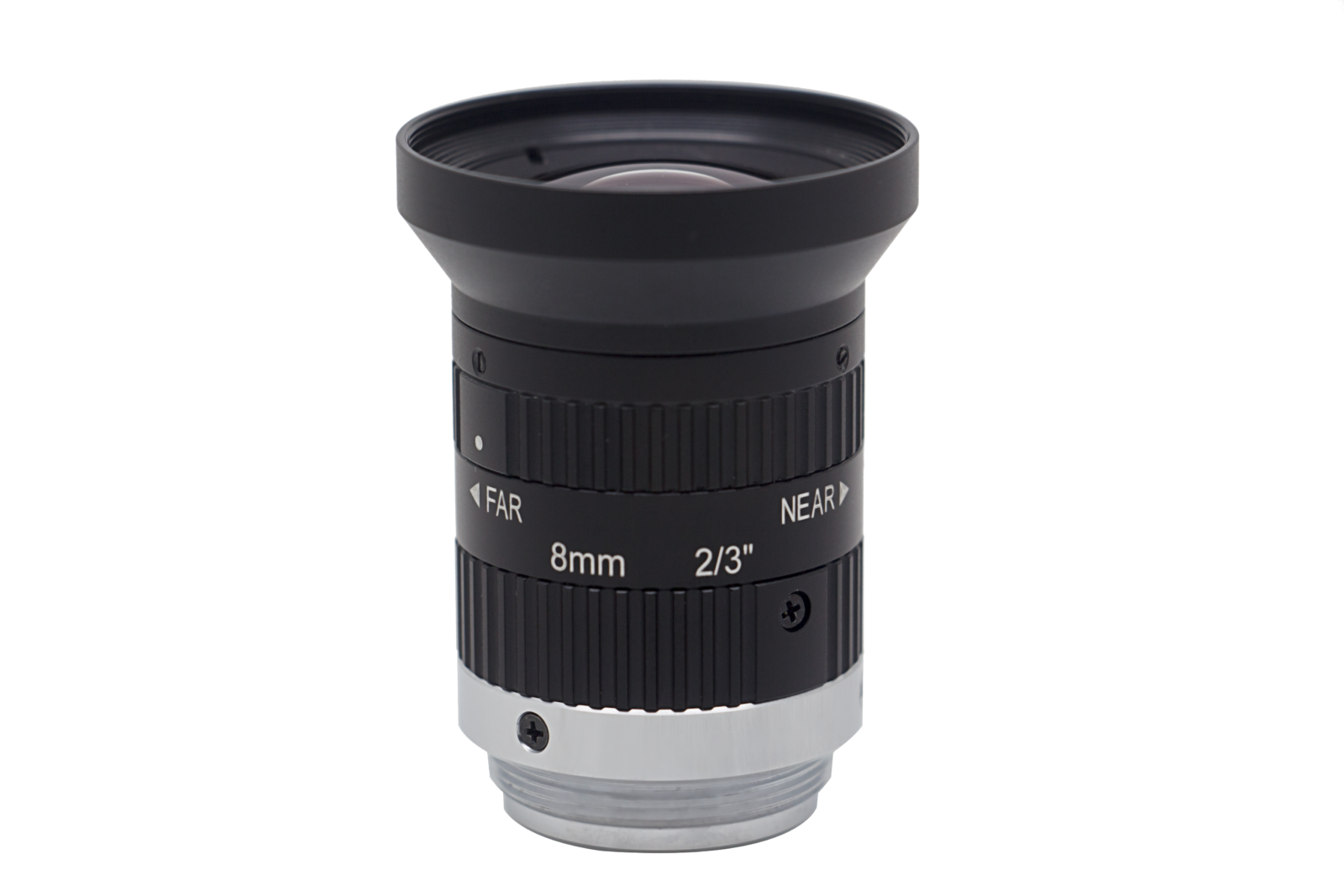

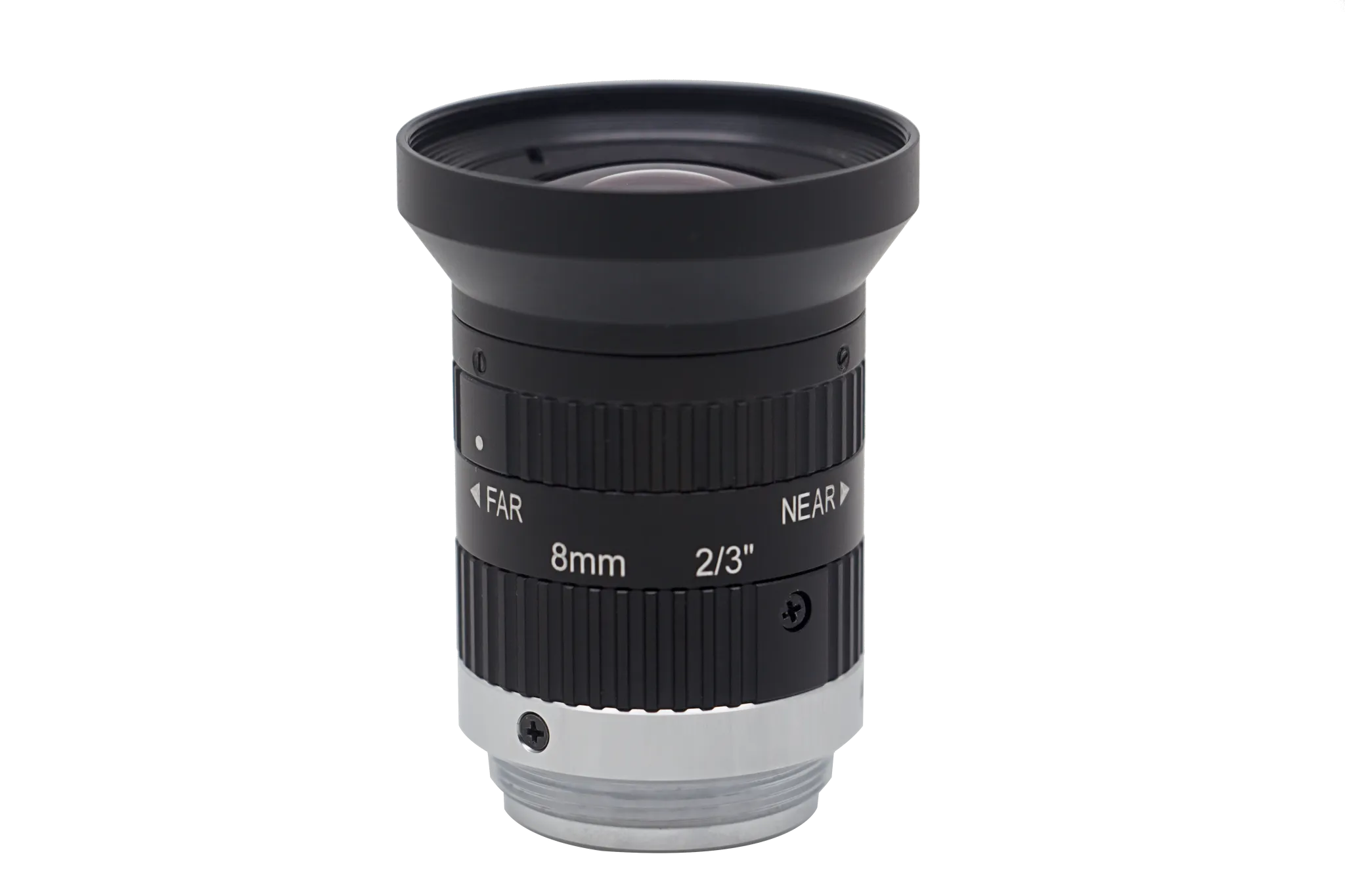

C-Mount Lens, 8mm, F2.4, 2/3″, 5MP
High resolution and consistency of image clarity.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Lower distortion and higher relative illumination. Achromatic optical design improves imaging on colour cameras. Excellent performance at both high and low temperatures. Good optical performance at ultra-short working distances.
Product Highlights
High resolution with consistent image clarity. — Lower distortion and higher relative illumination. — Achromatic optical design improves imaging on colour cameras. — Excellent performance at both high and low temperatures. — Good optical performance at ultra-short working distances.
Specifications
| Product Model | MVL-MF0824M-5MPE |
|---|---|
| Type | C-Mount Lens, 8mm, F2.4, 2/3″, 5MP |
| Focal Length | 8 mm |
| F Number | F2.4 to F16 |
| Image Size | Ø11 mm (2/3'') |
| Minimum Object Distance | 0.1 m |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M35.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø37 mm × 43.8 mm to 45.1 mm (Ø1.5" × 1.7" to 1.8") |
| Weight | 87.3 g (0.2 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Field Of View 2 | D (11.1 mm): 70.6° H (8.45 mm): 56.4° V (7.07 mm): 48.3° |
| Tv Distortion | –0.90% |
