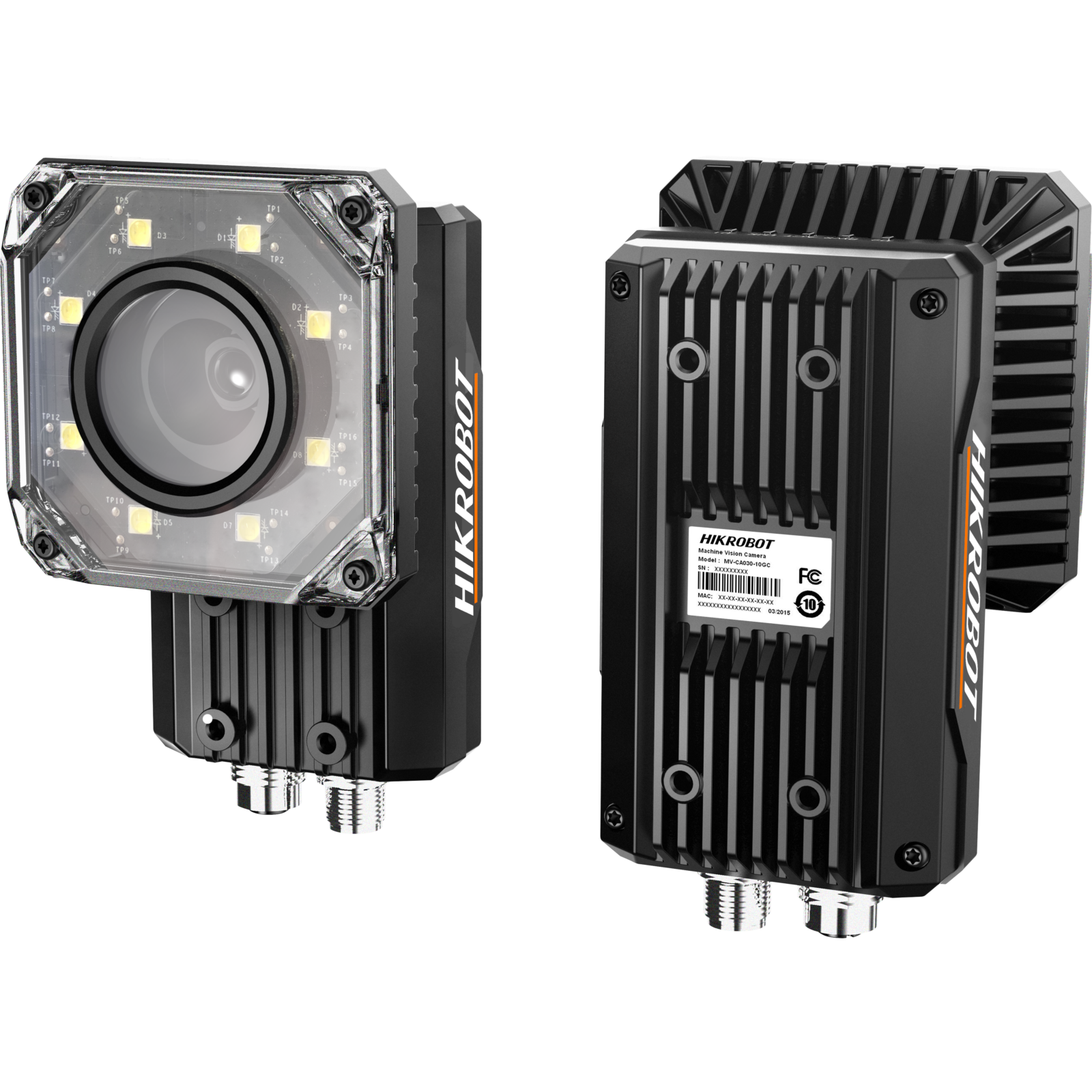

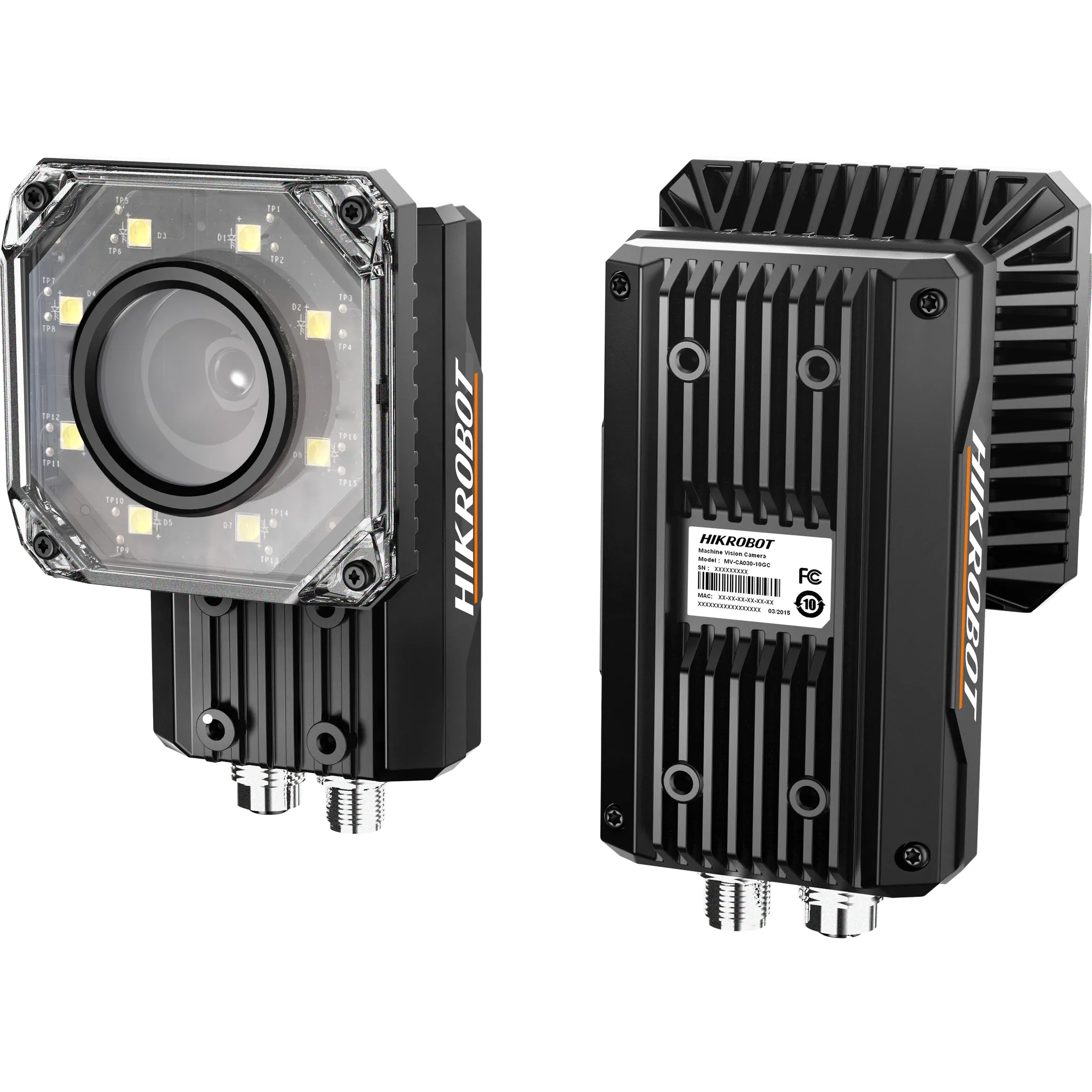

Industrial Code Reader, 16mm Mechanical Autofocus lens 6MP Allfunction
Adopts 6 MP rolling shutter sensor with high performance to provide high-quality images.
Camera Solutions
Beschreibung
A built-in deep-learning algorithm reads codes robustly. Multiple lens-mount options with an optional mechanical autofocus lens. Speaks multiple protocols: TCP, Serial, FTP, PROFINET, EtherNet/IP, MELSEC, and FINS. Controllable light source provides varied lighting. Rated IP67 against dust and water.
Product Highlights
A 6 MP high-performance rolling-shutter sensor delivers high-quality images. — A built-in deep-learning algorithm reads codes robustly. — Multiple lens-mount options with an optional mechanical autofocus lens. — Speaks multiple protocols: TCP, Serial, FTP, PROFINET, EtherNet/IP, MELSEC, and FINS. — Controllable light source provides varied lighting. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-ID5060M-16S-WBN |
|---|---|
| Type | Industrial Code Reader, 16mm Mechanical Autofocus lens 6MP Allfunction |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Max Frame Rate | 30 fps |
| Max Reading Speed | 90 codes/sec |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Exposure Time | 16 μs to 1 sec |
| Gain | 0 dB to 40 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power Supply | 24 VDC |
| Max Power Consumption | 20 W @ 24 VDC (light source is enabled) |
| Focal Length | 16 mm (0.6") |
| Lens Mount | M12-mount, mechanical autofocus lens |
| Light Source | White light. Red, blue, or infrared light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). |
| Dimension | 118.7 mm × 78 mm × 73.2 mm (4.7" × 3.1" × 2.9") |
| Weight | Approx. 520 g (1.1 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (non-condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS, KC |
| Lens Cap | Transparent lens cap. Polarization lens cap is optional. |
