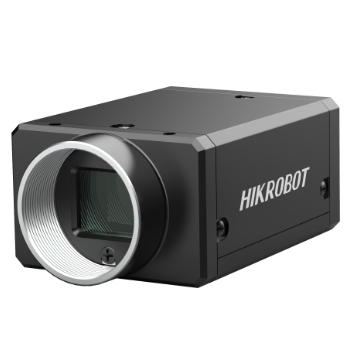

Area Scan Camera, 16MP, GigE
Resolution of 4000 × 4000, pixel size of 3.2 µm × 3.2 µm.
- Resolution of 4000 × 4000 with 3.2 µm × 3.2 µm pixels.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Mounting holes on top and bottom panels for flexible installation.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 16MP, GigE is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH160-60GM. Key data: resolution 4000 × 4000, sensor type CMOS, global shutter, max frame rate 7.25 fps @ 4000 × 4000. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-20GC)
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-21UC)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, BASE (MV-CT0CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, PRO (MV-CT1CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, BASE (MV-CT0MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, MAX (MV-CT2MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, PRO (MV-CT1MG0004/G/NN/NN)
Description
Connects via GigE, with cable runs up to 100 m and no repeater required. Mounting holes on top and bottom panels for flexible installation. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Resolution of 4000 × 4000 with 3.2 µm × 3.2 µm pixels. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Mounting holes on top and bottom panels for flexible installation. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH160-60GM |
|---|---|
| Type | Area Scan Camera, 16MP, GigE |
| Sensor Type | CMOS, global shutter |
| Sensor Model | HK |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 1.1" |
| Resolution | 4000 × 4000 |
| Max Frame Rate | 7.25 fps @ 4000 × 4000 |
| Dynamic Range | 65 dB |
| SNR | 38 dB |
| Gain | 6 dB to 14 dB |
| Exposure Time | 12 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

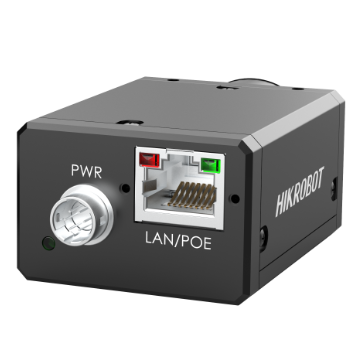

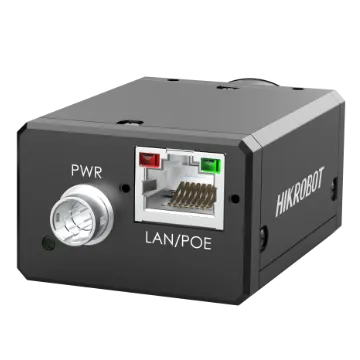

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 26 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.72 W @ 12 VDC |
