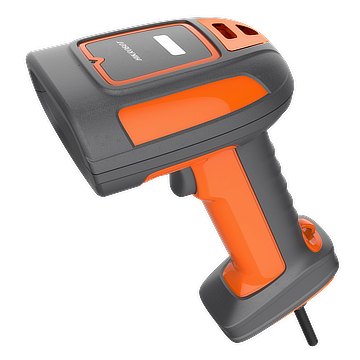

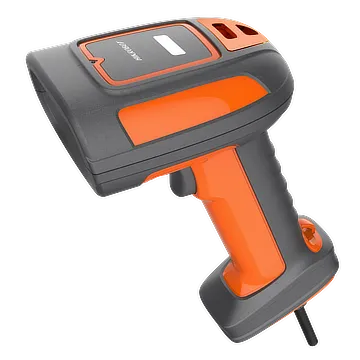

1MP 7mm-NR USB Industrial Handheld Code Reader
Built-in code reading algorithm for decoding different types of codes.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. Its illumination system offers both direct and diffuse-reflection lighting. Components are easy to replace. Rated IP65 and survives a 2.0 m drop.
Product Highlights
Built-in algorithm decodes a range of code types. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — Its illumination system offers both direct and diffuse-reflection lighting. — Components are easy to replace. — Rated IP65 and survives a 2.0 m drop.
Specifications
| Product Model | MV-IDH7000P/10NR/07RN/U |
|---|---|
| Type | 1MP 7mm-NR USB Industrial Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417 |
| Min Accuracy | 3 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 800 |
| Depth Of Field | Code 39 (3 mil): 15 mm to 60 mm Code 39 (5 mil): 5 mm to 80 mm Data Matrix (5 mil): 10 mm to 70 mm Data Matrix (10 mil): 0 mm to 110 mm1 QR Code (5 mil): 10 mm to 70 mm |
| Field Of View | Horizontal 31°, vertical 20° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, USB (HID/CDC), Serial |
| Data Interface | USB 2.0, DC terminal, RS-232 |
| Power Supply | USB 2.0: 5 VDC; DC terminal: 12 VDC |
| Current Consumption | USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical) |
| Focal Length | 6.7 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | Direct lighting: white LED Diffused reflection lighting: red LED |
| Aiming System | Cross laser aiming |
| Dimension | 73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0") |
| Weight | Approx. 460 g (1.0 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Drop Height | 2.0 m |
