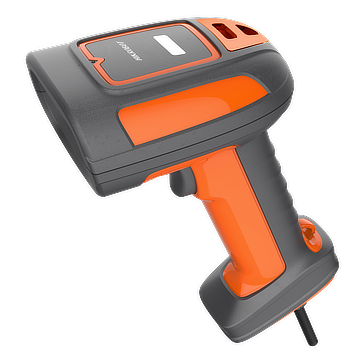

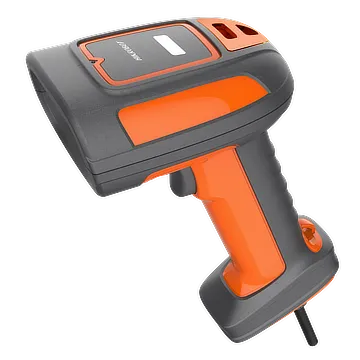

1MP 7mm-SR Lan Industrial Handheld Code Reader

Name: 1MP 7mm-SR Lan Industrial Handheld Code Reader
Brand: HIKROBOT
SKU: MV-IDH7000P/10SR/07RN/L

Built-in code reading algorithm for decoding different types of codes.

Send inquiry

Download datasheet (PDF)

Highlights

Built-in algorithm decodes a range of code types.
Reads reliably even with spots, defects, or low contrast.
Continuous and batch reading modes raise throughput.
Its illumination system offers both direct and diffuse-reflection lighting.
Components are easy to replace.
Rated IP65 and survives a 2.0 m drop.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH7000P/10SR/07RN/L Category: Handheld Code Reader

1MP 7mm-SR Lan Industrial Handheld Code Reader is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH7000P/10SR/07RN/L. Key data: min accuracy 3 mil, ingress protection IP65. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. Its illumination system offers both direct and diffuse-reflection lighting. Components are easy to replace. Rated IP65 and survives a 2.0 m drop.

1MP 7mm-SR Lan Industrial Handheld Code Reader (MV-IDH7000P/10SR/07RN/L) at a glance: 1280 × 800 resolution, IP65 protection and weighs 460 g (1.0 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Built-in algorithm decodes a range of code types. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — Its illumination system offers both direct and diffuse-reflection lighting. — Components are easy to replace. — Rated IP65 and survives a 2.0 m drop.

Specifications

Product Model	MV-IDH7000P/10SR/07RN/L
Type	1MP 7mm-SR Lan Industrial Handheld Code Reader
Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417
Min Accuracy	3 mil
Sensor Type	CMOS
Resolution	1280 × 800
Depth Of Field	Code 39 (5 mil): 30 mm to 200 mm Code 128 (3 mil): 55 mm to 110 mm Code 128 (20 mil): 56 mm to 660 mm Data Matrix (10 mil): 20 mm to 220 mm QR Code (10 mil): 20 mm to 220 mm QR Code (20 mil): 10 mm to 450 mm
Field Of View	Horizontal 31°, vertical 20°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	SmartSDK, TCP Client, TCP Server, FTP, Profinet, Ethernet/IP, Modbus, UDP, Serial, FINS, Melsec/SLMP
Data Interface	Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Power Supply	12 VDC
Current Consumption	0.5 A (max.), 0.28 A (typical)
Focal Length	6.7 mm
Ambient Illumination	0 lux to 100000 lux
Light Source	Direct lighting: white LED Diffused reflection lighting: red LED
Aiming System	Cross laser aiming
Dimension	73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0")
Weight	Approx. 460 g (1.0 lb.)
Ingress Protection	IP65
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% RH to 95% RH (no condensation)
Laser Safety Class	Laser 2
Wavelength	650 nm
Pulse Width	8 ms
Maximum Power	1 mW
Client Software	IDMVS
Certification	CE, KC
Drop Height	2.0 m
