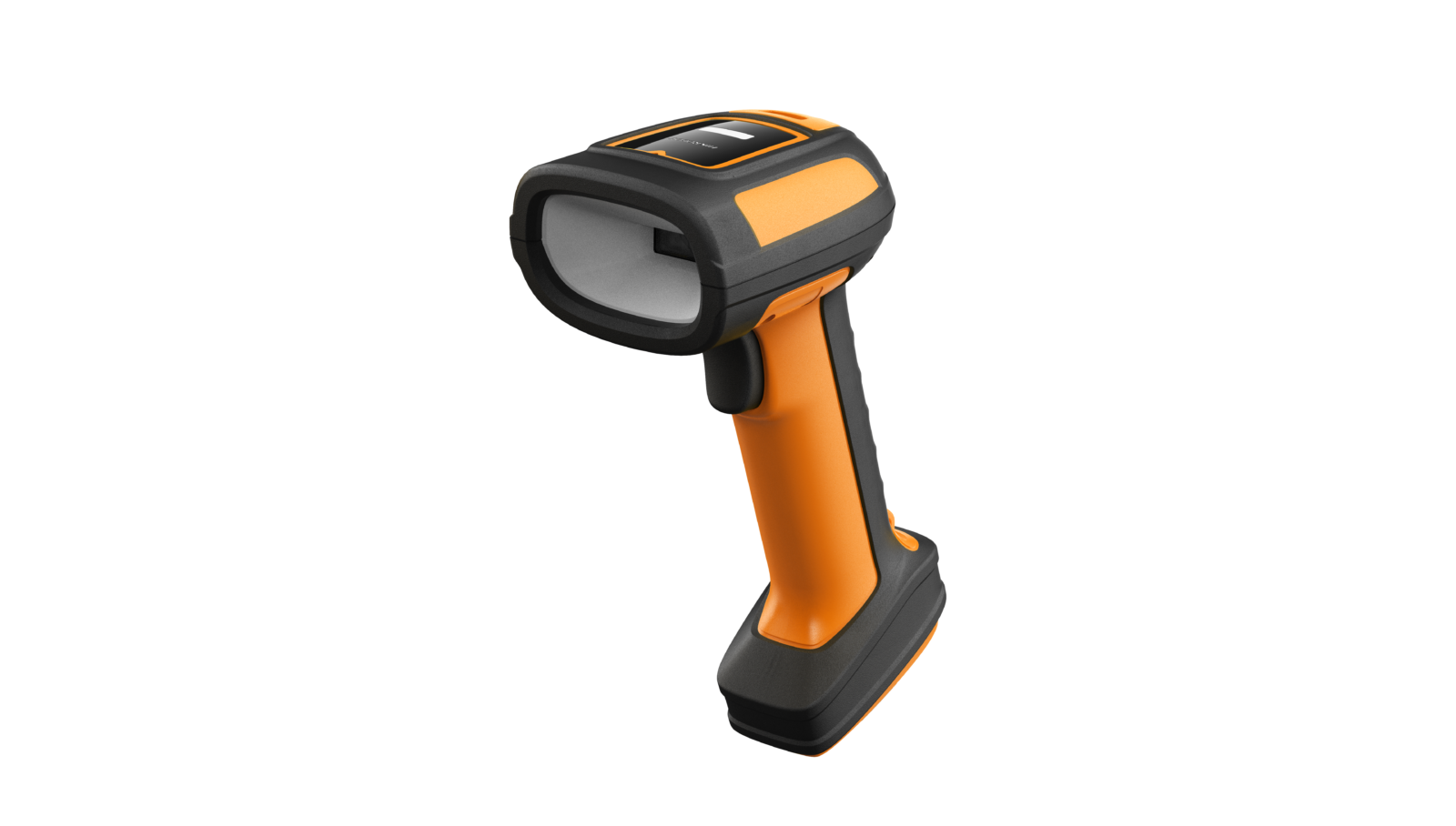

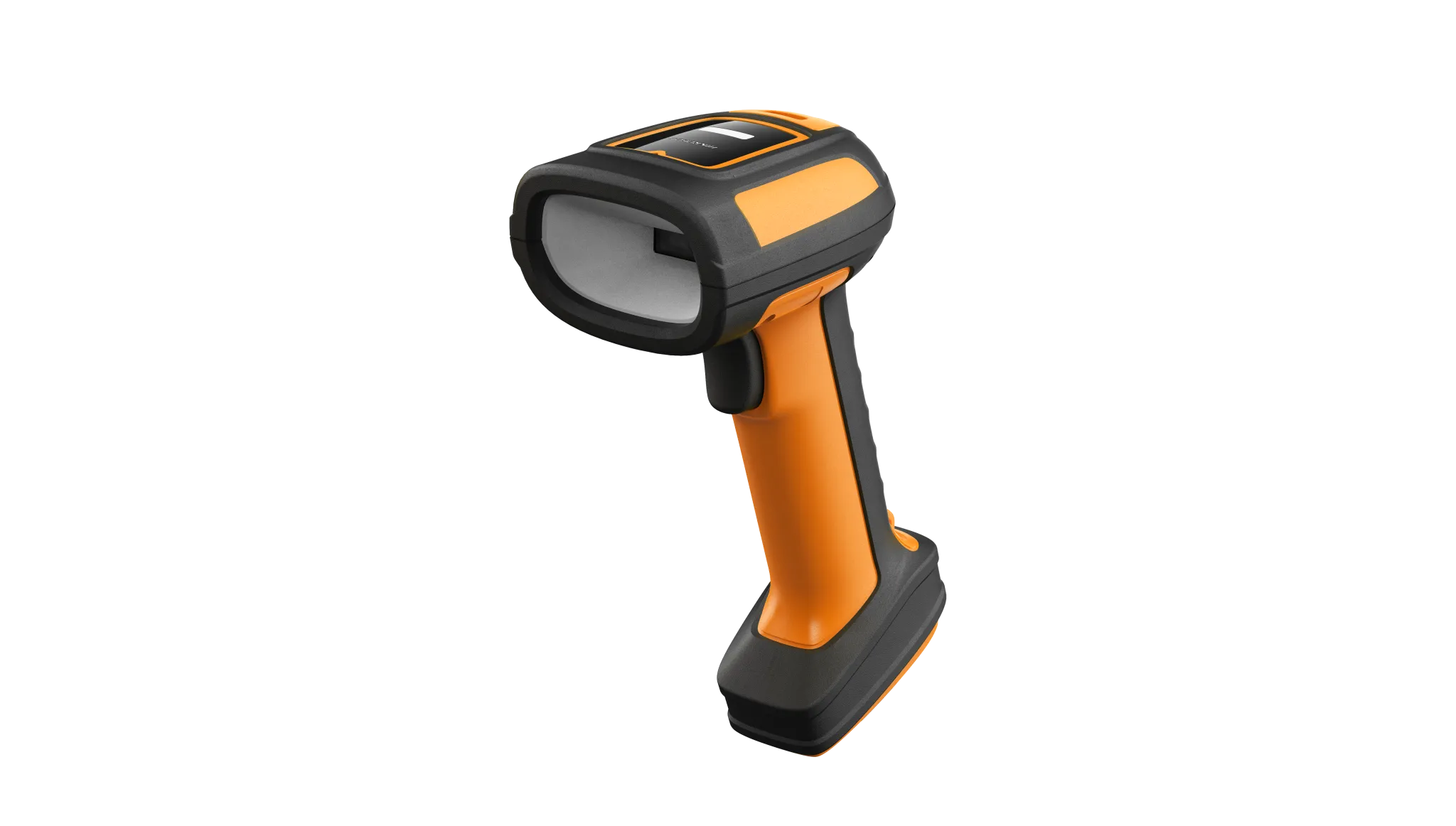

1MP 7mm wireless Industrial Handheld Code Reader（No Base）
Built-in code reading algorithm for decoding different types of 1D and 2D codes.
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Bluetooth 5.0 enables convenient wireless operation. Smart bases allow parameter setup and device management through the IDMVS client software. A 3150 mAh battery delivers long operating time. Its illumination system offers both direct and diffuse-reflection lighting. Rated IP65 and survives a 2.0 m drop.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Bluetooth 5.0 enables convenient wireless operation. — Smart bases allow parameter setup and device management through the IDMVS client software. — A 3150 mAh battery delivers long operating time. — Its illumination system offers both direct and diffuse-reflection lighting. — Rated IP65 and survives a 2.0 m drop.
Specifications
| Product Model | MV-IDH7000B/10NR/07RN |
|---|---|
| Type | 1MP 7mm wireless Industrial Handheld Code Reader（No Base） |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417 |
| Min Accuracy | 3 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 800 |
| Depth Of Field | Code 39 (3 mil): 15 mm to 60 mm Code 39 (5 mil): 5 mm to 80 mm Data Matrix (5 mil): 10 mm to 70 mm Data Matrix (10 mil): 0 mm to 110 mm1 QR Code (5 mil): 10 mm to 70 mm |
| Field Of View | Horizontal 31°, vertical 20° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | Network-interface device: SmartSDK, TCP Client, FTP, TCP Server, Profinet, Ethernet/IP, Modbus, UDP, Serial, Bluetooth, FINS, Melsec/SLMP USB-interface device: SmartSDK, USB (HID/CDC), Bluetooth |
| Data Interface | Network-interface device: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB-interface device: USB 2.0, RS-232, DC terminal3 |
| Power Supply | Network-interface device: 12 VDC USB-interface device: USB: 5 VDC, DC terminal: 12 VDC |
| Current Consumption | Network-interface device: 0.7 A (max.), 0.06 A (during standby) USB-interface device: USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby) |
| Focal Length | 6.7 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | Direct lighting: white LED Diffused reflection lighting: red LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 73.4 mm × 104 mm × 215.2 mm (2.9" × 4.1" × 8.5") |
| Weight | Approx. 410 g (0.9 lb.) |
| Ingress Protection | IP40 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Communication Mode | Bluetooth BT 5.0, BLE |
| Wireless Range | 100 m (open range) |
| Battery | 3150 mAh |
| Charging Time | Network-interface device: 4 h USB-interface device: Adapter: 4 h, USB: 8 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Drop Height | 2.0 m |
