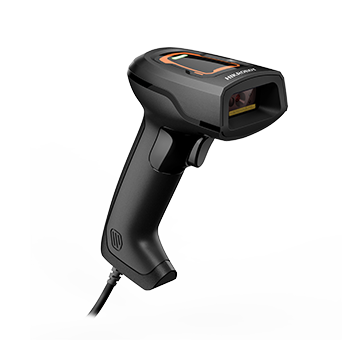

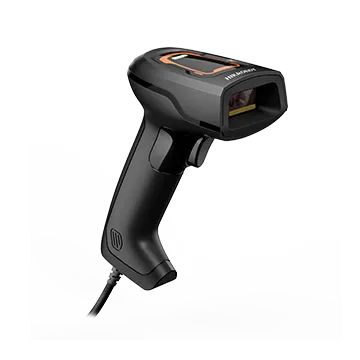

Industial Wired Handheld Code Reader
Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Reads reliably even with spots, defects, or low contrast. Multiple output modes including USB-HID, USB-CDC, and RS-232. Components are easy to replace. Rated IP42 and survives a 1.8 m drop. Buzzer and indicator display device status.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Multiple output modes including USB-HID, USB-CDC, and RS-232. — Components are easy to replace. — Rated IP42 and survives a 1.8 m drop. — Buzzer and indicator display device status.
Specifications
| Product Model | MV-IDH2000/13NR/05WN/U |
|---|---|
| Type | Industial Wired Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min Accuracy | 1D codes: 3 mil 2D codes: 4 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm |
| Field Of View | Horizontal 39°, vertical 29° |
| Detection Angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, Serial, USB (HID/CDC) |
| Data Interface | USB 2.0 |
| Power Supply | 5 VDC |
| Current Consumption | 0.9 A (max.), 0.5 A (typical) |
| Focal Length | 4.9 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | White LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress Protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
