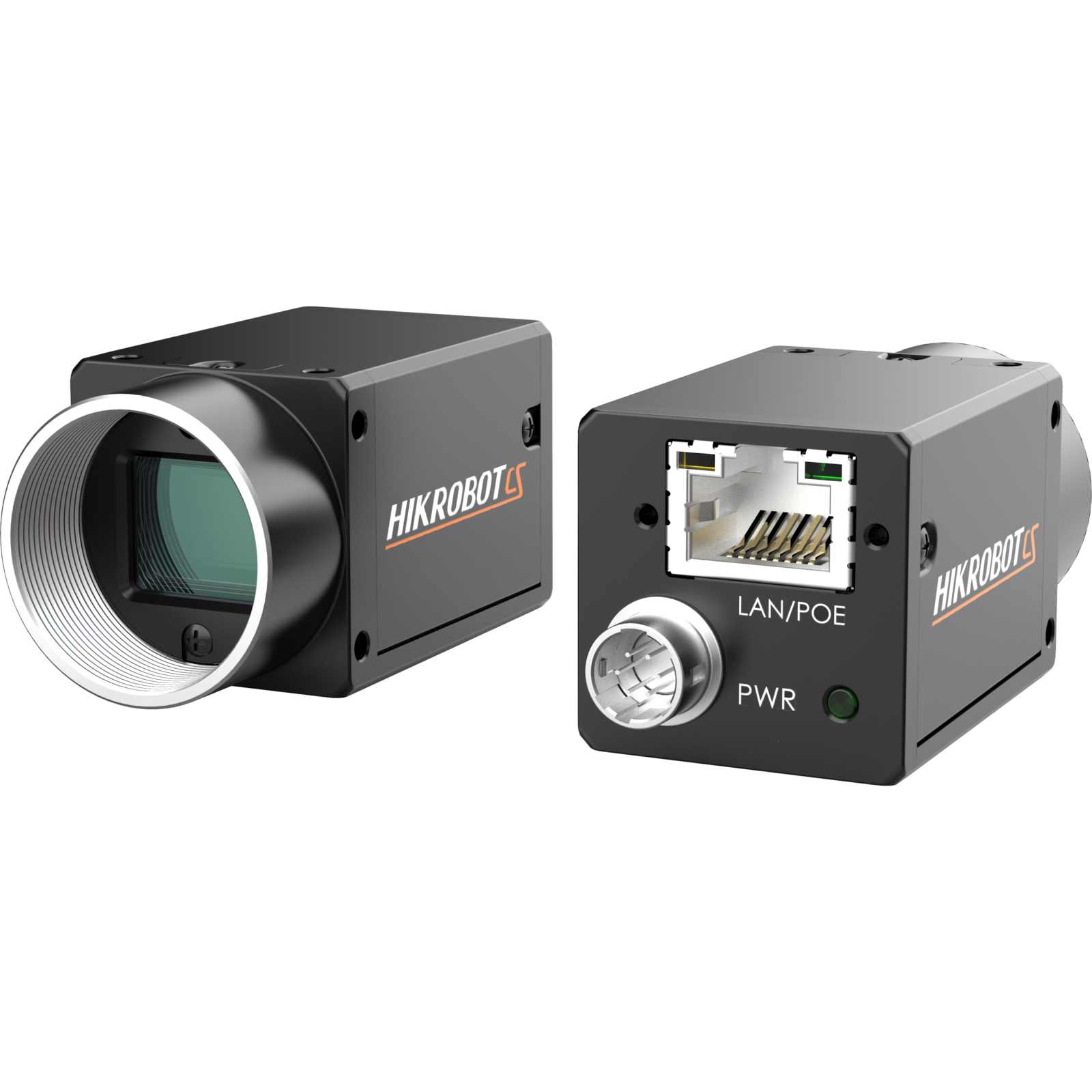

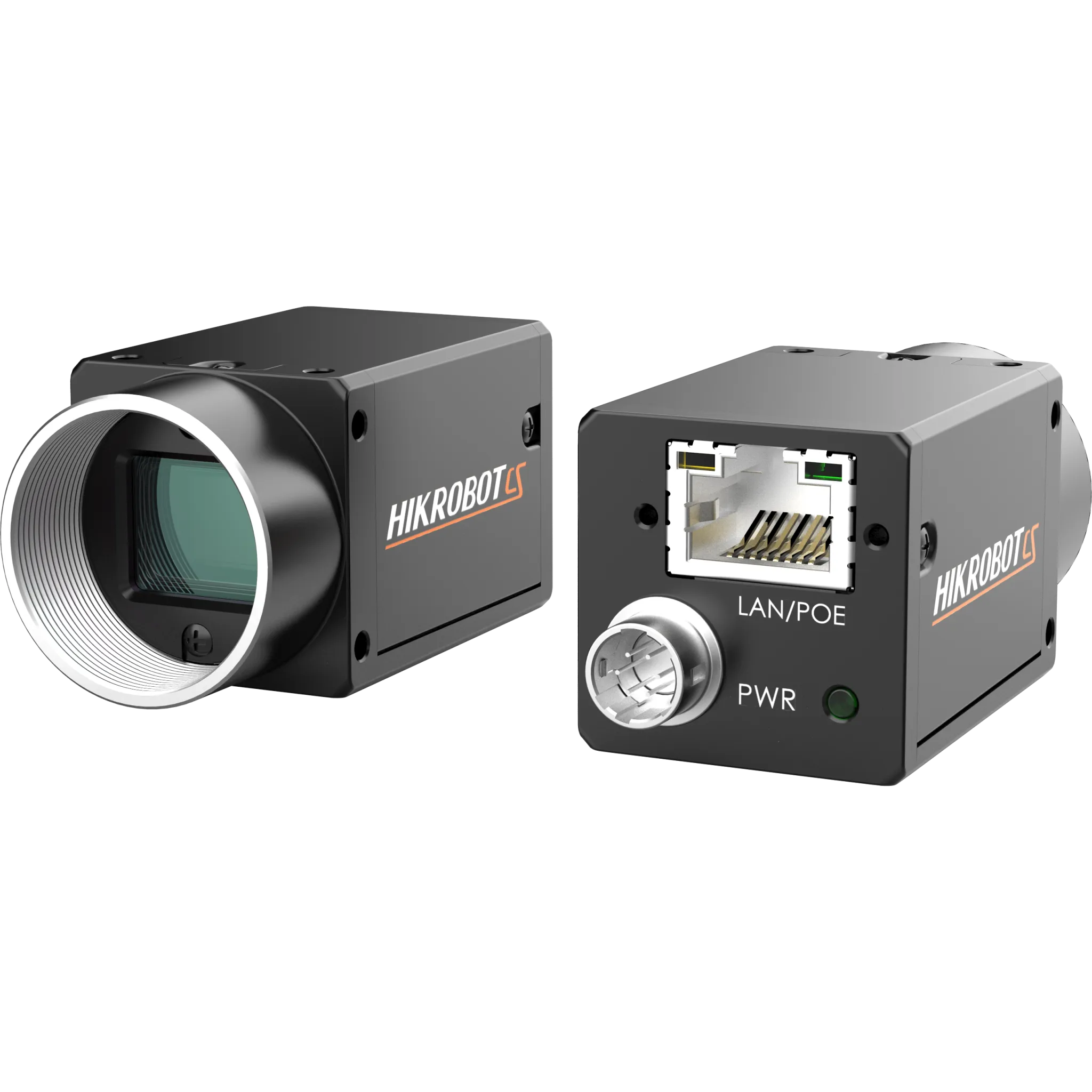

Area Scan Camera, 2.3MP, GigE, IMX249, 2nd Generation, Mono
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Compact body with panel mounting holes on four sides for flexible setup.
- Offers auto or manual gain, exposure, LUT, and gamma correction.
- Supports hardware trigger, software trigger, and free-run modes.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 2.3MP, GigE, IMX249, 2nd Generation, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS023-10GM. Key data: resolution 1920 × 1200, sensor type CMOS, global shutter, max frame rate 41 fps @1920 × 1200 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Compact body with panel mounting holes on four sides for flexible setup. Offers auto or manual gain, exposure, LUT, and gamma correction. Supports hardware trigger, software trigger, and free-run modes. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Redesigned for lower power consumption. — Compact body with panel mounting holes on four sides for flexible setup. — Offers auto or manual gain, exposure, LUT, and gamma correction. — Supports hardware trigger, software trigger, and free-run modes. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CS023-10GM |
|---|---|
| Type | Area Scan Camera, 2.3MP, GigE, IMX249, 2nd Generation, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX249 |
| Pixel Size | 5.86 μm × 5.86 μm |
| Sensor Size | 1/1.2" |
| Resolution | 1920 × 1200 |
| Max Frame Rate | 41 fps @1920 × 1200 Mono 8 |
| Dynamic Range | 72.6 dB |
| SNR | 44.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 2.2 W@12 VDC |
