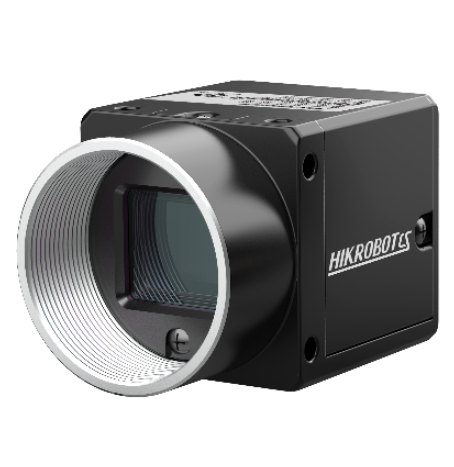

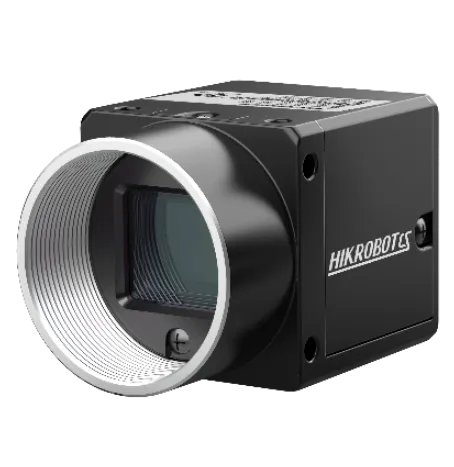

Area Scan Camera, 2.3MP, USB3.0, Mono
Adopts brand new design to reduce power consumption.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports Sequencer and passive transmission. Colour models support white balance, CCM, Super Palette, and Super Bayer. Supports hardware trigger, software trigger, and anyway mode. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Supports Sequencer and passive transmission. — Colour models support white balance, CCM, Super Palette, and Super Bayer. — Supports hardware trigger, software trigger, and anyway mode. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS023-10UM |
|---|---|
| Type | Area Scan Camera, 2.3MP, USB3.0, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX249 |
| Pixel Size | 5.86 μm × 5.86 μm |
| Sensor Size | 1/1.2" |
| Resolution | 1920 × 1200 |
| Max Frame Rate | 41 fps @ 1920 × 1200 Mono 8 |
| Dynamic Range | 70 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |

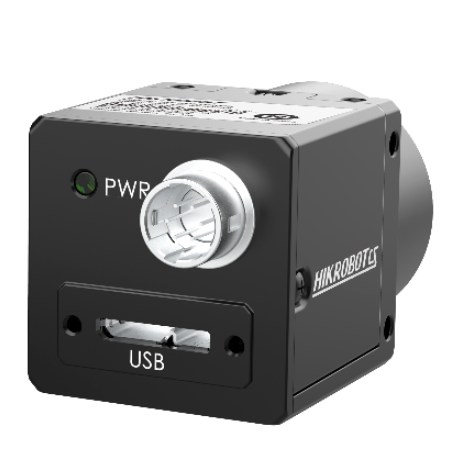

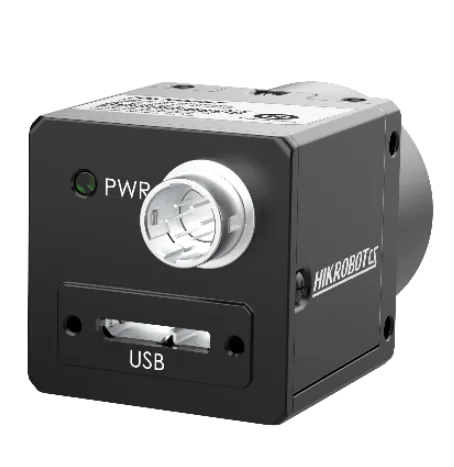

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 78 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 1.5 W @ 5 VDC (USB 3.0 provides power supply) |
