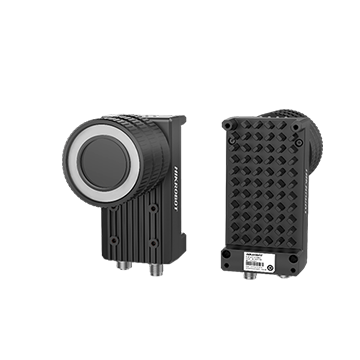

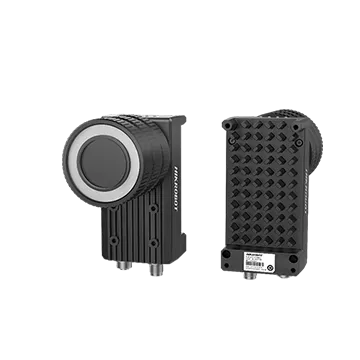

Logistic Code Reader, 20MP

Name: Logistic Code Reader, 20MP
Brand: HIKROBOT
SKU: MV-ID6200M-00C-NNG

Provides 20 MP resolution to cover a larger field of view.

Send inquiry

Download datasheet (PDF)

Highlights

20 MP resolution for a larger field of view.
Deep-learning algorithm reliably reads codes with poor print quality.
Reads multiple codes simultaneously within the field of view.
Gigabit Ethernet output for image transmission.
Multi-device networking via code-reading platform.
Rated IP67 against dust and water.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID6200M-00C-NNG Category: Fixed Code Reader

Logistic Code Reader, 20MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID6200M-00C-NNG. Key data: max reading speed 60 codes/sec, resolution 5440 × 3648, data interface Gigabit Ethernet. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Logistic Code Reader, 20MP (MV-ID6200EM-00C-NNG)

Description

Description

Deep-learning algorithm reliably reads codes with poor print quality. Reads multiple codes simultaneously within the field of view. Gigabit Ethernet output for image transmission. Multi-device networking via code-reading platform. Rated IP67 against dust and water.

Logistic Code Reader, 20MP (MV-ID6200M-00C-NNG) at a glance: 5440 × 3648 resolution, Mono sensor, up to 20 fps, Gigabit Ethernet interface, 126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5") housing and weighs 750 g (1.7 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

20 MP resolution for a larger field of view. — Deep-learning algorithm reliably reads codes with poor print quality. — Reads multiple codes simultaneously within the field of view. — Gigabit Ethernet output for image transmission. — Multi-device networking via code-reading platform. — Rated IP67 against dust and water.

Specifications

Product Model	MV-ID6200M-00C-NNG
Type	Logistic Code Reader, 20MP
Symbologies	1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14 2-dimensional codes: QR Code, Data Matrix
Max Frame Rate	20 fps
Max Reading Speed	60 codes/sec
Sensor Type	CMOS, rolling shutter
Pixel Size	2.4 μm × 2.4 μm
Sensor Size	1"
Resolution	5440 × 3648
Exposure Time	16 μs to 0.5 sec
Gain	0 dB to 40 dB
Mono Color	Mono
Communication Protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP
Data Interface	Gigabit Ethernet
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power Supply	12 VDC to 24 VDC
Max Power Consumption	12 W@24 VDC
Lens Mount	C-mount
Light Source	Not included
Dimension	126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5")
Weight	Approx. 750 g (1.7 lb.)
Ingress Protection	IP67 ( under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 95% RH, non-condensing
Client Software	IDMVS
Certification	CE, RoHS
Lens Cap	Included
