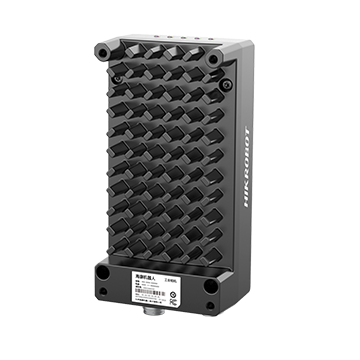

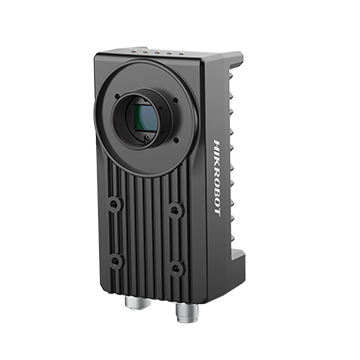

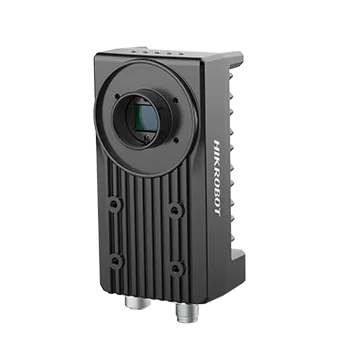

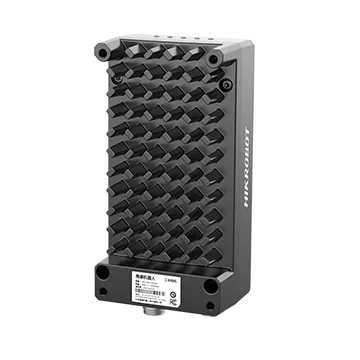

Logistic Code Reader, 20MP

Name: Logistic Code Reader, 20MP
Brand: HIKROBOT
SKU: MV-ID6200EM-00C-NNG

Built-in deep learning algorithm to read codes with good robustness.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in deep-learning algorithm reads codes robustly.
CMOS sensor with 5K horizontal resolution covering a 1 m conveyor-line FOV.
Rapid multi-code recognition across a large FOV.
Multi-device networking for large-scale deployments.
Flexible installation with easy commissioning.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID6200EM-00C-NNG Category: Fixed Code Reader

Logistic Code Reader, 20MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID6200EM-00C-NNG. Key data: max reading speed 36 codes/sec, resolution 5440 × 3648, data interface Gigabit Ethernet (1000 Mbit/s), ingress protection IP64. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Logistic Code Reader, 20MP (MV-ID6200M-00C-NNG)

Description

Description

CMOS sensor with 5K horizontal resolution covering a 1 m conveyor-line FOV. Rapid multi-code recognition across a large FOV. Multi-device networking for large-scale deployments. Flexible installation with easy commissioning.

Logistic Code Reader, 20MP (MV-ID6200EM-00C-NNG) at a glance: 5440 × 3648 resolution, Mono sensor, up to 12 fps, Gigabit Ethernet (1000 Mbit/s) interface, 126 mm × 66 mm × 55.3 mm (5.0" × 2.6" × 2.2") housing and weighs 550 g (1.2 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in deep-learning algorithm reads codes robustly. — CMOS sensor with 5K horizontal resolution covering a 1 m conveyor-line FOV. — Rapid multi-code recognition across a large FOV. — Multi-device networking for large-scale deployments. — Flexible installation with easy commissioning.

Specifications

Product Model	MV-ID6200EM-00C-NNG
Type	Logistic Code Reader, 20MP
Symbologies	1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix
Max Frame Rate	12 fps
Max Reading Speed	36 codes/sec
Sensor Type	CMOS, rolling shutter
Pixel Size	2.4 μm × 2.4 μm
Sensor Size	1"
Resolution	5440 × 3648
Exposure Time	16 μs to 500 ms
Gain	0 dB to 40 dB
Mono Color	Mono
Communication Protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP
Data Interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
Power Supply	12 VDC to 24 VDC
Max Power Consumption	12 W @ 24 VDC
Lens Mount	C-mount
Light Source	Not included
Dimension	126 mm × 66 mm × 55.3 mm (5.0" × 2.6" × 2.2")
Weight	Approx. 550 g (1.2 lb.)
Ingress Protection	IP64
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	IDMVS
Certification	CE, RoHS
Lens Cap	Not included
