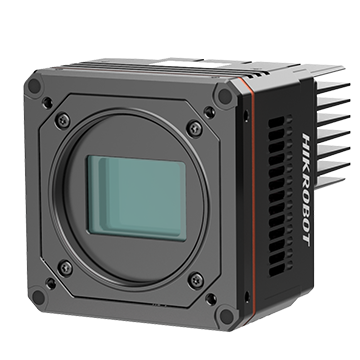

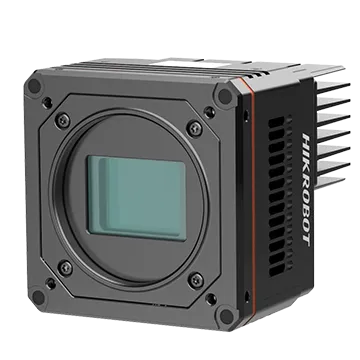

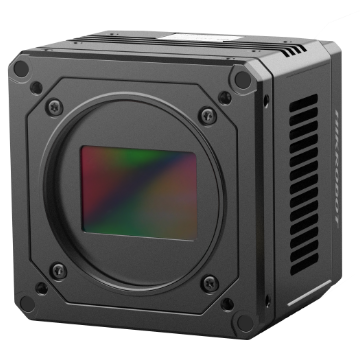

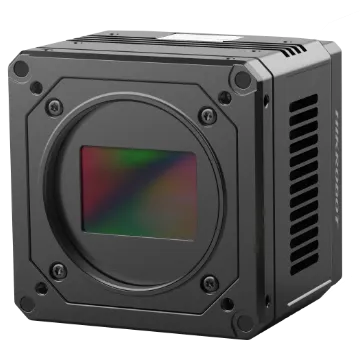

Area Scan Camera, 21MP, Gsprint4521, CXP-12, M58-mount, Fanless, Mono
Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Supports LSC Sequencer polling. Fanless, low-power design. Transmits data over a CXP-12 interface. Works with the CoaXPress protocol and the GenICam standard.
Product Highlights
Resolution of 5120 × 4096 with 4.5 µm × 4.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Supports LSC Sequencer polling. — Fanless, low-power design. — Transmits data over a CXP-12 interface. — Works with the CoaXPress protocol and the GenICam standard.
Specifications
| Product Model | MV-CH210-90YM-M58S-NN |
|---|---|
| Type | Area Scan Camera, 21MP, Gsprint4521, CXP-12, M58-mount, Fanless, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel Gsprint4521 |
| Pixel Size | 4.5 μm × 4.5 μm |
| Sensor Size | 23.04 mm × 18.43 mm |
| Resolution | 5120 × 4096 |
| Max Frame Rate | 222 fps @ 5120 × 4096 Mono 8 |
| Dynamic Range | 65 dB |
| SNR | 43 dB |
| Gain | 1.0 ×, 2.0 ×, 4.0 × |
| Exposure Time | 4 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Lens Mount | M58*0.75 |
| Dimension | With fan: 84 mm × 84 mm × 75 mm (3.3" × 3.3" × 3.0") Without fan: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6") |
| Weight | With fan: Approx. 790 g (1.7 lb.) Without fan: Approx. 650 g (1.4 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 18 W @ 24 VDC |
